RosenbergerHSD®
Ürün Kodu ZBL7QU

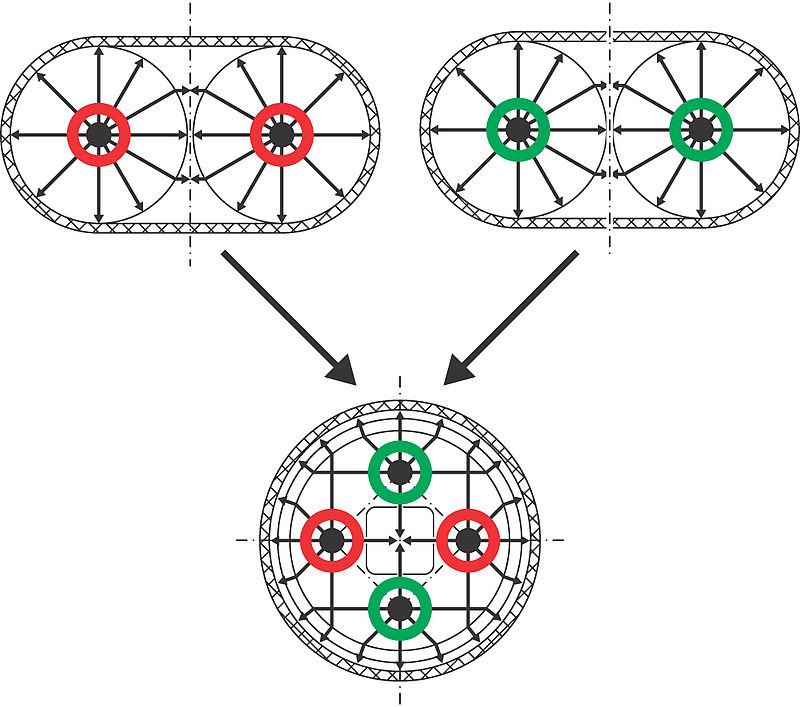

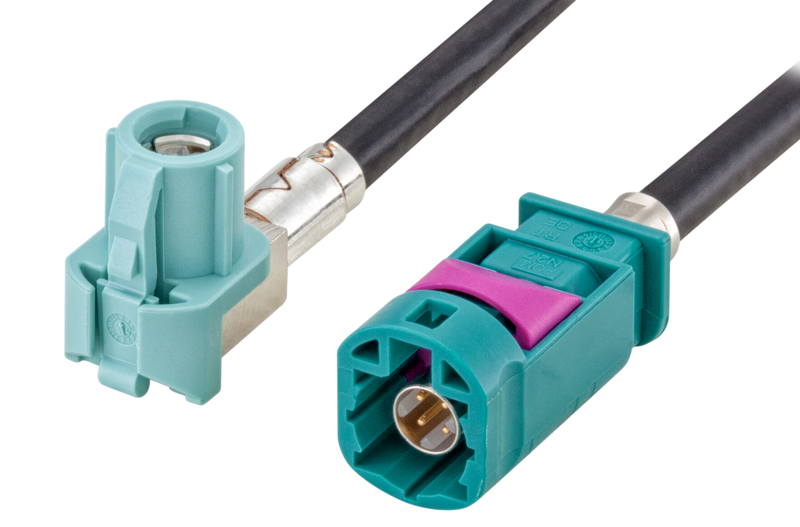

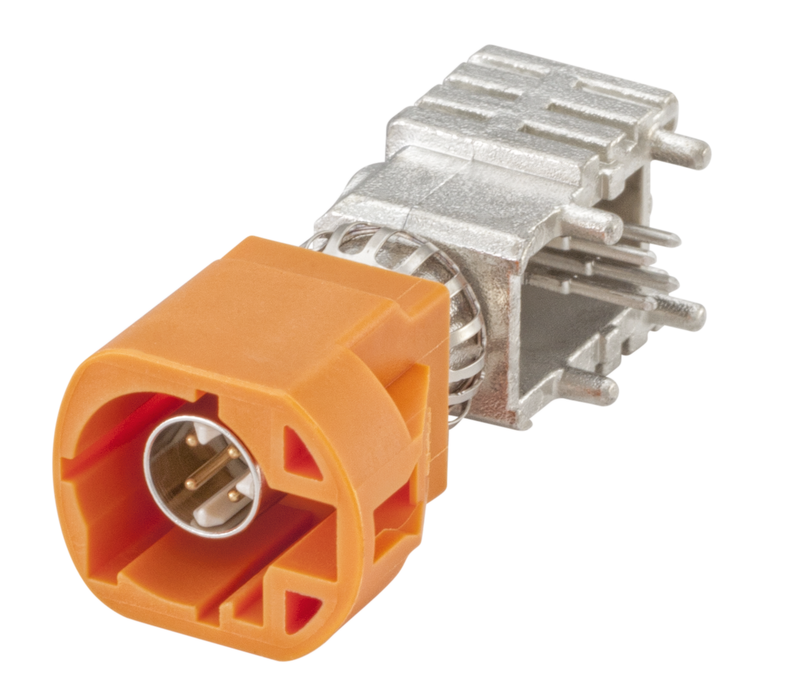

RosenbergerHSD® is a homogeneous impedance-controlled interconnect system which directly addresses the high-speed data, low-voltage requirements of real-time automotive industry applications. Extremely compact and durable this 100 Ohm fully shielded interconnect system utilizes shielded twisted quad cables and features mechanical keying and latching for high connection retention, as well as coding to avoid misuse. Furthermore, these precision manufactured RosenbergerHSD®SF variants are ideally suited for process-safe and fully automated assembly by harness makers, facilitating a significant reduction in costs. Its high data throughput performance while also preventing interference from crosstalk and external sources makes the RosenbergerHSD® cable and PCB connector system the perfect choice for LVDS cameras, USB connections and IEEE 1394 applications. In addition, it is well-suited to many other applications including those found in digital infotainment electronics and digital symmetrical networks – even radio base stations.
- Impedance 100 Ohm
- Interface and specification according RosenbergerHSD®
- Frequency range DC up to 6 GHz
- High data rates up to 8 Gbps
- Return loss ≥ 20 dB, DC to 1 GHz; ≥ 17 dB, 1 GHz to 2 GHz
- Temperature range from -40 °C to +105 °C
- Mating cycles ≥ 25
- Mating cycles waterproof ≥ 5
- Different mechanical and colored codings and one neutral coding
- Primary and secondary lock
- High cable retention force
- Stamped parts on separate coils (center contact, support sleeve, connector head plug)
BENZER ÜRÜNLER
Rosenberger high-mating cycle products for applications requiring a robust user interface and extremely high mating cycles up to 100,000 connections. Industrial and consumer applications often require a robust user interface for the connection between a special power supply and the device. In such cases Rosenberger high-mating cycle products are the first choice and are available in standard and customized versions.
Ürün Başarıyla Sepete Eklendi
PreCONNECT® STANDARD products are a holistic structured fiber optic cabling solution. In 1991 Rosenberger OSI introduced already high fiber factory assembled fiber optic trunk cables to the market. PreCONNECT® STANDARD was the first high fiber modular Plug & Play fiber optic cabling system developed and manufactured in Europe for the fields of application in data centers, office and campus buildings.
Ürün Başarıyla Sepete Eklendi
Based on the SMA connector standard, Rosenberger QMA connectors are designed for applications up to 18 GHz. The quick-lock mechanism enables easy and reliable connections in the tightest of spaces – primarily in mobile base stations – and 10 times faster compared to SMA offerings. Packing density is also superior to SMA due to the minimum pitch and toolless connection, dispensing with the need for torque spanners for fastening coupling nuts. Rosenberger offers QMA as standard version and with plastic quick-lock mechanisms in four different color codings. QMA is not intermateable with SMA.
Ürün Başarıyla Sepete Eklendi
The 3-pole HVR®260 connector system for collective shield applications is used to connect electric motors up to a continuous current of 270 A. Despite its lightweight aluminum housing it is capable of operating safely at extreme temperature ranges from -40 °C to +150 °C. It is certified to vibration severity level IV. Customer-specific variants are available on request.
Ürün Başarıyla Sepete Eklendi
