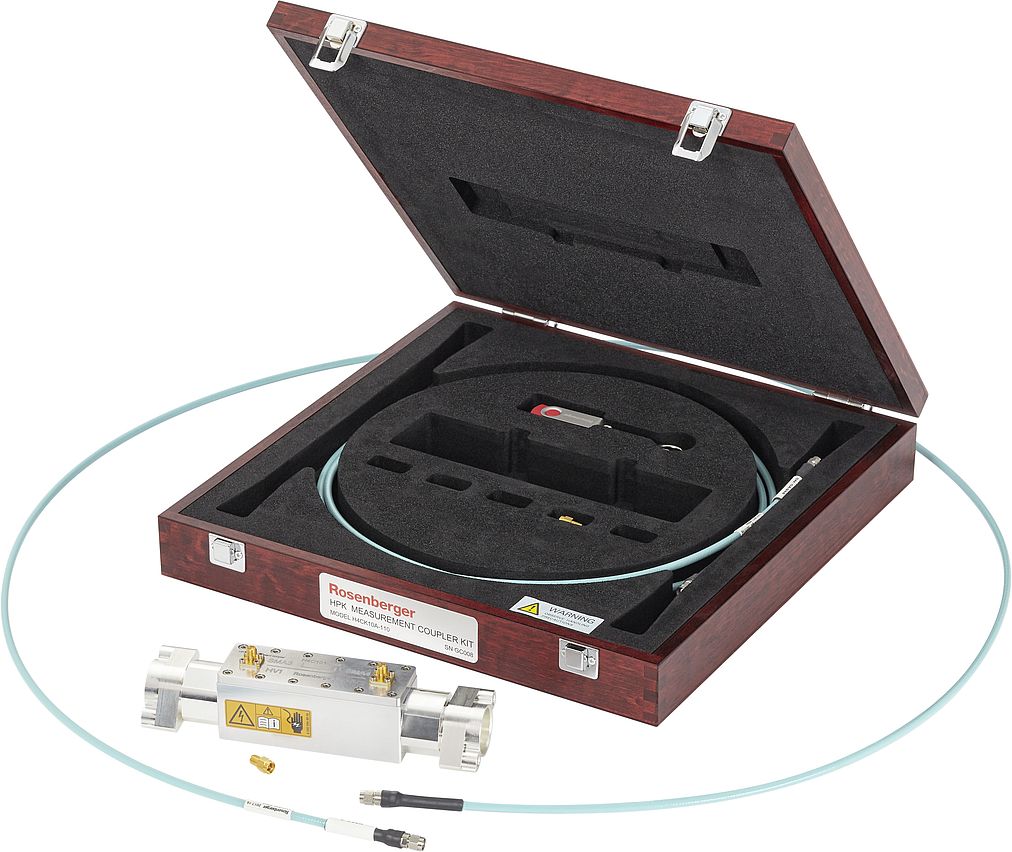

HPK

Constantly increasing bandwidth requirements in all areas of communication and computing are placing ever greater demands on networking I/O equipment. Current edge-mount copper or fiber interfaces are at their limits even over the short distances on the PCB. Embedded parallel optics have become the solution of choice to meet these demands. High-performance routers, switches and computers have already been utilizing this technology for a decade. Parallel optic solutions are currently used in a wide range of applications: in links between nodes of supercomputers, switches in international Internet gateways as well as in data centers and central offices. Embedded opto-electrical modules and optical engines utilize parallel-optics transmitter and receiver arrays. For optimum signal integrity, thermal management, I/O consolidation and EMI/ESD, the opto-electrical modules are directly mounted close to the processors at the PCB. Parallel-optic links can complement electronic signalling in parallel lanes such as XAUI and PCIe. Using PRIZM® Light Turn®, it is possible to implement a passive plug connection between the opto-electrical modules and the fiber optic network.

Rosenberger provides SMA, BNC and TNC reverse polarity connectors. These coaxial connectors are non-standardized versions, offering interfaces similar to the standard but with center contacts and dielectricum reversed; for use with W-LAN routers when safeguarding against the possibility of incorrect component connection.

RosenbergerHSD® is a homogeneous impedance-controlled interconnect system which directly addresses the high-speed data, low-voltage requirements of real-time automotive industry applications. Extremely compact and durable this 100 Ohm fully shielded interconnect system utilizes shielded twisted quad cables and features mechanical keying and latching for high connection retention, as well as coding to avoid misuse. Furthermore, these precision manufactured RosenbergerHSD®SF variants are ideally suited for process-safe and fully automated assembly by harness makers, facilitating a significant reduction in costs. Its high data throughput performance while also preventing interference from crosstalk and external sources makes the RosenbergerHSD® cable and PCB connector system the perfect choice for LVDS cameras, USB connections and IEEE 1394 applications. In addition, it is well-suited to many other applications including those found in digital infotainment electronics and digital symmetrical networks – even radio base stations.

Rosenberger SMB subminiature coaxial connectors suit various applications up to 4 GHz. The snap-on locking mechanism provides a fast and reliable connection for high packing density applications. These versatile connectors can be used in internal devices and cable assemblies. Please note: Rosenberger defines male – female according to the design of center contact.
