P-SMP
Ürün Kodu ETVSMD

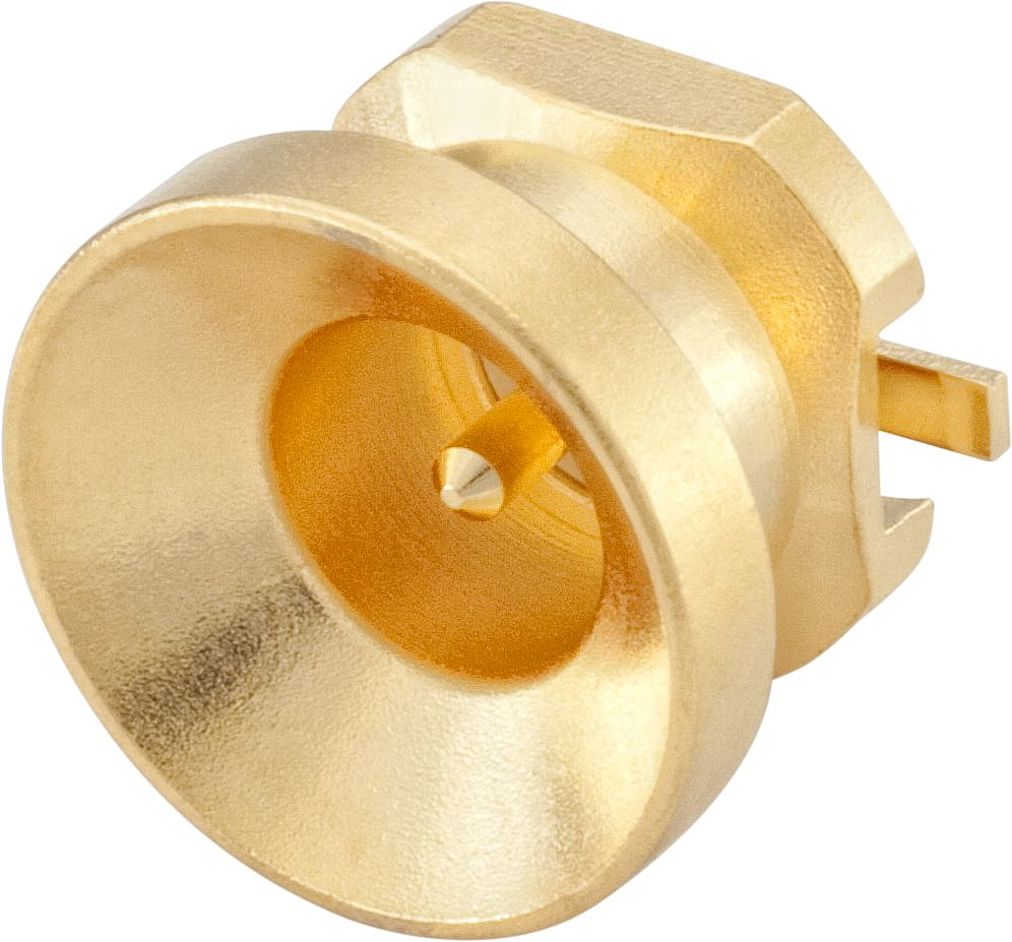

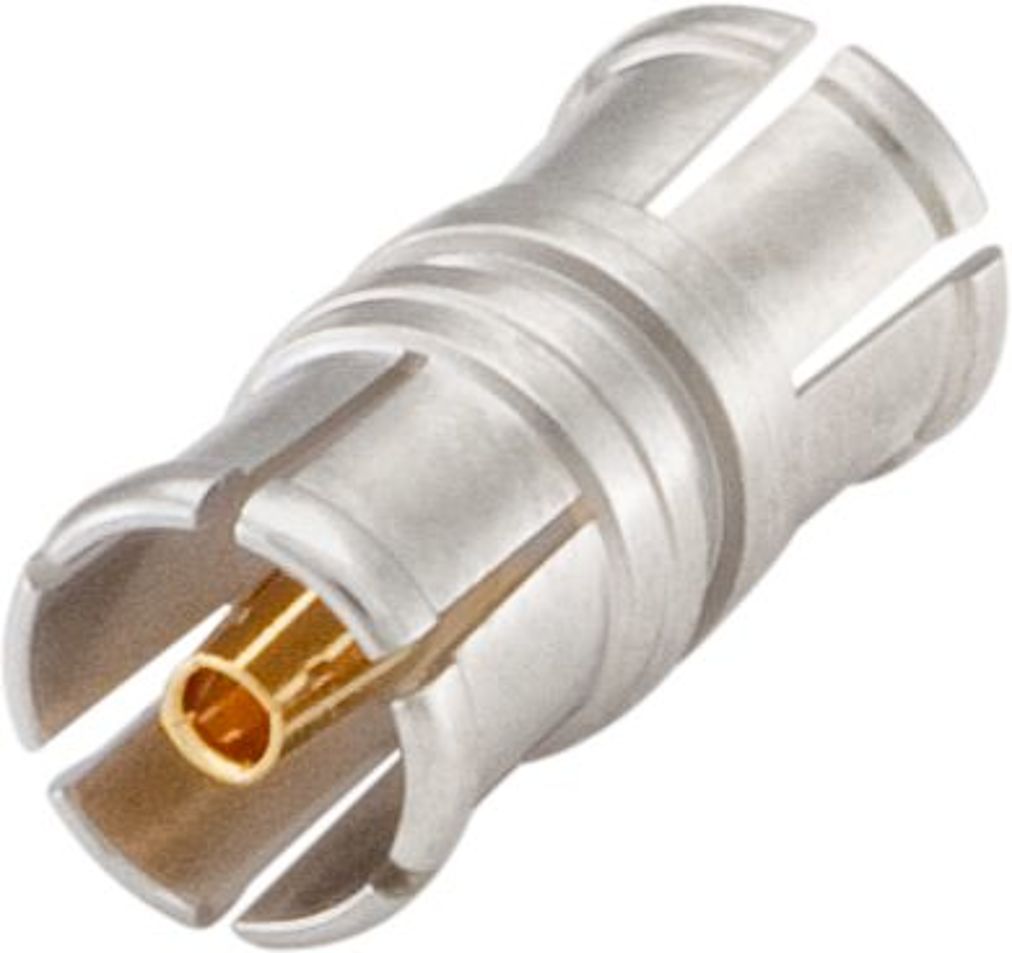

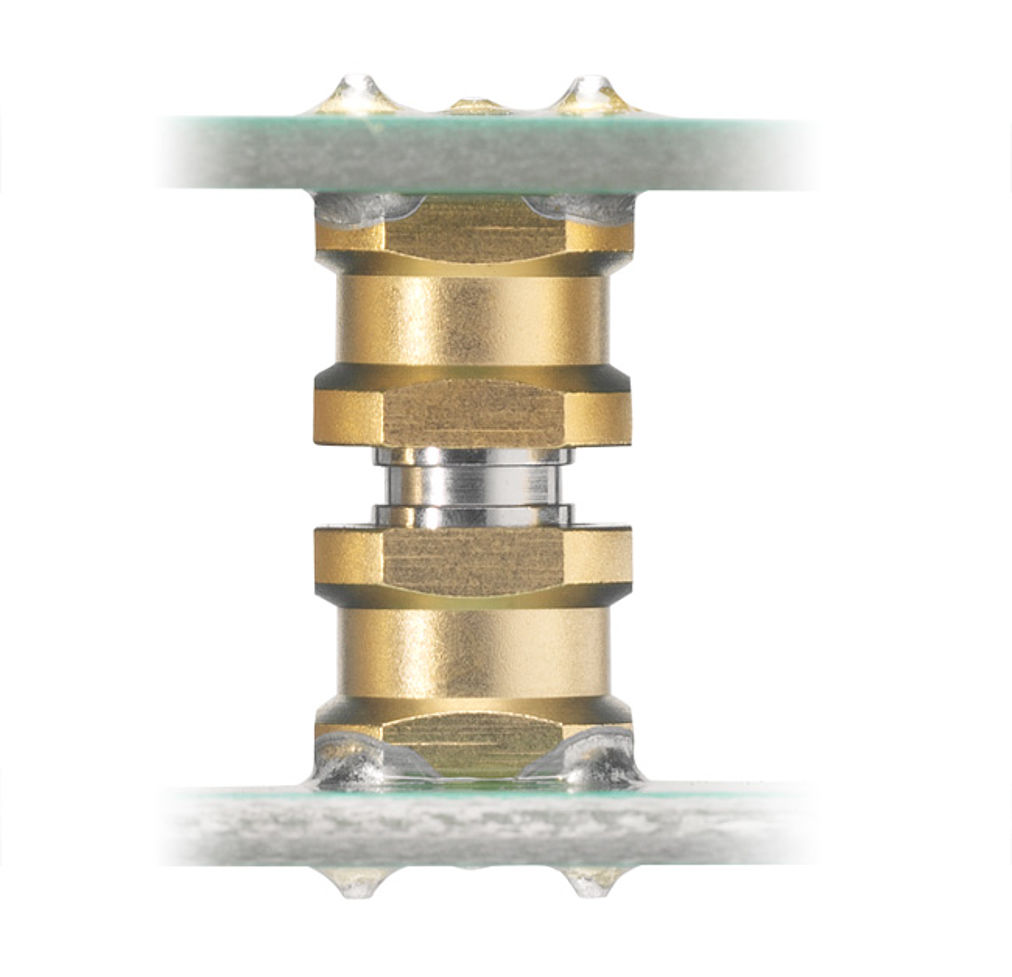

Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.
- Impedance 50 Ω
- Interface according to Rosenberger P-SMP
- Frequency range DC up to 10 GHz
- Return loss: ≥ 32 dB @ DC to 3 GHz; ≥ 26 dB @ 3 GHz to 6 GHz
- Power 200 W @ 2.2 GHz
- Minimum board-to-board distance 12.6 mm
- Axial misalignment ± 1 mm
- Radial misalignment 4°
- Mating cycles: full detent: ≥ 100; limited detent ≥ 100; smooth bore: ≥ 1000
- Snap-on locking mechanism
Specification Sheet
7-16 connectors are high-quality coaxial solutions with low attenuation and intermodulation for frequencies up to 7.5 GHz. They are suitable for medium to high power transmission in outdoor applications such as mobile communications due to their high mechanical stability and excellent weather resistance.
Ürün Başarıyla Sepete Eklendi
Rosenberger provides a variety of DIN 41626 coaxial and power inserts. Their small dimensions allow high packing densities with easy mixed card edge connection via the snap-in method.
Ürün Başarıyla Sepete Eklendi
Rosenberger MagCode® PowerSystem and MagCode® PowerSystemPro ensure safe and reliable magnetic connection to 12V and 24V external power sources. This includes ‘cigarette lighter’ receptacles commonly found on many vehicles such as cars, trucks, vans and campers as well as motorcycles and boats.
Ürün Başarıyla Sepete Eklendi
Rosenberger HV fuses ensure the safety of high voltage PDUs used in electric vehicles. Watertight and vibration-proof, they feature a HVIL (high-voltage interlock) and are characterized by their lightweight plastic housing. Fuses and the corresponding insert can easily be replaced without opening the component housing.
