RPC-1.35

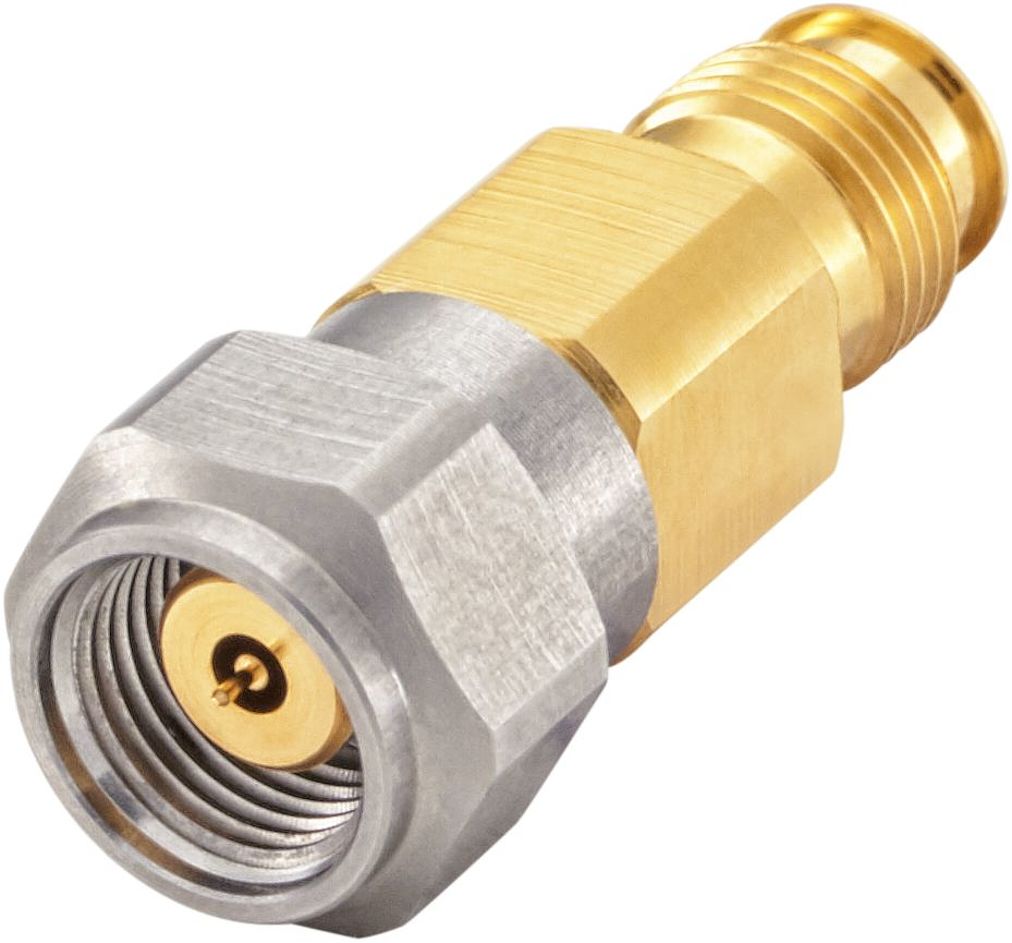

Rosenberger RPC-2.40 connectors – high reliability and outstanding repeatability – are designed for precision test & measurement applications up to 50 GHz. With 50 Ω impedance and 2.40 mm outer conductor, they are intermateable with many other 2.40 mm series connectors such as APC-2.40, OS-50, HP-2.40 or RPC-1.85 and V connectors. A wide range of RPC-2.40 cable and PCB connectors, adaptors and interchangeable port connectors is available as well as test & measurement accessories. These include RPC-2.40 calibration kits, test cables and measurement equipment.

applications up to 40 GHz. The shortened male pin and fourfold slotted female center contact allow these high-quality connectors to meet the highest levels of reliability and repeatability performance. RPC-2.92 connectors are intermateable with common 2.92, 3.50, SMA, as well as K connectors. The wide product range comprises cable, PCB and panel connectors, adaptors, interchangeable port connectors, attenuators as well as test & measurement accessories. These include RPC-2.92 calibration kits, test cables, opens, shorts, loads, attenuators, airlines or sliding loads. For test & measurement applications in future 5G networks the frequency range of selected RPC-2.92 adaptors, cable assemblies and compact calibration kits has been extended up to 43.5 GHz.

Rosenberger RPC-SP 50 Ω precision connectors are designed for applications up to 22 GHz where quick and reliable interconnects are essential. Intermateable with OSP and BMA connectors, the floating construction allows compensation for axial and radial misalignment while the innovative blind mate self-finding mechanism ensures fast, easy connection and disconnection, bringing significant time and cost reductions. Furthermore, tightening the connection requires no additional tooling. RPC-SP connectors are therefore ideal for use where space is at a premium such as in many rack and plug-in applications. The product range comprises cable, panel and PCB connectors, adaptors to other coaxial connector series, airlines as well as test & measurement accessories such as RPC-SP calibration kits, test cables or measurement equipment (open – short – load).

Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.
