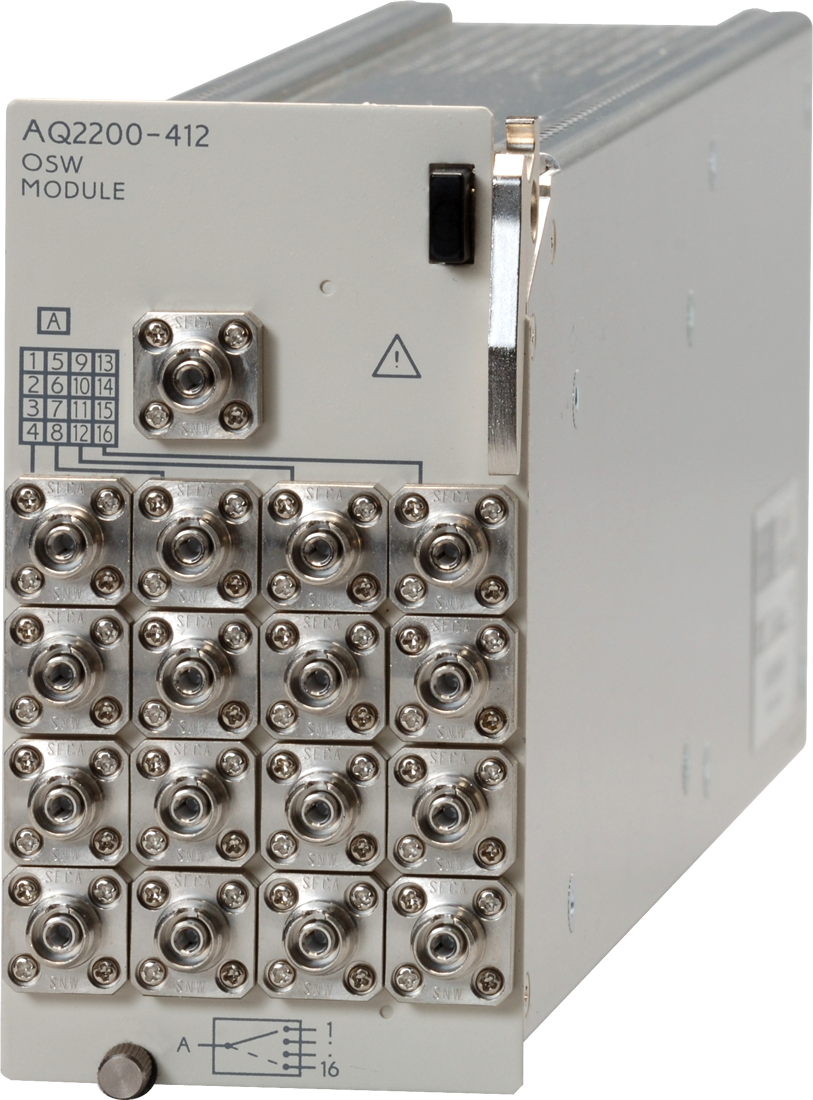

- Compact: Optical switches of 1 x 16 port configuration in a two-slot size module
- Compatible with SMF(10/125µm) or MMF(50/125µm)
- Low insertion loss: 1.0 dB (typ.)
- High switching reproducibility: within ±0.01 dB
- Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems
Specification Sheet
The AQ2200-212 is high-performance single channel sensor module with an analog output port.
Ürün Başarıyla Sepete Eklendi
The AQ2200-215 is an optical power meter designed specifically to measure high optical power up to +30dBm. It features high speed sampling and advanced data processing functions. The AQ2200-215 is an ideal measurement tool for optical output power measurement and margin test of WDM transmission equipment, as well as gain measurements of optical fiber amplifiers. It is commonly used in conjunction with other AQ2200 Series modules and the AQ6370C Optical Spectrum Analyzer to offer a flexible customized optical measurement system.
Ürün Başarıyla Sepete Eklendi
Ürün Başarıyla Sepete Eklendi
The AQ2200-312 is a variable optical attenuation for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.
