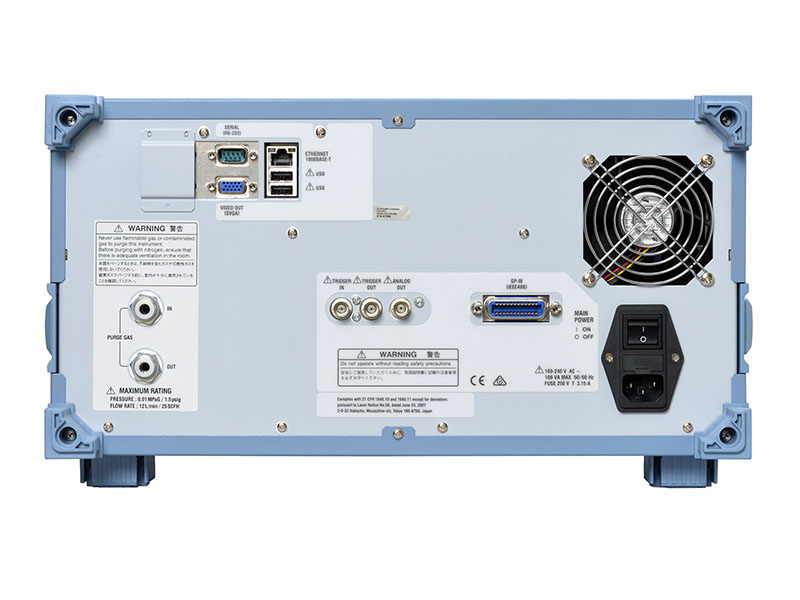

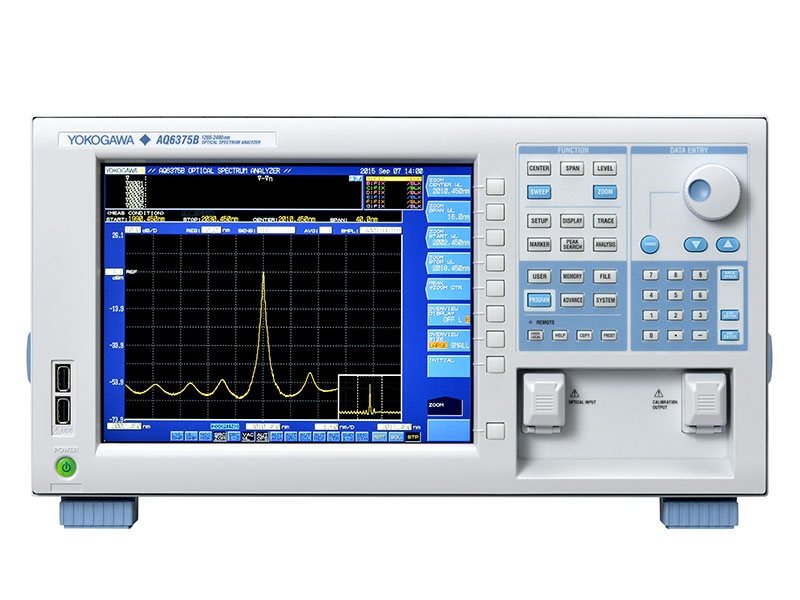

AQ6375B Uzun Dalgaboyu Optik Spektrum Analizörü1200 - 2400 nm

The AQ6370D is the latest iteration of the most popular Telecom class OSA from Yokogawa. It offers a versatile wavelength range of 600 nm to 1700 nm ideally suited for both Telecommunications and general purpose applications. The unique free space input design allows testing of both DWDM class singlemode and VCSEL sourced multi-mode fibers in one single model. Newly added functions include data logging, gate sampling,resolution calibration, an advanced marker function and an enhanced auto-sweep mode.

The AQ6360 is the fastest optical spectrum analyzer for optical device manufacturing offered by Yokogawa. It is a cost-effective optical spectrum analyzer ideal for industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers. The AQ6360 features a wavelength range of 1200 to 1650 nm for ideal manufacturing test performance. Its free space optical input structure design allows for guaranteed high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analysis functions and Ethernet and GPIB remote interfaces.

The AQ6370E is the new model in Yokogawa's most popular telecom class OSA. With a versatile wavelength range of 600 nm to 1700 nm, it is ideal for both telecom and general purpose applications. The unique free-space input design allows him to test both DWDM-class single-mode and VCSEL-sourced multimode fibers in one single model. The new high-speed measurement mode, high close-in dynamic range mode, touch panel, and APP function greatly improve measurement efficiency. Wavelength range：600 to 1700 nm Wavelength accuracy：±0.008 nm typ. Wavelength resolution：0.02 nm Close-in Dynamic range：78 dB typ. Level range：+20 to -90 dBm Up to 2x faster measurement: SMSR mode Sharper spectrum measurement: HCDR mode Large touchscreen LCD
