1.6-5.6

Ürün Kodu SEZOON

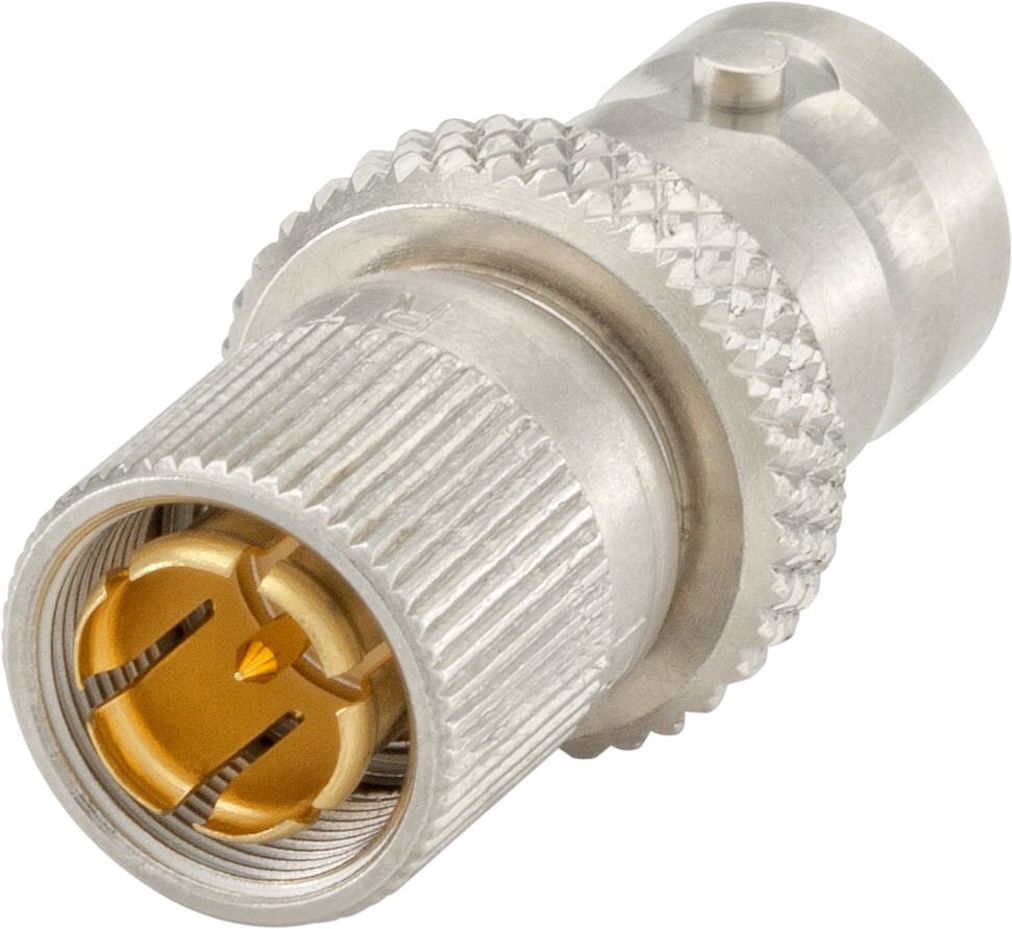

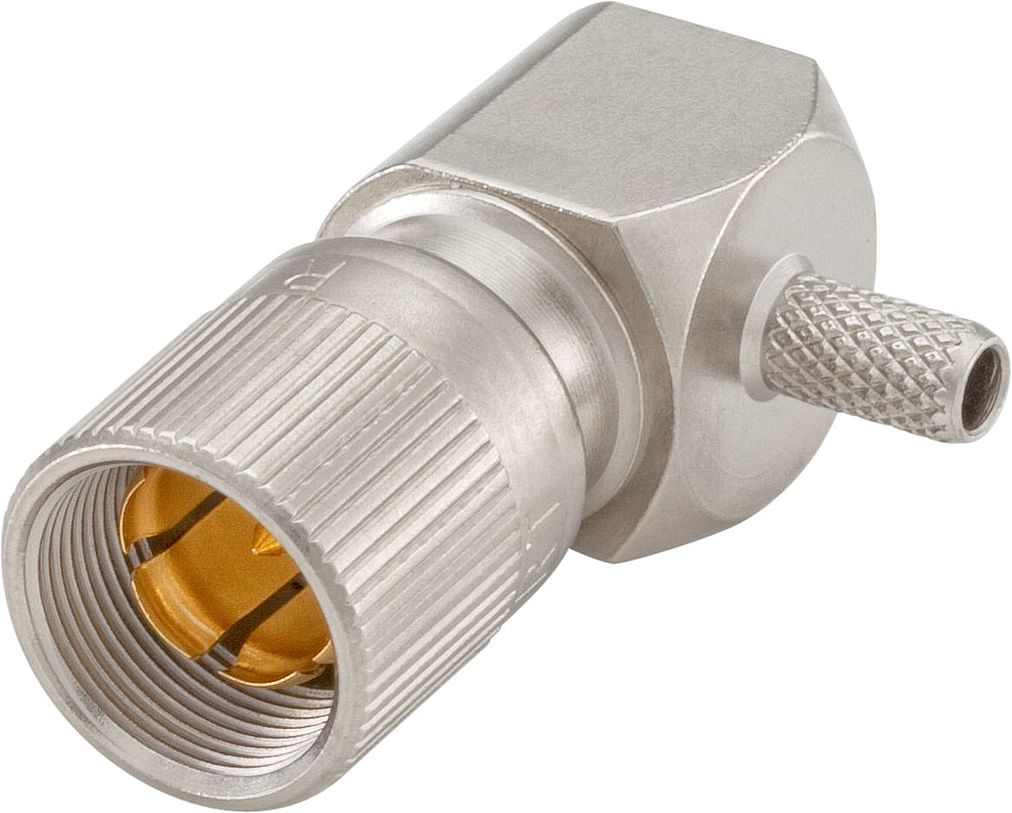

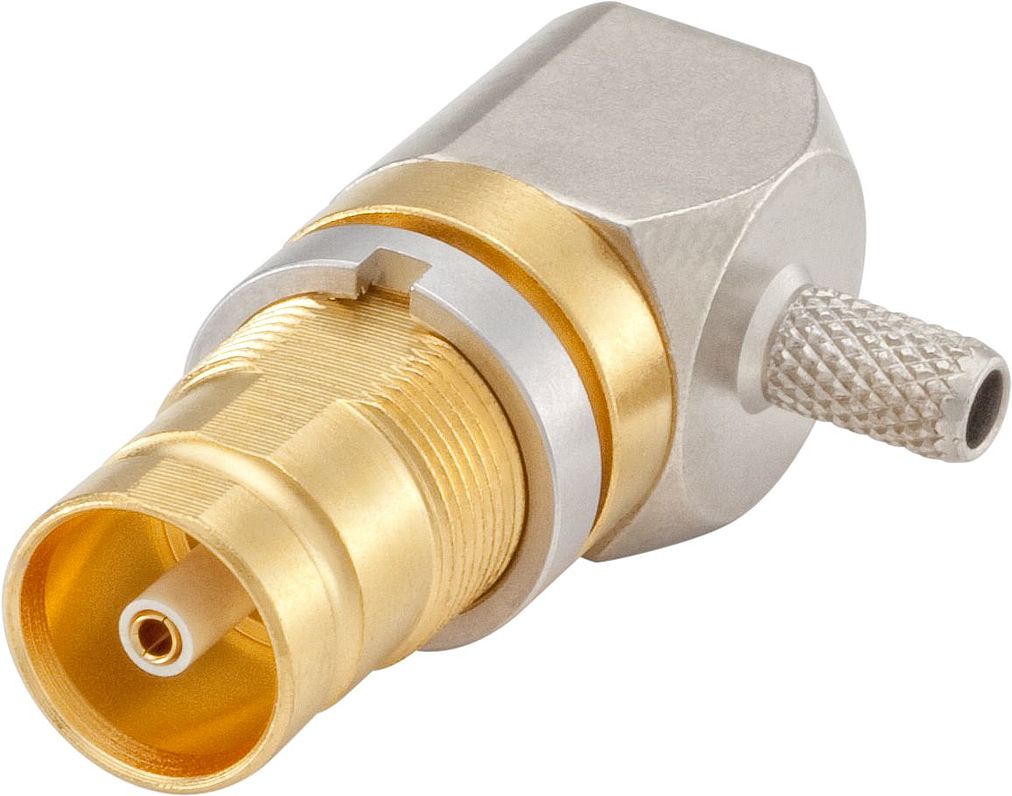

1.6-5.6 connectors perform at 75 Ohm up to 4/12 GHz and are characterized by high mechanical and electrical stability. They are mainly used for reliable transmission of high bit-rates. IInd and IIIrd generation 1.6-5.6 connectors are intermateable and feature different coupling mechanisms for allowing male types to be connected to all female types. The screw-on coupling version provides positive, familiar mating, while the quick-lock/push-pull coupling version enables quick installation. This series complies with CECC 22240 standards.

Rosenberger

Impedance 75 Ω
Interface according CECC 22240
Frequency range DC to 4 GHz (IInd generation), DC to 12 GHz (IIIrd generation)
Return loss (cable connector straight)
≥ 33 dB @ DC to 1 GHz (IIIrd generation)
≥ 27 dB @ 1 GHz to 2 GHz (IIIrd generation)
≥ 20 dB @ 2 GHz to 4 GHz (IIIrd generation)
Mating cycles ≥ 50
