H-MTD® - Yüksek Hızlı Modüler Bükümlü Çift Verileri
Ürün Kodu MZZMMG

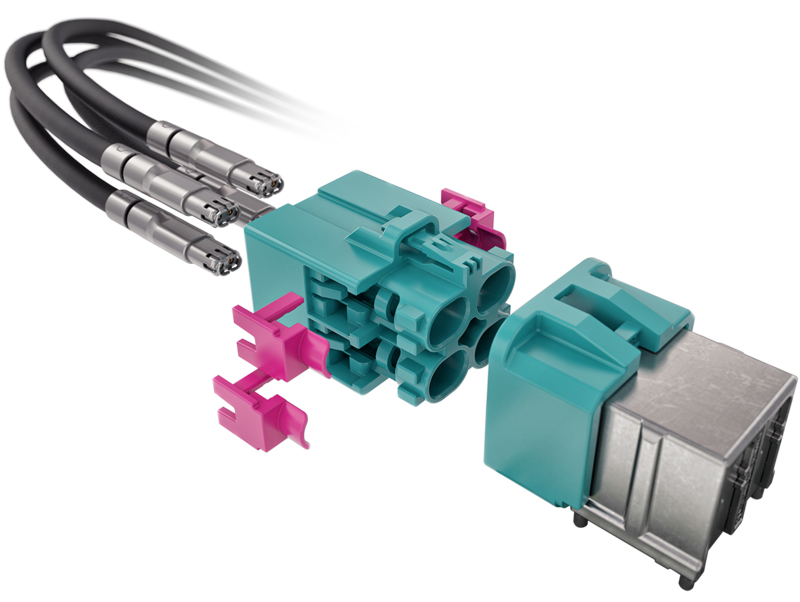

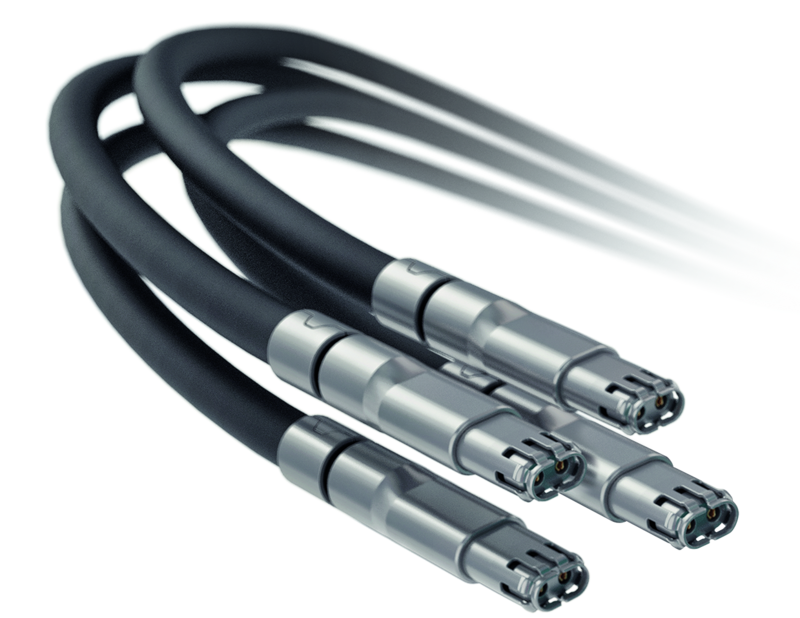

Rosenberger H-MTD® is a 360° fully shielded differential connector system for Ethernet applications. The newly developed system has successfully combined high-performance data transmission, of up to 15 GHz or 20 Gbps, in a compact yet robust automotive grade housing. Apart from ensuring high-bitrate data transmission, savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols. Among others, this makes the Rosenberger H-MTD® highly suited for use by those designing solutions for the automotive industries.
- Impedance 100 Ω
- Frequency range DC up to 15 GHz
- High data rates up to 20 Gbps
- Mating cycles ≥ 25
- Automotive graded differential connector according LV 214 / USCAR
- Single, double, quad housings
- Watertight versions
- CPA Versions
- Two shielding versions:
- STP – full 360° shielding, UTP – unshielded version possible
- Suitable for STP, UTP and SPP cables
- Small dimensions
Specification Sheet
Rosenberger has developed several TDD beam-forming antennas and hybrid FDD+TDD antennas consisting of 8T8R TDD antennas with 4 ports of FDD low band. Various FDD port configurations are possible, such as 4 ports for low band and 6 ports for high band. The TDD array in this 18-port antenna may operate in B40 (2,300 MHz), B41 (2,500 MHz), or B42/B43 (3,500 MHz band).
Ürün Başarıyla Sepete Eklendi
Rosenberger Mini-SMP connectors are extremely small coaxial connectors, approximately 70% of standard SMP size. They are designed for applications up to 65 GHz and mainly for high-speed signal transmission (typically 10 or 40 Gbps). Plugs are available as smooth bore-versions – for plug-in technology and backplane applications – and as vibration resistant full detent types, for the highest mechanical loads such as those found in aerospace engineering. Mini-SMP subminiature connectors are well-proven, offering a high level of flexibility in alignment tolerances and for simplifying the whole production process. Rosenberger Mini-SMP coaxial connectors are mateable with common Mini-SMP connectors as specified by MIL-STD-348A, Fig. 328, as well as GPPO™ (Gilbert Engineering Co., Inc.) and SSMP™ (Carlisle Interconnect Technologies) series. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and also in blisters.
