Longwipe-SMP
Ürün Kodu UTKBNL

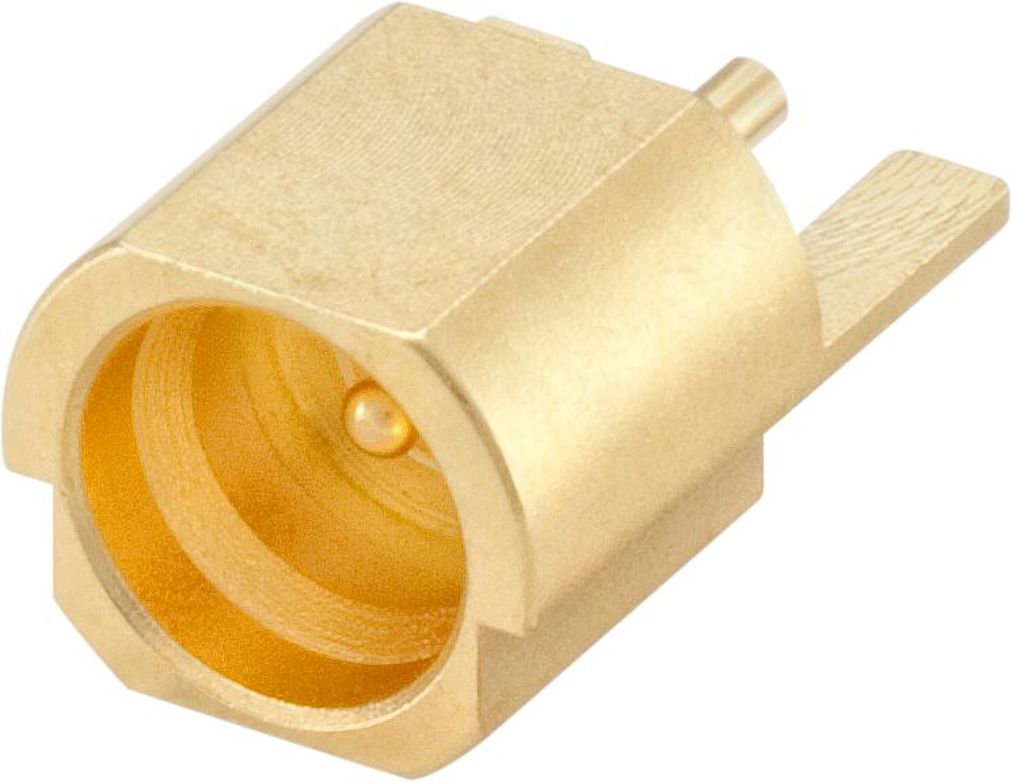

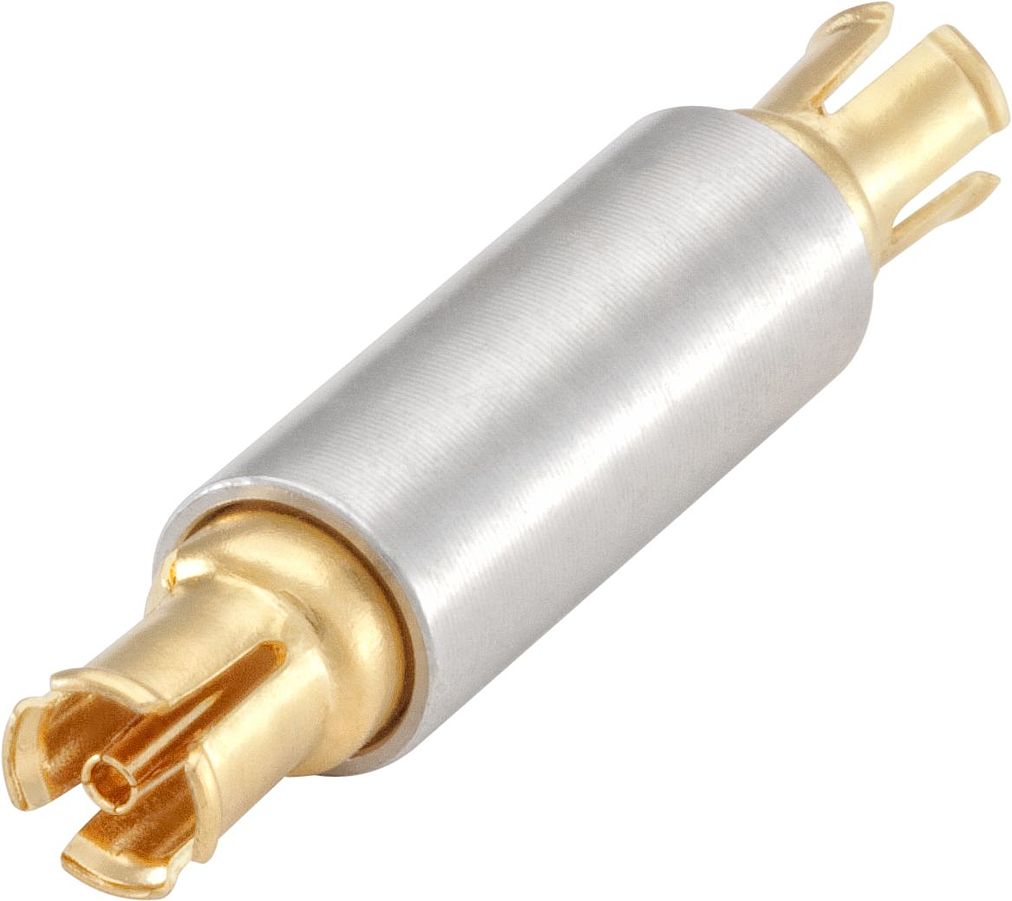

Rosenberger Longwipe-SMP subminiature coaxial connectors are suited to applications up to 6 GHz and enable axial tolerance compensation of ± 0.7 mm. Full and limited detent options are available as well as smoother bore/catchers mitt, enabling sliding contact with expanded guide-in range.
- mpedance 50 Ω
- Frequency range DC up to 6 GHz
- Return loss: ≥ 23 dB (typ.)

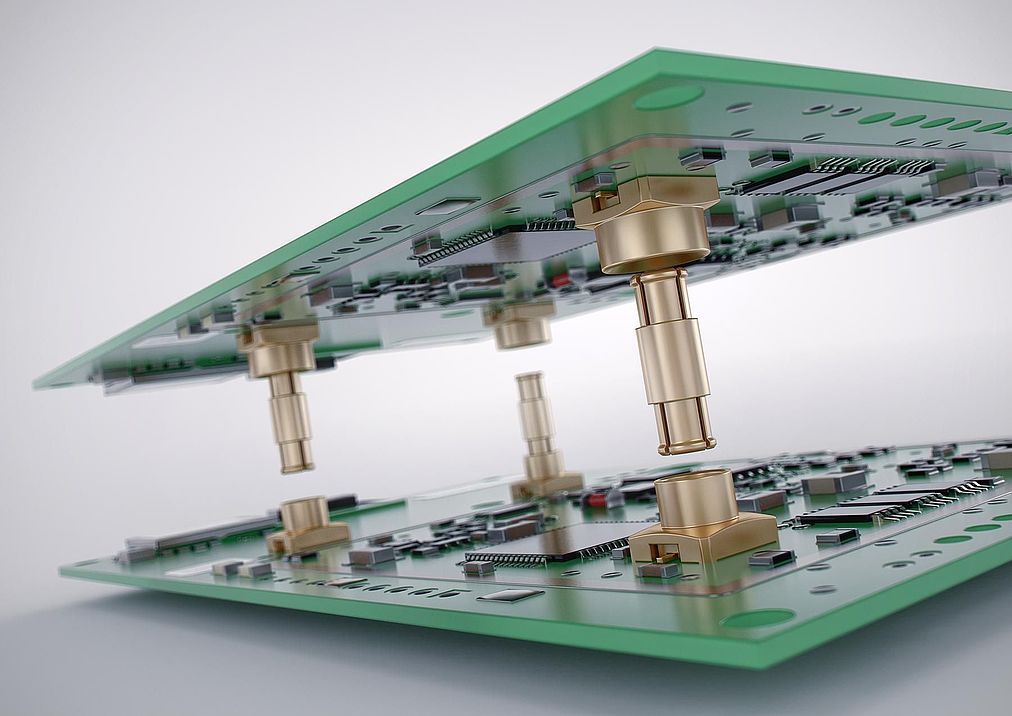

- Minimum board-to-board distance 9.25 mm
- Axial misalignment ± 0.7 mm
- Radial misalignment 4°
- Mating cycles: full detent: ≥ 100; limited detent: ≥ 500; smooth bore/catchers mitt: ≥ 1000
- Snap-on locking mechanism
Rosenberger H-MTD® is a 360° fully shielded differential connector system for Ethernet applications. The newly developed system has successfully combined high-performance data transmission, of up to 15 GHz or 20 Gbps, in a compact yet robust automotive grade housing. Apart from ensuring high-bitrate data transmission, savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols. Among others, this makes the Rosenberger H-MTD® highly suited for use by those designing solutions for the automotive industries.
Ürün Başarıyla Sepete Eklendi
Rosenberger WSMP®PCB connectors, bullets and cable assemblies are extremely compact and capable of handling frequencies up to 100 GHz. WSMP® connectors are about 45 % smaller than standard SMP connectors for allowing high packing density. Featuring a push-on coupling mechanism and enabling a minimum board-to-board distance of 3.05 mm, they are optimized for customer-specific footprints and layout recommendations.
