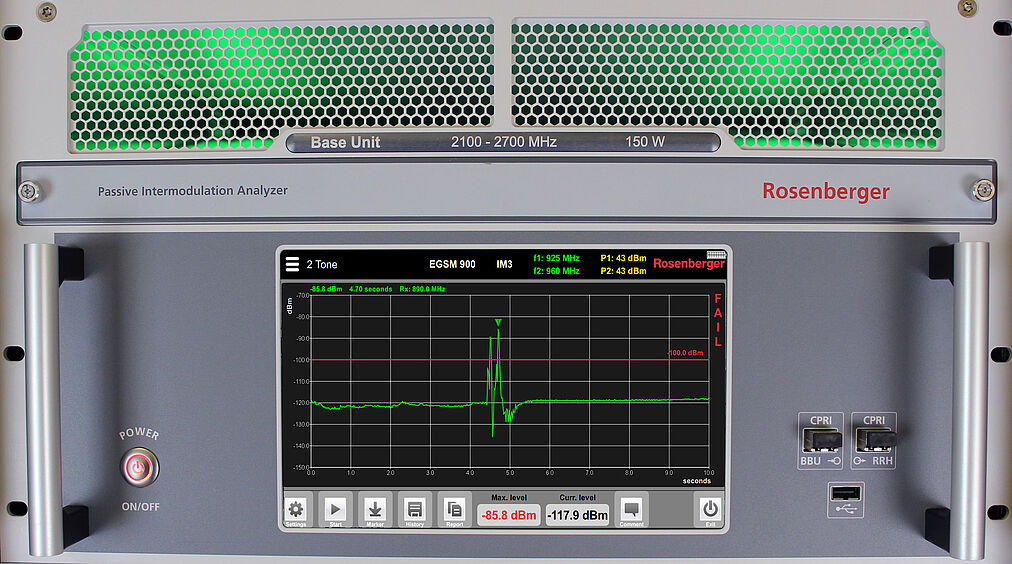

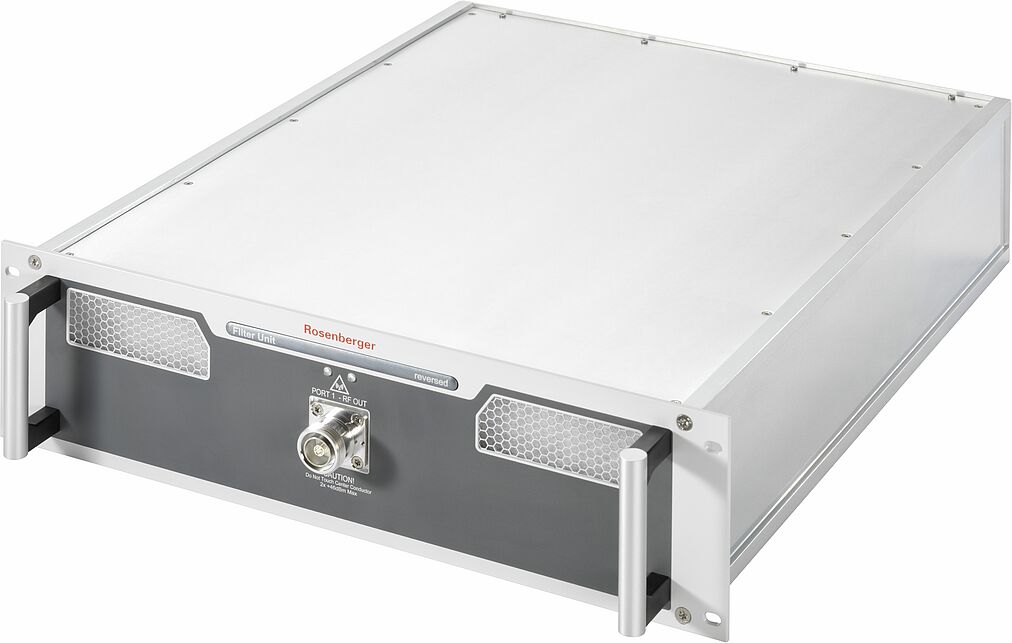

PIM Rack Analyzer

4.1-9.5 coaxial connectors, screw-on locking, for frequencies up to 14 GHz, screw-on are robust and weatherproof. With smaller dimensions than 7-16 series solutions, making them ideal for mobile communication environments.

Rosenberger provides a wide range of Multiport Mini-Coax connectors and cable assemblies for addressing the challenging technological demands of the semiconductor test equipment industry. For both 20 and 40 GHz applications, the extensive standard range comprises PCB connectors, purpose-designed plastic-housings and pre-assembled cable assembly sets. This ensures cable assembly configurations that precisely meet customer-specific test requirements. Board-to-board connections can be applied in very limited spaces with the advantages of coaxial shielding while a handy extraction tool ensures mating and demating can be done quickly and easily onsite. The cost-effective injection moulded housings for connection to one side of the PCB are available with 2, 4, 6 or 8 channels and allow the mixing of straight and right angle Mini-Coax cable pairs. Interface dimensions are based on Rosenberger standard Mini-Coax connectors.

Rosenberger RPC-1.00 precision connectors – with 50 Ω impedance and 1.00 mm outer diameter – can be used for challenging test & measurement applications up to 110 GHz. They are characterized by excellent technical data over the full frequency range, meet the highest levels of reliability and repeatability of performance, and are intermateable with common 1.00 mm connectors. The standard portfolio covers flexible and semi-rigid cable assemblies, adaptors and PCB connectors. Waveguide-to-coaxial adaptors and gauge kits are also available. Customer-specific cable assembly solutions with or without armouring available on request.

Rosenberger HVR®50 connectors are available in straight and angled variants. The additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental disconnection. Despite their small size these connectors achieve a current capacity of approximately 60 A at 85 °C. HVR®50 connectors are mainly used in ancillary units such as electrical heating systems, air-conditioning units, DC/DC converters, and for charging batteries.
