RPC-2.40
Ürün Kodu 1TYVVZ

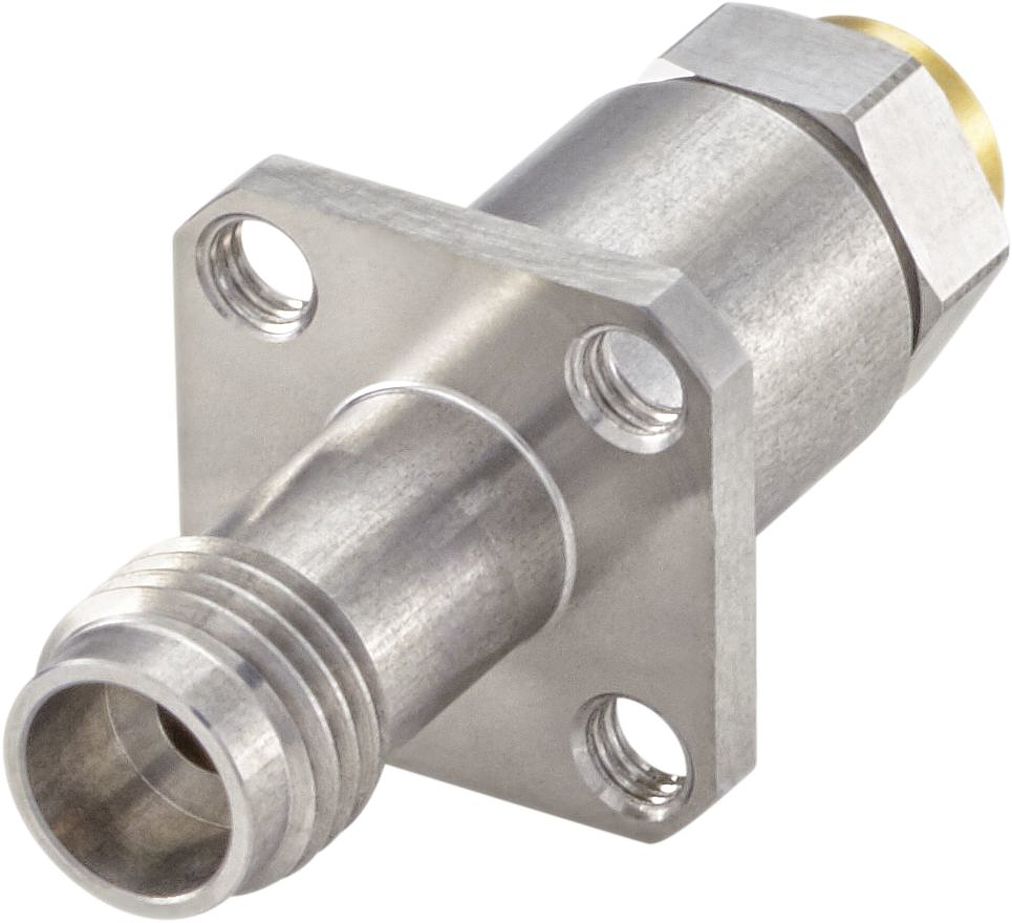

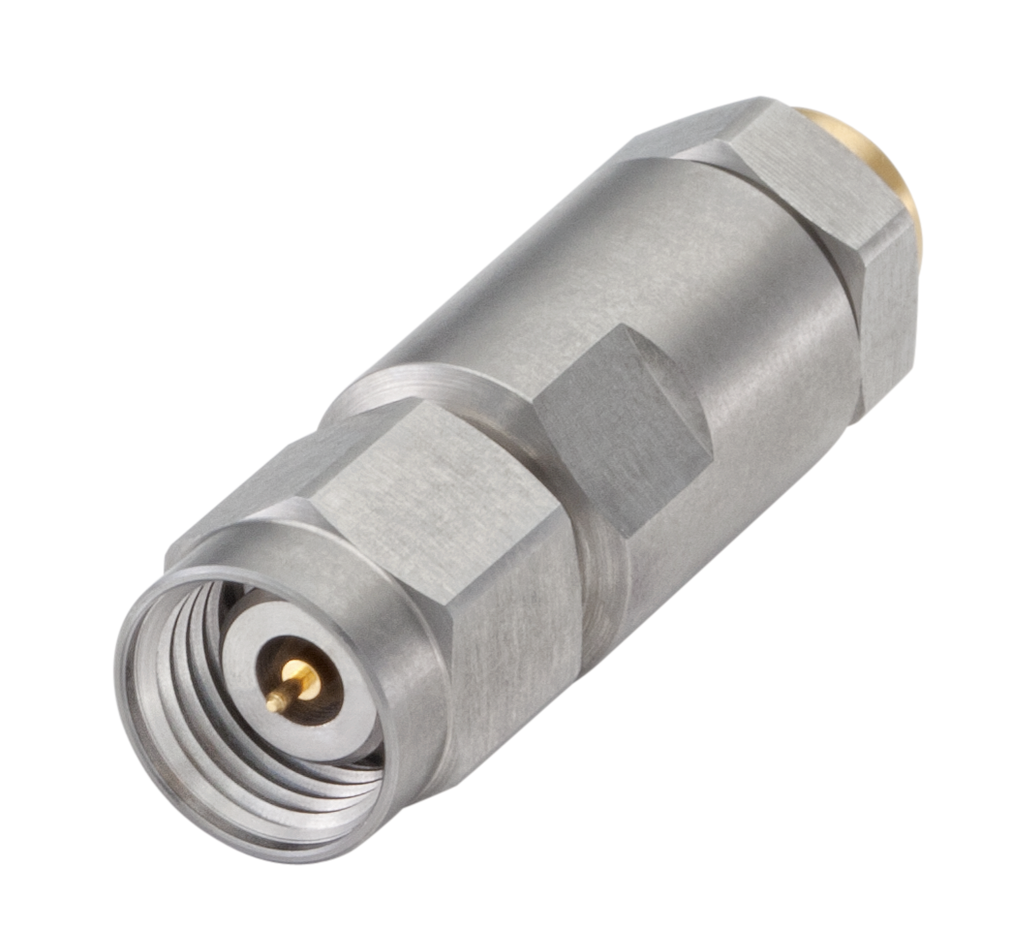

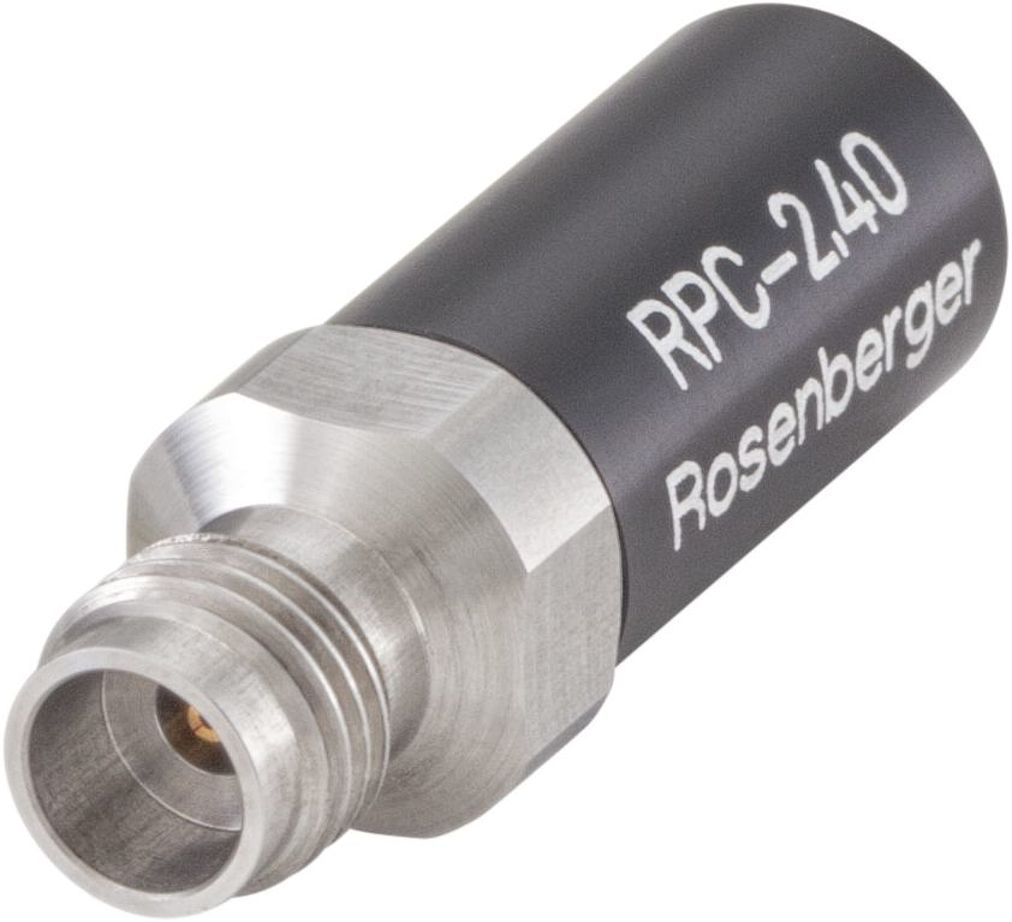

Rosenberger RPC-2.40 connectors – high reliability and outstanding repeatability – are designed for precision test & measurement applications up to 50 GHz. With 50 Ω impedance and 2.40 mm outer conductor, they are intermateable with many other 2.40 mm series connectors such as APC-2.40, OS-50, HP-2.40 or RPC-1.85 and V connectors. A wide range of RPC-2.40 cable and PCB connectors, adaptors and interchangeable port connectors is available as well as test & measurement accessories. These include RPC-2.40 calibration kits, test cables and measurement equipment.
- Impedance 50 Ω
- Interface according to IEC 60169-40
- Frequency range DC up to 50 GHz
- Return loss > 23 dB @ DC – 50 GHz
- Mating cycles > 500
- Air dielectric with PEEK bead
- Stainless steel outer contact
Specification Sheet
Rosenberger, as a dependable development partner of highly accurate industrial measurement technology, develops and produces a comprehensive range of calibration kits for a variety of standard and precision interfaces for vector network analyzers (VNAs).
Ürün Başarıyla Sepete Eklendi
Rosenberger MagCode® PowerSystem and MagCode® PowerSystemPro ensure safe and reliable magnetic connection to 12V and 24V external power sources. This includes ‘cigarette lighter’ receptacles commonly found on many vehicles such as cars, trucks, vans and campers as well as motorcycles and boats.
Ürün Başarıyla Sepete Eklendi
Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.
