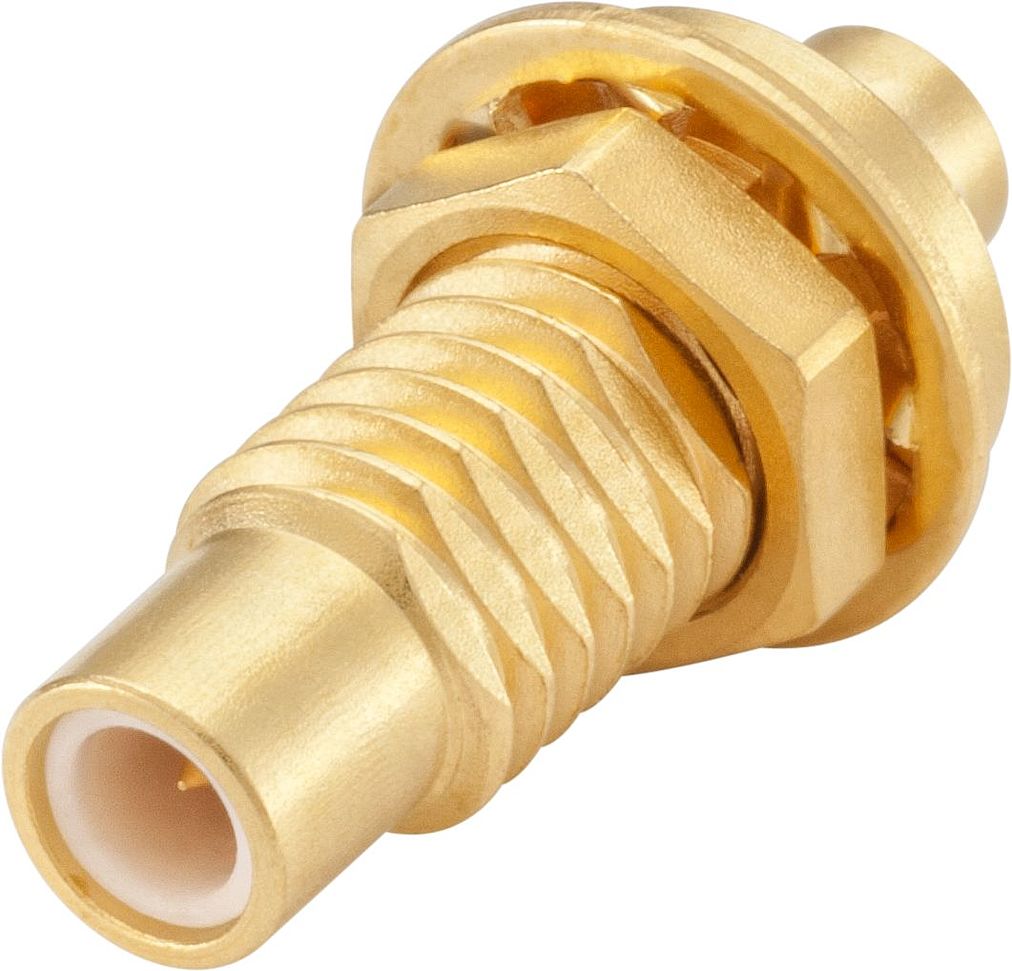

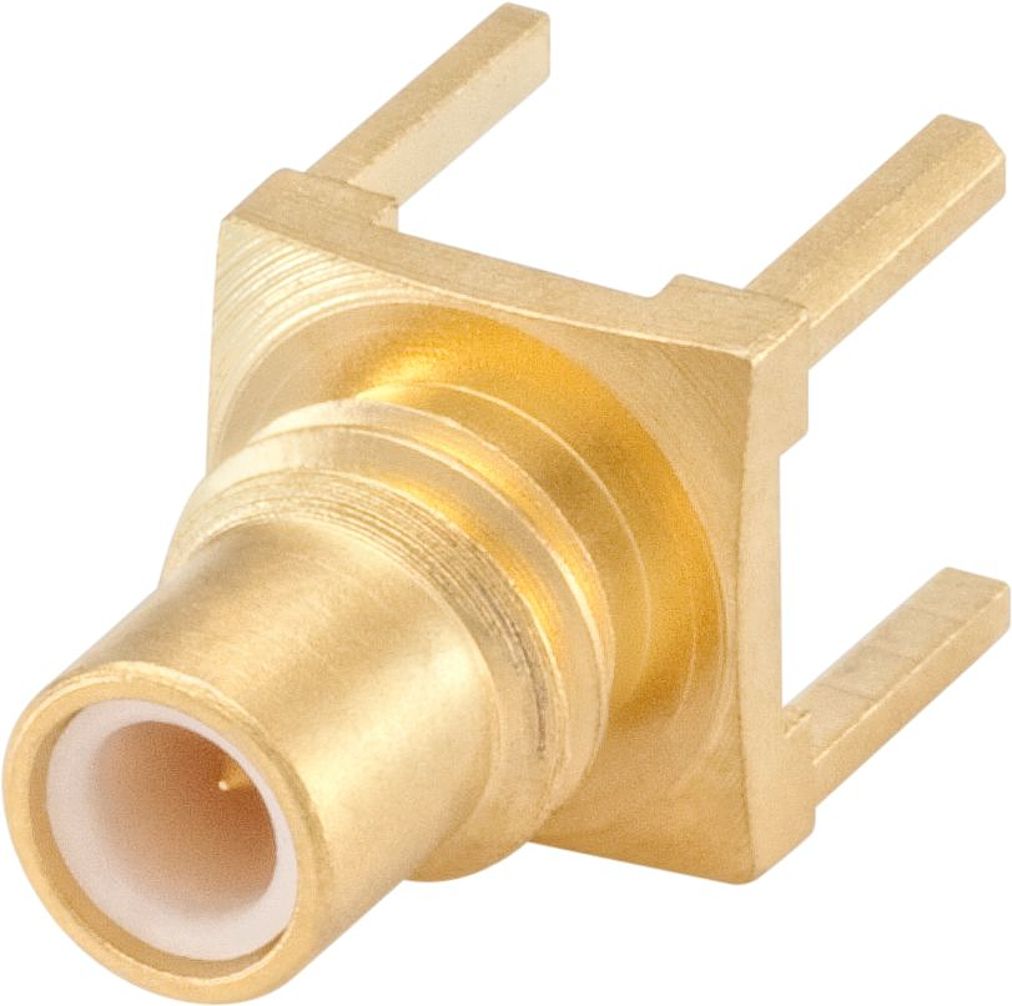

SMC

Rosenberger’s new EBC® (Efficient Board Connector) series is the ideal 5G board-to-board and board-to-module RF interconnect solution for active MIMO (Multiple Input Multiple Output) antennas and radios. Outstanding performance, low cost design and high mechanical stability make EBC® the perfect future-proof product for 5G radio interconnections. For applications up to 8 GHz, EBC® connectors fulfill the challenging requirements caused by the exponential data volumes increases in future 5G networks. Essential characteristics include extremely small dimensions, radial and axial misalignments, different holding forces, minimum board-to-board distances, and fast and cost-effective assembly design. A key mechanical design feature is the locating side which is integrated in the bullet. One side has a smooth bore, while the other has a limited-detent design. The single PCB coupler provides a consistent footprint with preloaded outer contacts for ensuring contact optimization, the push/snap-on locking mechanism allows fast and easy disconnection.

PreCONNECT® trunk for mobile applications, equipped with fiber optic loose-tube cables up to 12 fibers (more fibers on request) on very robust portable and mobile cable drums. For the emergency replacement for destroyed links (disaster recovery), mobile TV applications and temporary cabling.

The Rosenberger NEX10® connector system meets the existing and future infrastructure efficiency demands of small cell applications and 5G mobile networks. For frequencies up to 20 GHz, the new robust and highly compact NEX10® interface standard provides safe, easy and damage-free connection while minimizing interference from PIM (Passive Intermodulation). Screw-type and a push-pull locking mechanism are available. As a leading global manufacturer of RF products, Rosenberger is an active partner in the NEX10® consortium which is tasked with making the interface a worldwide IEC standard. Designed for upcoming 5G Networks.
