HVR®50

Ürün Kodu LV1P2C

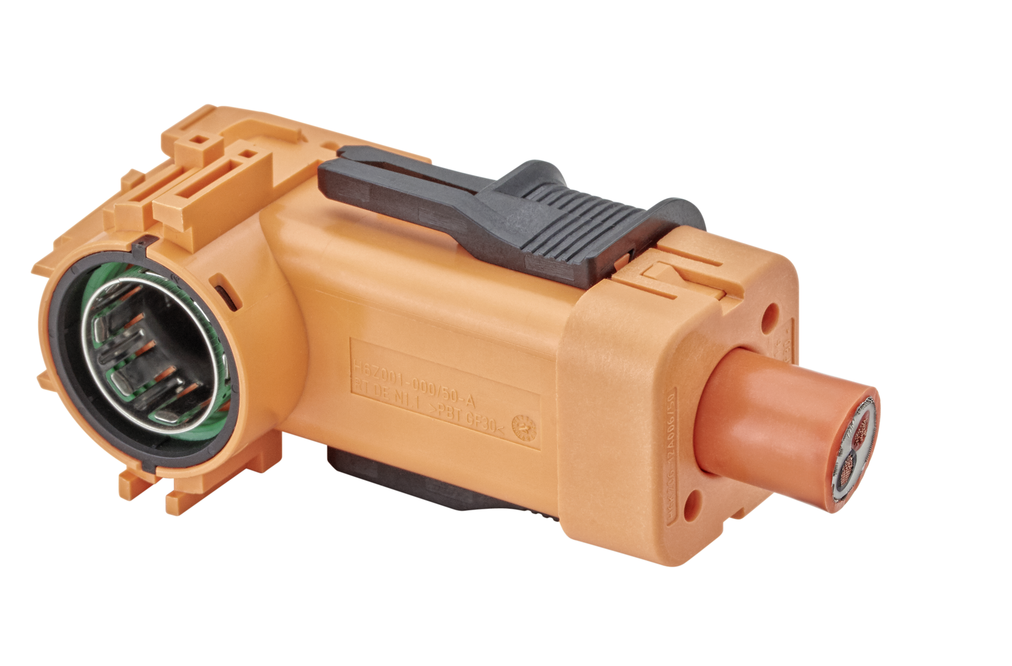

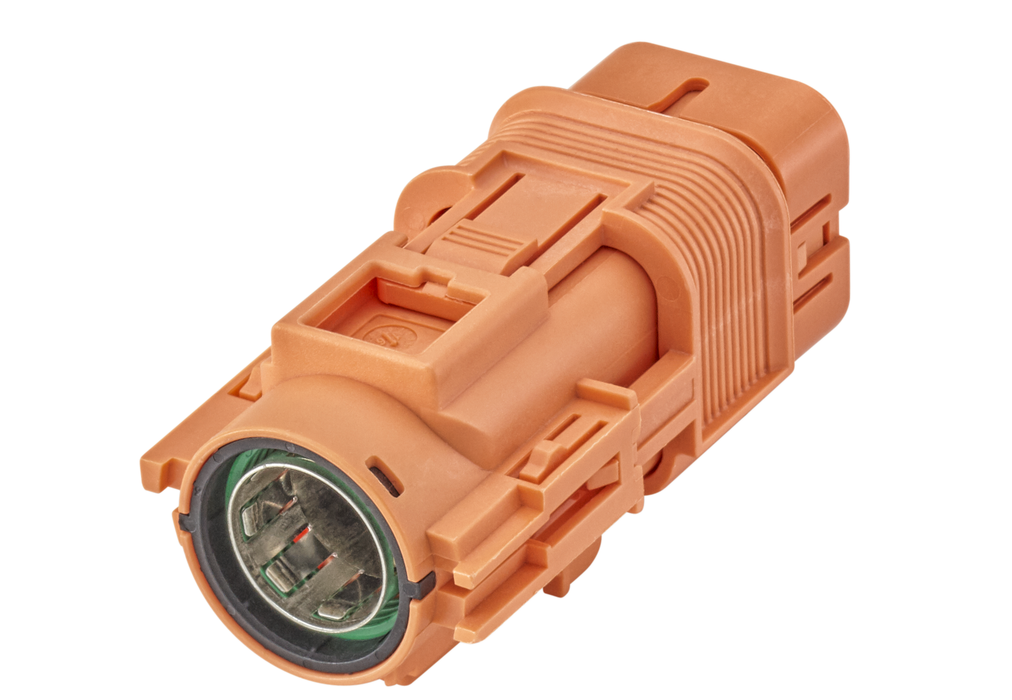

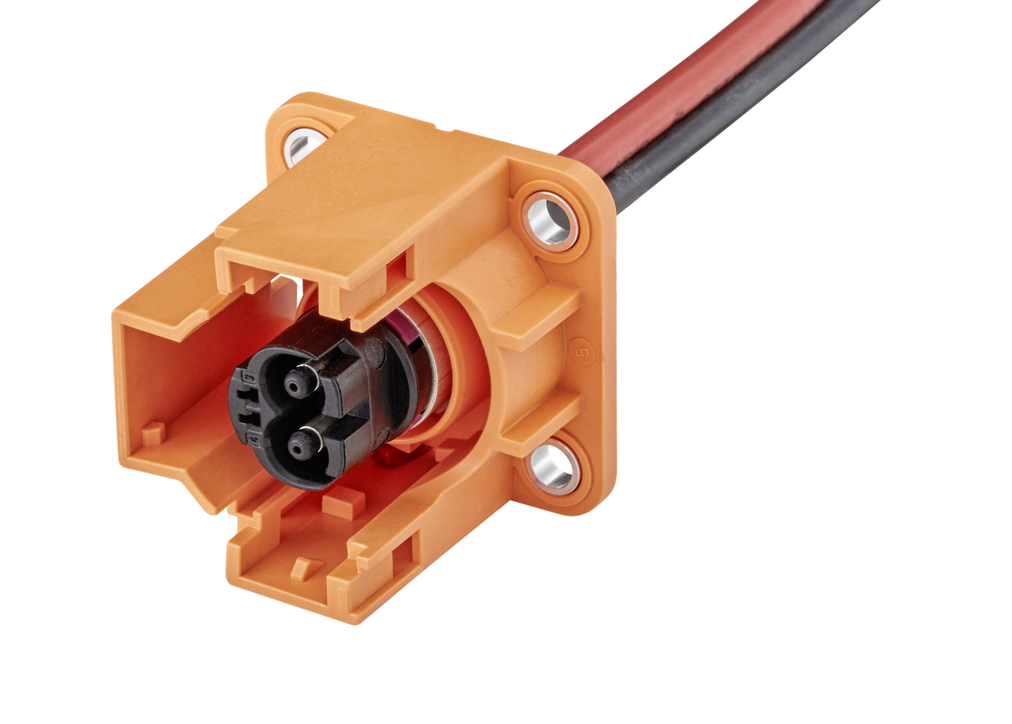

Rosenberger HVR®50 connectors are available in straight and angled variants. The additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental disconnection. Despite their small size these connectors achieve a current capacity of approximately 60 A at 85 °C. HVR®50 connectors are mainly used in ancillary units such as electrical heating systems, air-conditioning units, DC/DC converters, and for charging batteries.

Rosenberger

Features

Current capacity (6 mm²) 60 A at 85 °C
Working voltage 1000 V DC
Test voltage 2700 V DC
Temperature range -40 °C to +140 °C
IP code mated acc. to IP6K9K / IPX8 / IPXXD
IP code unmated acc. to IPXXB
Vibration class acc. to LV215 PG17-II
Mating cycles ≥ 50
Cross sections 4 mm², 6 mm²
