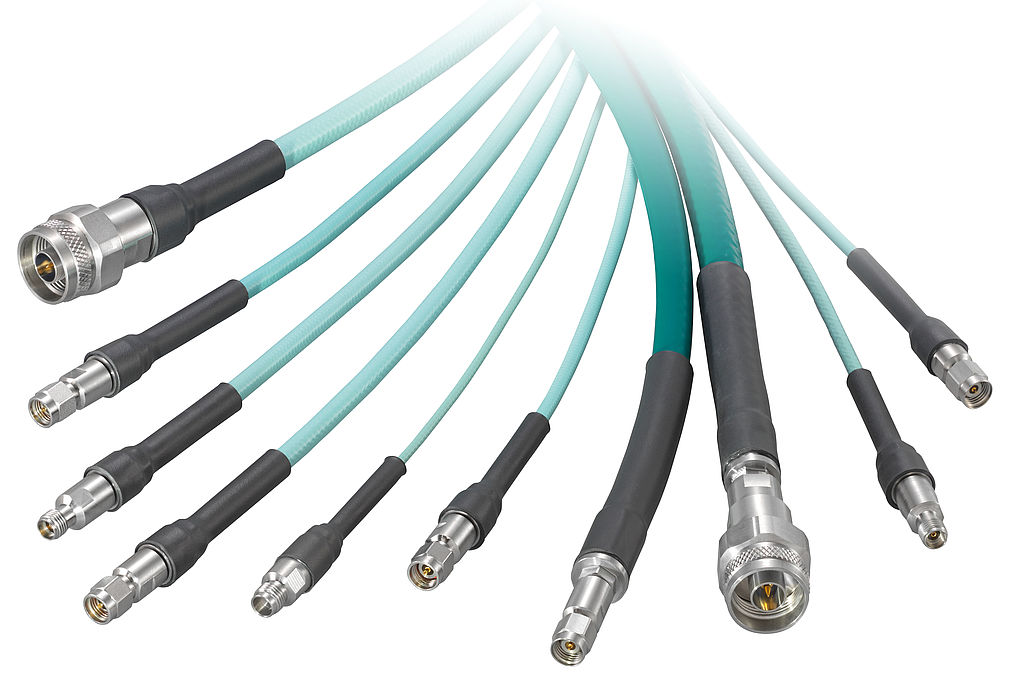

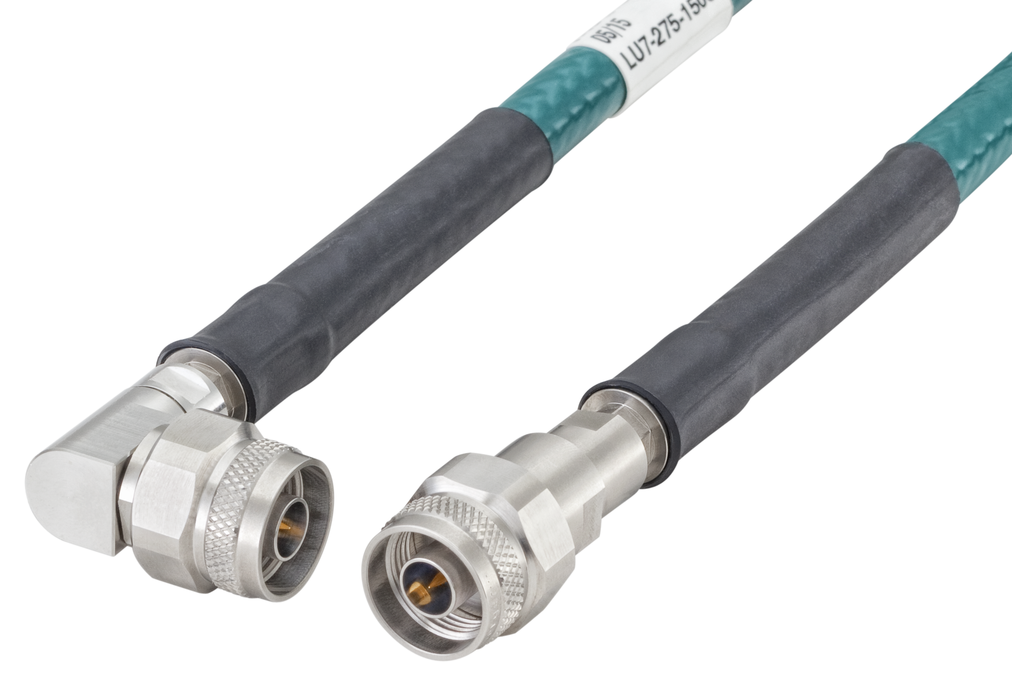

Mikrodalga Kablo Grupları
Ürün Kodu 51KHEH
Rosenberger has many years of experience in the manufacture of high quality cable assemblies for a wide variety of industrial test & measurement applications. Our standard microwave cable assemblies for vector network analyzers (VNA), for example, are characterized by their excellent electrical and mechanical performance for frequencies up to 110 GHz. The range includes ultra-low loss cables for antennas or applications with high power requirements; miniature cables for test systems or applications demanding high flexibility; indoor and outdoor cables; specially shielded cables and extremely phase stable cables for test & measurement applications. In defined lengths armoured RFlex™ cables are also available. Customer-specific assemblies and solutions can be ordered on request.
- Impedance 50 Ω
- Frequency range DC to 110 GHz
- Mating cycles > 500
- With or without armouring
- Power handling up to 600 W @10 GHz (depending on cable and connector type)
- Crush resistance with armour 80 N/mm (cable only)
Specification Sheet
Indoor LSZH Wrapping Tube CableTM (WTC) consists of Fujikura's novel Spider Web RibbonsTM (SWR) which are wrapped by a water blocking tape and non-metallic side strength members embedded in the flame retardant Low Smoke Zero Halogen (LSZH) sheath. Compared to normal loose tube cable, this full dry structure ribbon cable drastically reduces the cable deployment time by eliminating the process to wipe out jelly and by mass fusion splicing just like conventional ribbon cable. WTC achieves the world's highest density of optical fiber ribbon cable and allows effective utilization of indoor . Suitable for indoor applications.
Ürün Başarıyla Sepete Eklendi
Fujikura PANDA fibers have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector.
Ürün Başarıyla Sepete Eklendi
LTC-01 is the special tool for removing loose tube without damage to the UV acrylate coated optical fiber inside the loose tube.
