MTD®

Ürün Kodu DF1DAX

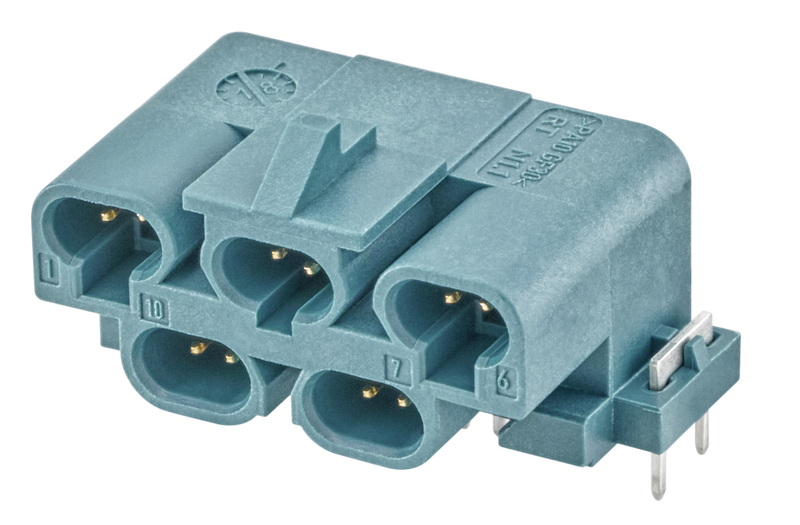

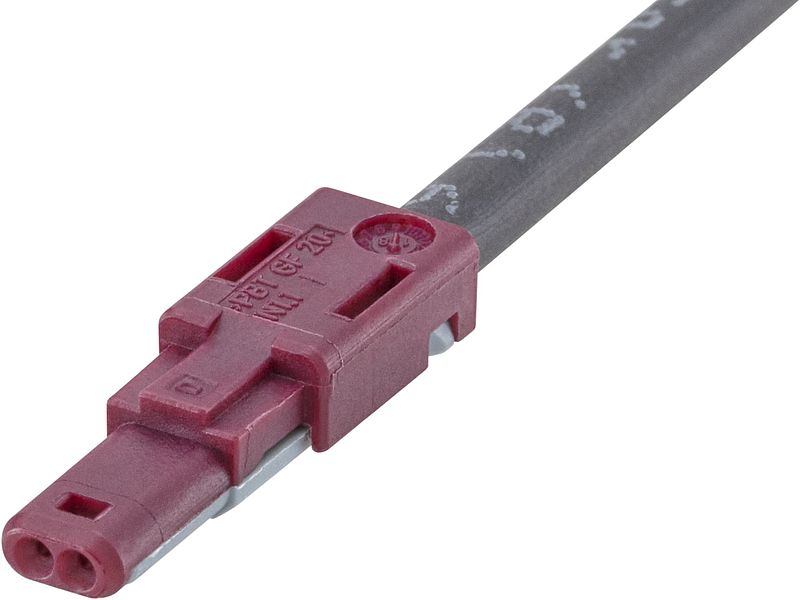

The Rosenberger MTD® Connection System is an industry standard* Ethernet transmission system for optimized jacketed Twisted-Pair cables. Its excellent transmission and electrical performance, reduced weight, size and cost benefits have set new standards for 100 Mbps and 1 Gbps single connection Ethernet implementation in vehicles. Compared to other solutions currently available a key advantage of Rosenberger’s new connection system is the impedance-controlled transition area from cable to connector interface. Its small size in combination with several coding features allows multiple wire pairs to be placed in close proximity ensuring installation space is kept to a minimum. Furthermore, the honeycomb structure provides low crosstalk, good symmetry and can be extended modularly.

Rosenberger

Impedance 100 Ohm
Industry standard interface
Frequency range DC up to 1 GHz
High data rates 100 Mbps and 1 Gbps (single)
Return loss according TC 2 and TC 9
Mating cycles ≥ 25
Fulfills USCAR 2 automotive requirements
Radial free positionable contacts
Stressless and torsion free contact assembling

Specification Sheet
