Ürün Kodu IVUCC2

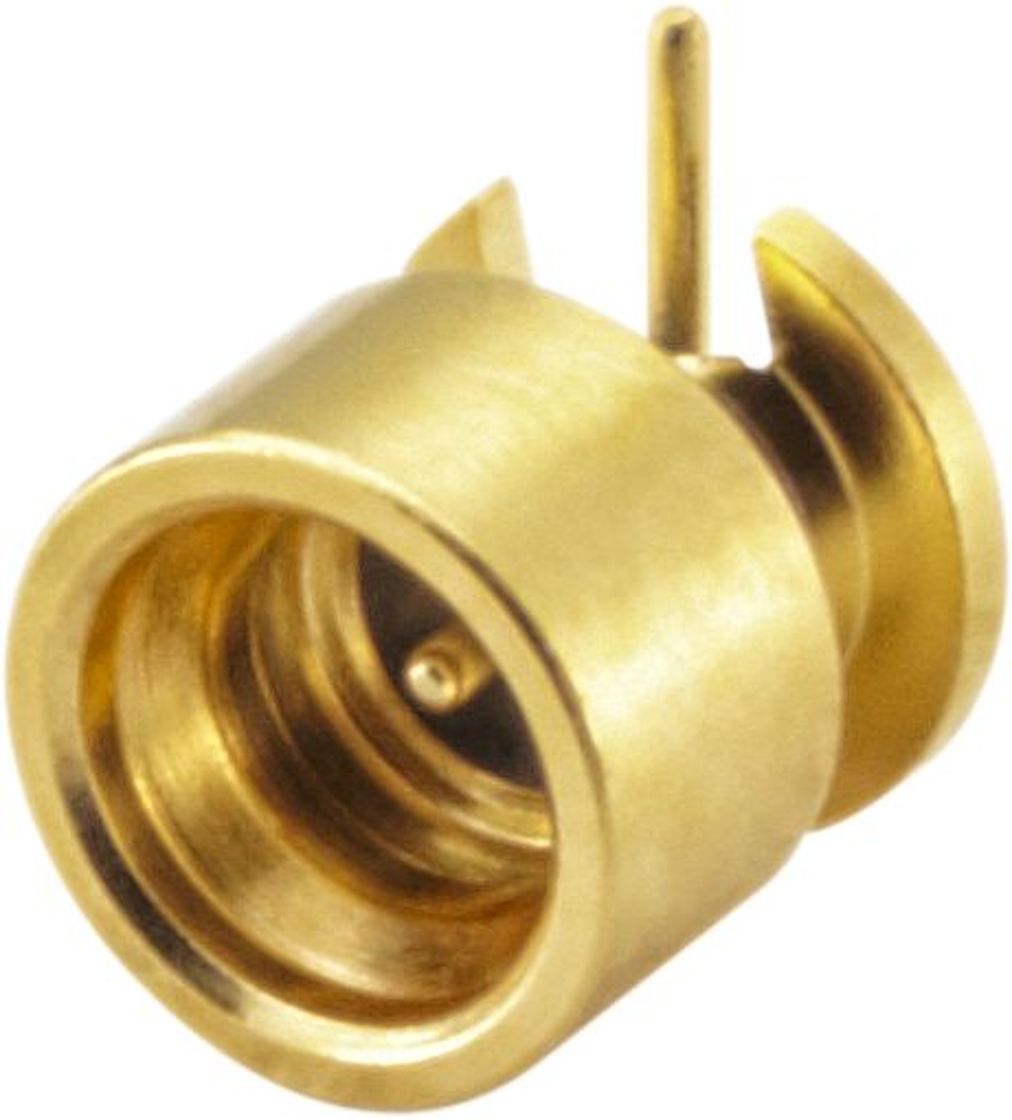

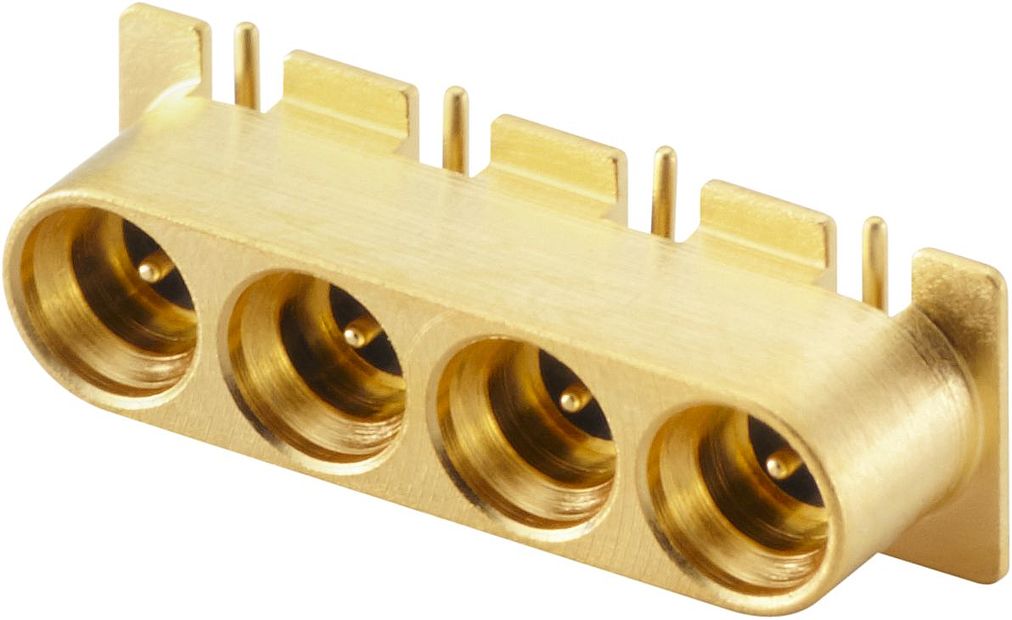

Rosenberger WSMP®PCB connectors, bullets and cable assemblies are extremely compact and capable of handling frequencies up to 100 GHz. WSMP® connectors are about 45 % smaller than standard SMP connectors for allowing high packing density. Featuring a push-on coupling mechanism and enabling a minimum board-to-board distance of 3.05 mm, they are optimized for customer-specific footprints and layout recommendations.

Rosenberger

Features

Impedance 50 Ω
Interface according to Rosenberger WSMP^®
Frequency range DC up to 100 GHz
Return loss ≥ 26 dB @ DC to 26.5 GHz, ≥ 19 dB @ 26.5 to 65 GHz
Mating cycles Full detent ≥ 100, Smooth bore ≥ 500
Minimum board-to-board distance 3.05 mm
Axial misalignment: ± 0.13 mm
Radial misalignment: ± 0.25 mm
Push/Snap-on locking mechanism

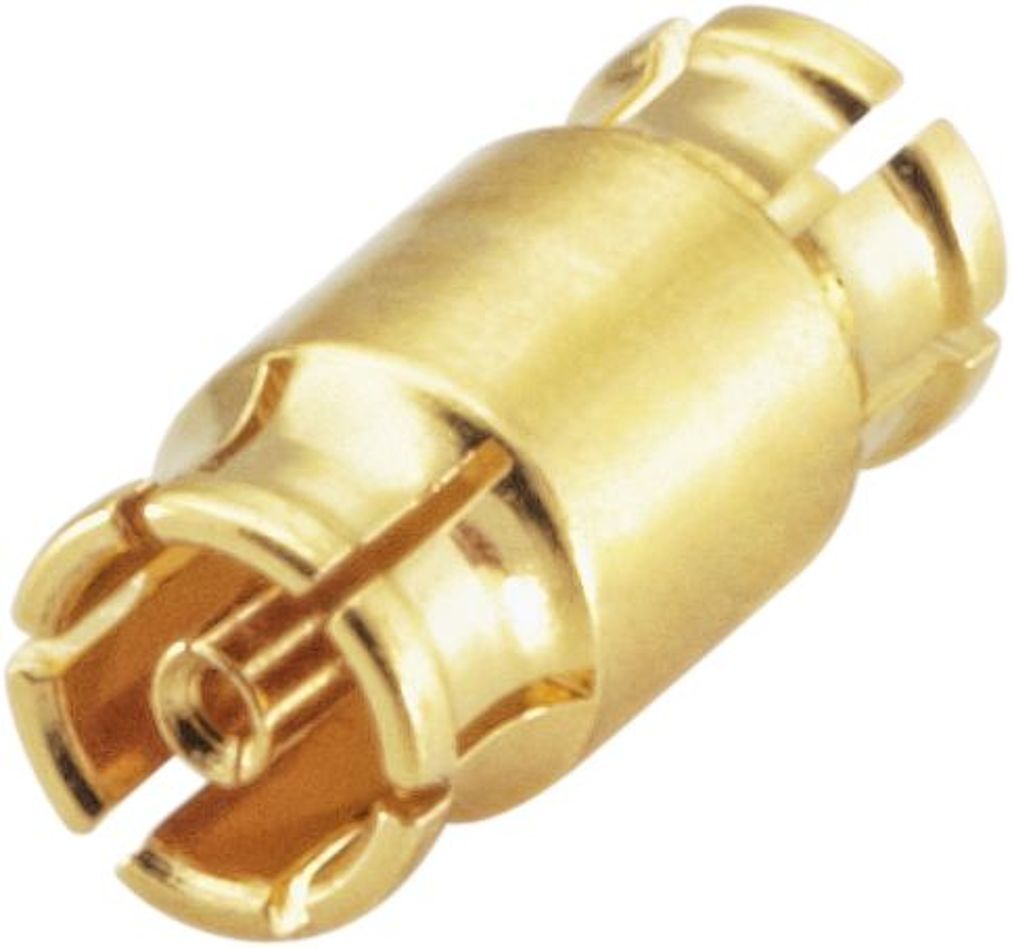

Different detent types at bullet: smooth bore and full detent
