HVR®420

Rosenberger’s new EBC® (Efficient Board Connector) series is the ideal 5G board-to-board and board-to-module RF interconnect solution for active MIMO (Multiple Input Multiple Output) antennas and radios. Outstanding performance, low cost design and high mechanical stability make EBC® the perfect future-proof product for 5G radio interconnections. For applications up to 8 GHz, EBC® connectors fulfill the challenging requirements caused by the exponential data volumes increases in future 5G networks. Essential characteristics include extremely small dimensions, radial and axial misalignments, different holding forces, minimum board-to-board distances, and fast and cost-effective assembly design. A key mechanical design feature is the locating side which is integrated in the bullet. One side has a smooth bore, while the other has a limited-detent design. The single PCB coupler provides a consistent footprint with preloaded outer contacts for ensuring contact optimization, the push/snap-on locking mechanism allows fast and easy disconnection.

Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.

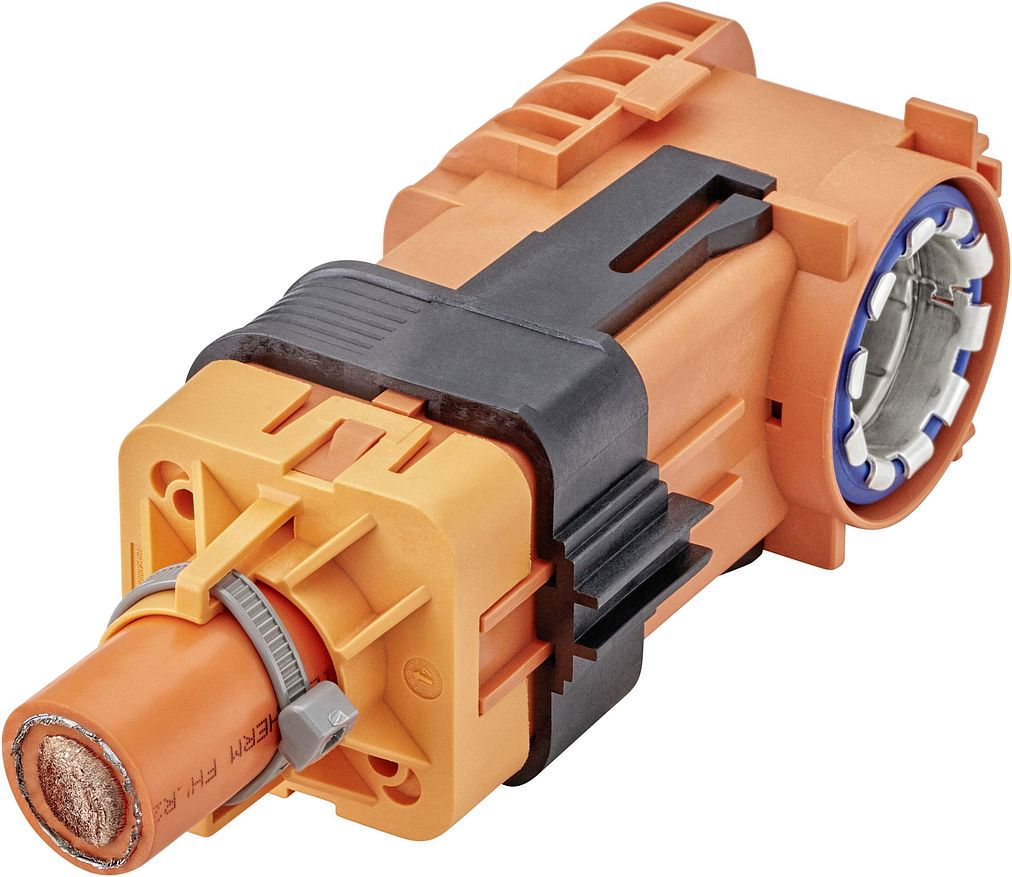

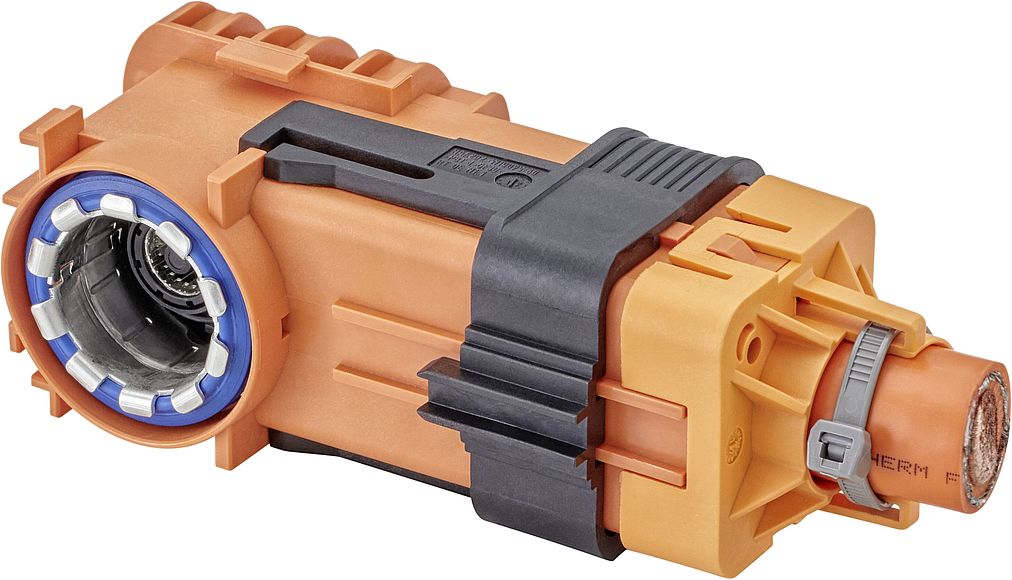

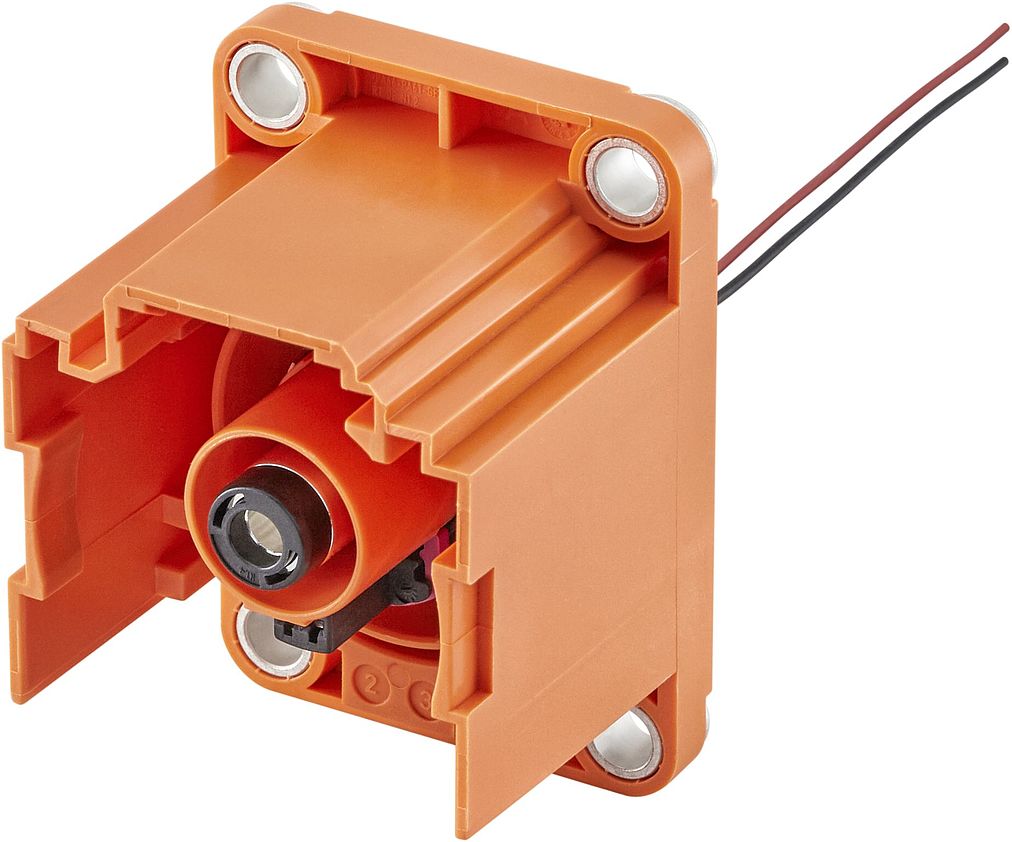

The Rosenberger HVR®300 connector system not only provides a maximum current carrying capacity of 320 A, it takes up minimal space. It features a 2-pole angled coupler for shielded cables and a cable cross section of 70 mm² along with the corresponding header. A cross section of 50 mm² is available on request. The lever locking mechanism is secured with an additional slider (CPA – Connector Position Assurance) to prevent accidental unmating.
