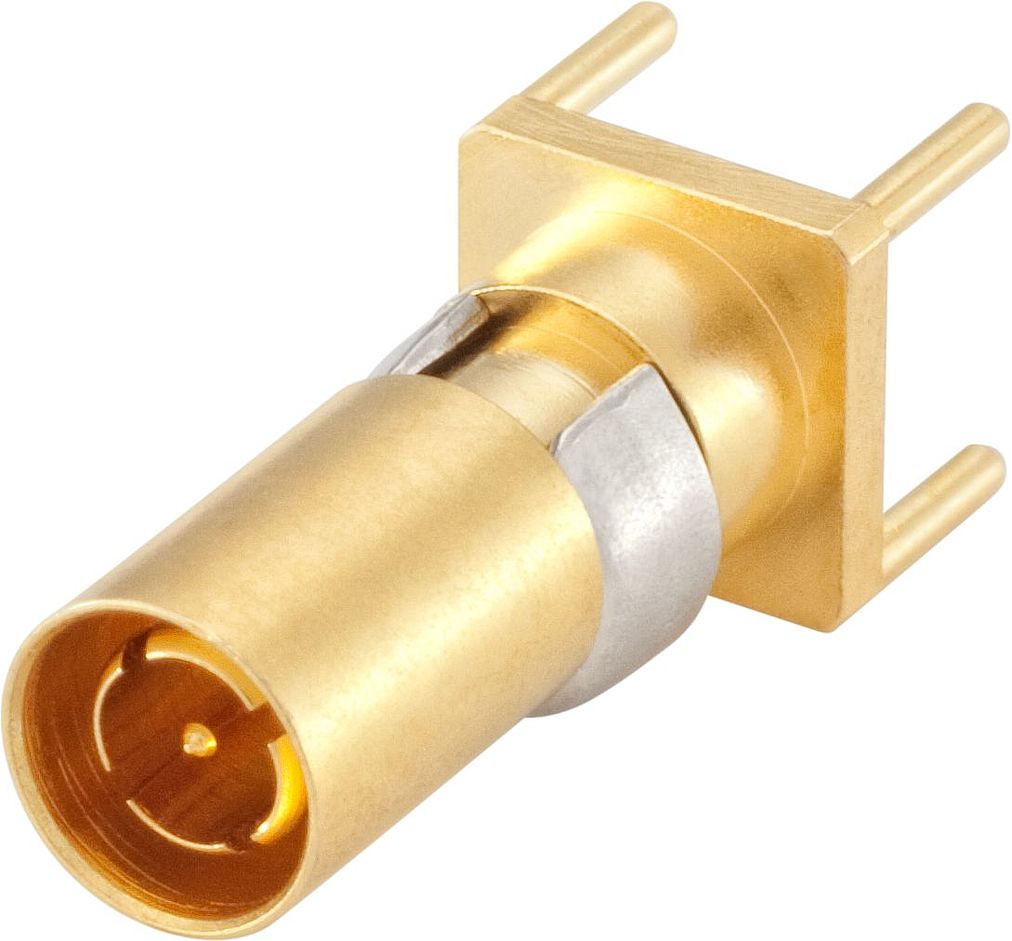

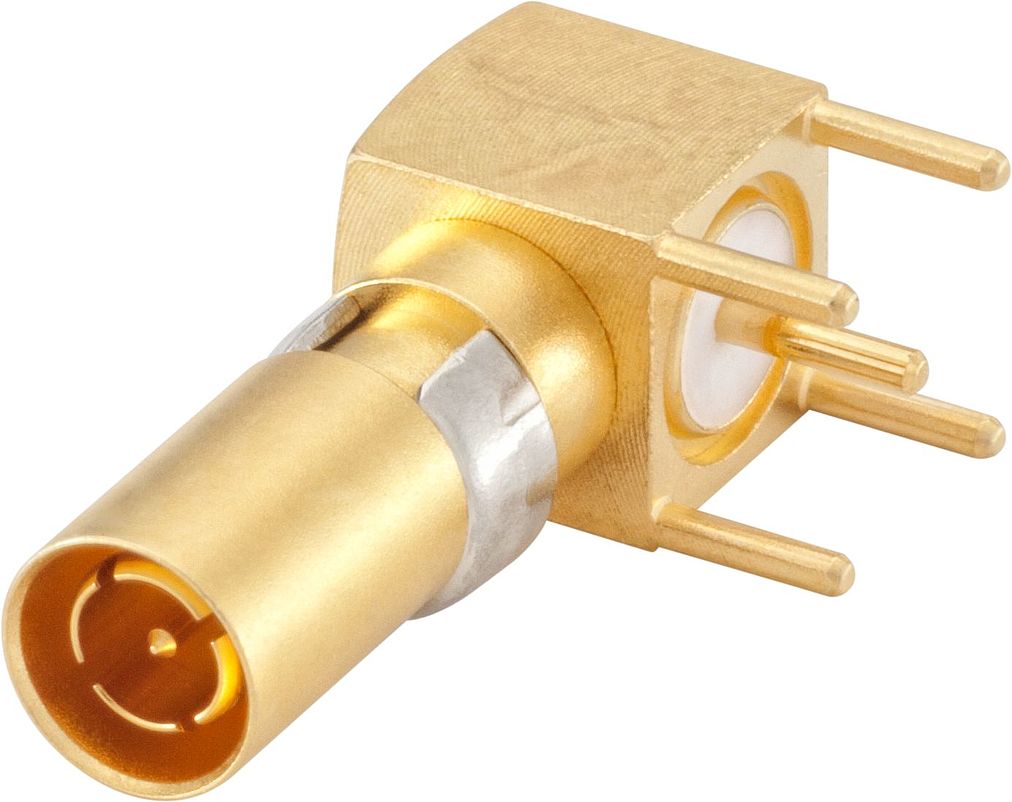

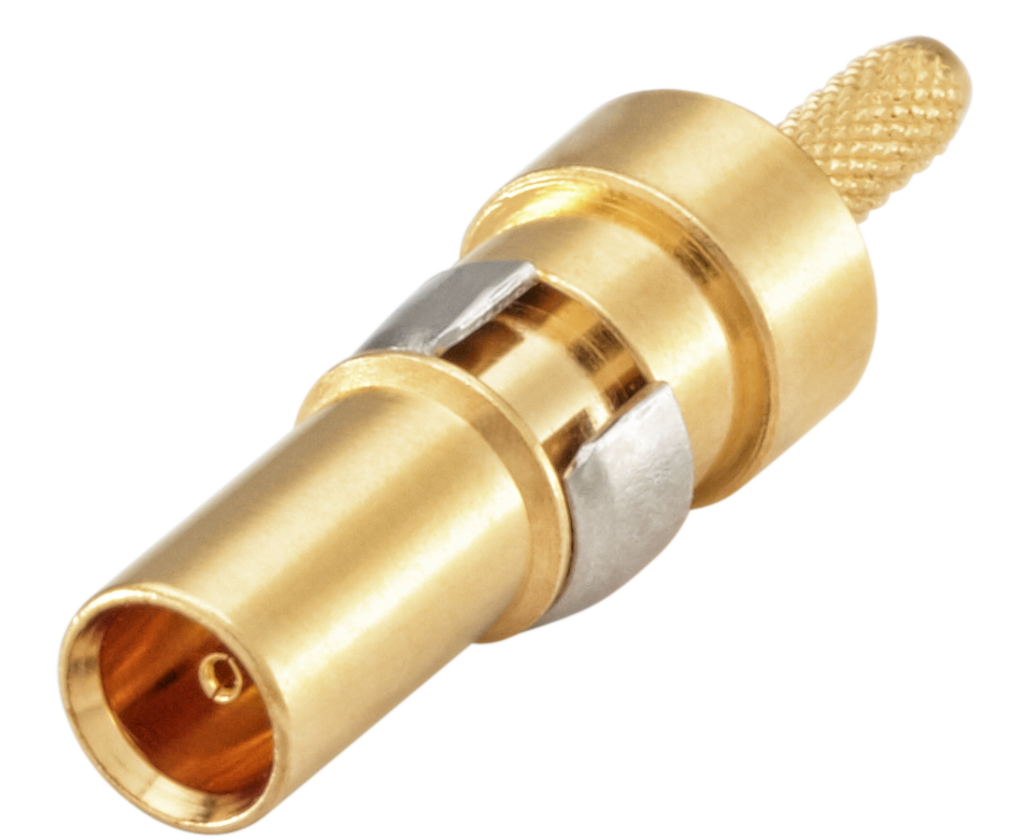

Kesici uçlar DIN 41626

Rosenberger’s new EBC® (Efficient Board Connector) series is the ideal 5G board-to-board and board-to-module RF interconnect solution for active MIMO (Multiple Input Multiple Output) antennas and radios. Outstanding performance, low cost design and high mechanical stability make EBC® the perfect future-proof product for 5G radio interconnections. For applications up to 8 GHz, EBC® connectors fulfill the challenging requirements caused by the exponential data volumes increases in future 5G networks. Essential characteristics include extremely small dimensions, radial and axial misalignments, different holding forces, minimum board-to-board distances, and fast and cost-effective assembly design. A key mechanical design feature is the locating side which is integrated in the bullet. One side has a smooth bore, while the other has a limited-detent design. The single PCB coupler provides a consistent footprint with preloaded outer contacts for ensuring contact optimization, the push/snap-on locking mechanism allows fast and easy disconnection.

The Rosenberger MagneticUSB is an innovative connection series. All standard USB connectors can be very easily connected to computer or mobile devices thanks to intelligent magnet technology. It can also be disconnected very quickly for optimally protecting USB connections.

Rosenberger’s new RPC-1.35* precision connector series meets the growing demand for precision, high-performance RF-connections up to 90 GHz. The range addresses the expanding market for 5G, industrial sensors in the E-Band, millimeter wave sensors for self-driving vehicles, WLAN IEEE 802.11ax and 802.11ay. RPC-1.35 connectors offer a highly robust mechanical design, minimum 3000 mating cycles, high connector repeatability, and maximum return loss values – ideal for ensuring RF measurements in the E-Band without delays. The product portfolio covers semi-rigid and flexible cable assemblies, PCB connectors, test PCBs, cable connectors, in-series and inter-series adaptors, test ports, floating and waveguide-to-coaxial adaptors as well as gauge and calibration kits. *A working group, comprising PTB (Physikalisch Technische Bundesanstalt), Rosenberger, Rohde & Schwarz and Spinner, designed the new 1.35 mm connector to close the gap between 1.85 mm and 1.00 mm connectors. The interface standardization is in progress.

Rosenberger Mini-SMP connectors are extremely small coaxial connectors, approximately 70% of standard SMP size. They are designed for applications up to 65 GHz and mainly for high-speed signal transmission (typically 10 or 40 Gbps). Plugs are available as smooth bore-versions – for plug-in technology and backplane applications – and as vibration resistant full detent types, for the highest mechanical loads such as those found in aerospace engineering. Mini-SMP subminiature connectors are well-proven, offering a high level of flexibility in alignment tolerances and for simplifying the whole production process. Rosenberger Mini-SMP coaxial connectors are mateable with common Mini-SMP connectors as specified by MIL-STD-348A, Fig. 328, as well as GPPO™ (Gilbert Engineering Co., Inc.) and SSMP™ (Carlisle Interconnect Technologies) series. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and also in blisters.
