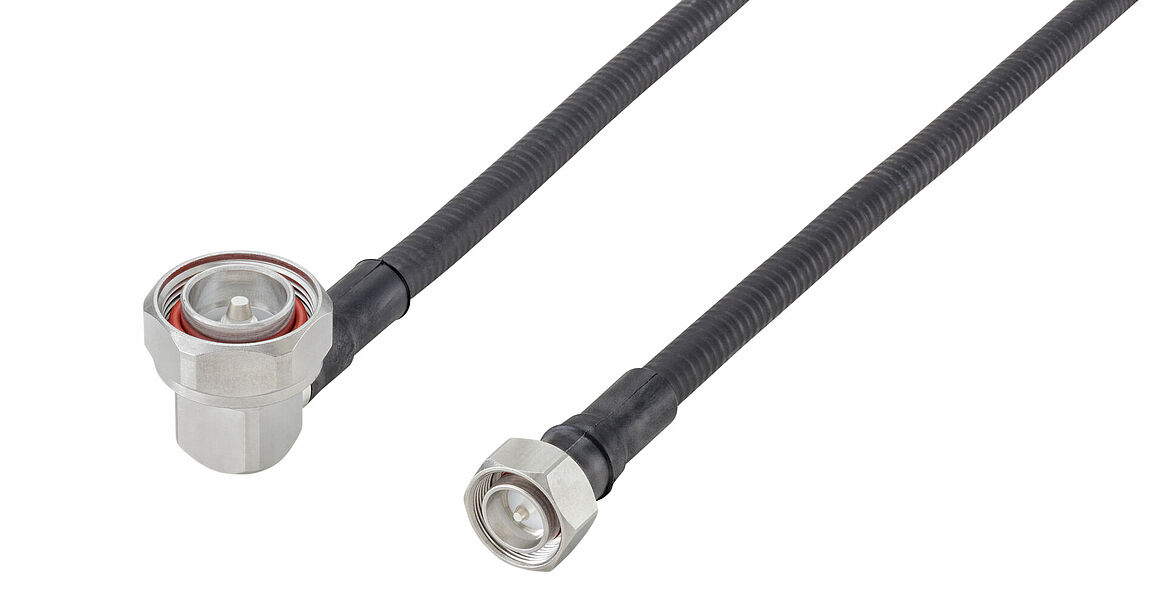

Coax Jumpers

Rosenberger high-temperature connectors are generally used in engine compartments, boilers and ovens. These durable, resilient and customized connector systems are suitable for temperatures up to +450 °C. Rosenberger has the know-how of performing thermal and electrical simulations as well as processing high-temperature-proof materials such as ceramics and stainless steel. Different components including cable assemblies, housing connectors and matched antenna systems are developed in close cooperation with our customers and partners. Customized solutions are available upon request.

Rosenberger QN coaxial connectors are based on the N connector interface. With a frequency range of up to 11 GHz depending on the connector and cable type, the quick-lock mechanism enables reliable and easy connection, 10 times faster than standard N offerings. Ideal for tight spaces such as those found in mobile base stations, the packing density of QN exceeds that of N connectors due to the minimum pitch and toolless assembly. Torque spanners are not required. QN and standard N connectors are not intermateable.

The Rosenberger HPK system can achieve 275 A at 85 °C up to 1000 V. With their excellent vibration and current capacity performance the HPK connectors are well-suited to typical high-voltage electric vehicle applications such as the connection between battery, inverter and PDU. The range includes 1-, 2-, or 3-pole connectors which for maximum flexibility can be used with copper or aluminum cables in four different cable cross sections. Straight and angled cable couplers as well as corresponding headers are available, either with or without HVIL (high-voltage interlock).

Rosenberger HVR®50 connectors are available in straight and angled variants. The additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental disconnection. Despite their small size these connectors achieve a current capacity of approximately 60 A at 85 °C. HVR®50 connectors are mainly used in ancillary units such as electrical heating systems, air-conditioning units, DC/DC converters, and for charging batteries.
