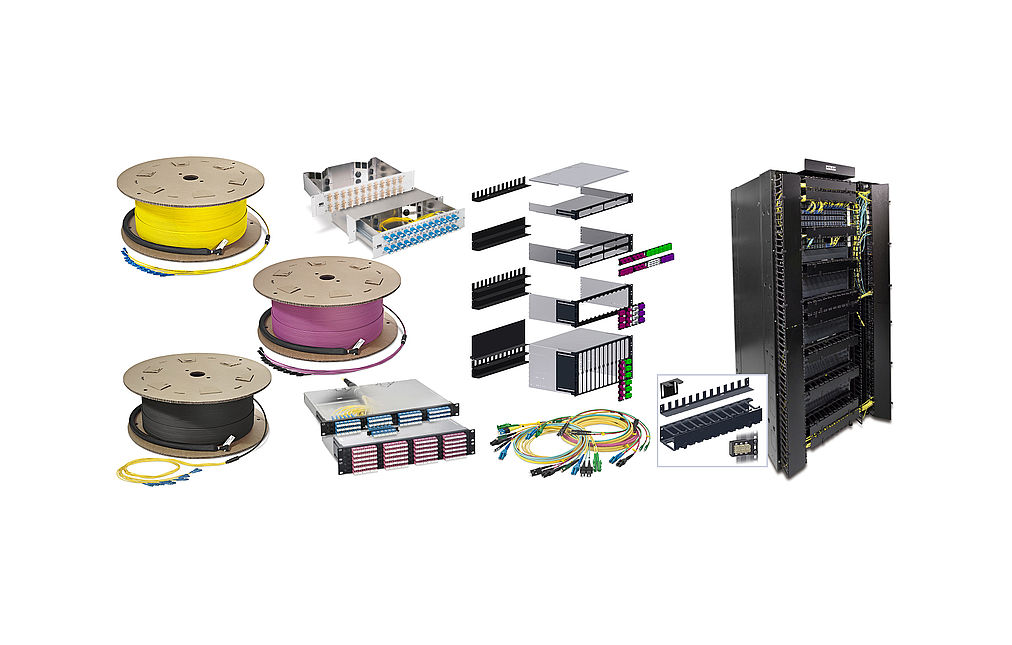

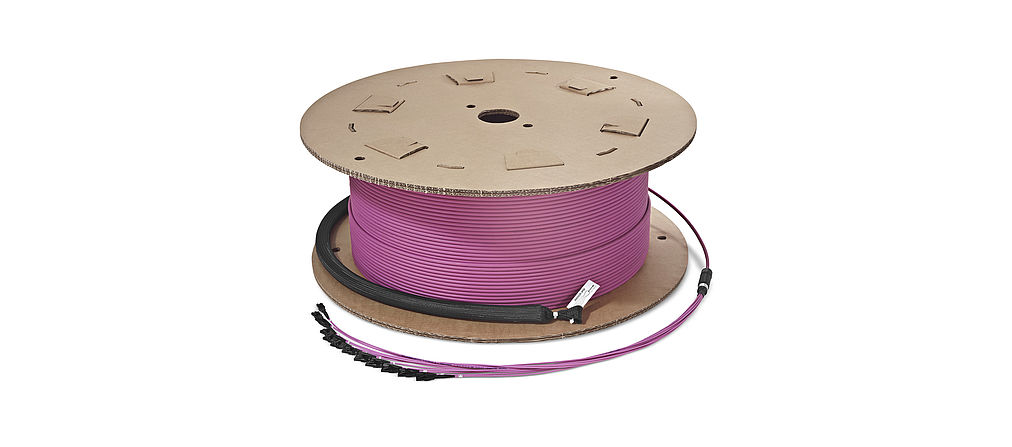

Yüksek fiber sayımı ve modüler Tak ve Çalıştır fiber optik kablolama sistemi

Rosenberger H-MTD® is a 360° fully shielded differential connector system for Ethernet applications. The newly developed system has successfully combined high-performance data transmission, of up to 15 GHz or 20 Gbps, in a compact yet robust automotive grade housing. Apart from ensuring high-bitrate data transmission, savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols. Among others, this makes the Rosenberger H-MTD® highly suited for use by those designing solutions for the automotive industries.

Rosenberger RPC-1.85 precision connectors – with 50 Ω impedance and 1.85 mm outer conductor diameter – are designed for test & measurement applications up to 70 GHz. Delivering outstanding reliability and repeatability performance they are intermateable with common 1.85 mm series and V connectors as well as with RPC-2.40 connectors. This comprehensive product range is suitable for semi-rigid cables and microwave components and includes cable, panel and PCB connectors, adaptors and test & measurement accessories – including RPC-1.85 calibration kits, cables assemblies, measurement equipment, attenuators, sliding loads and airlines.

The Multi-Power connector for field installation from Rosenberger is unique in terms of user-friendliness. The new assembly concept combines secure and reliable connections with a fast and simple cable assembly. Within shortest time the connector can be assembled on cables with various cross-sections (2x 2.5 mm² to 2x 16 mm²) and jacket diameters (Ø 7 – 21.5 mm). This way, the connector can be flexible used for both low-power and high-power applications (up to 55 A/60 V DC). Regardless the simple assembly process, the connector ensures highest quality for outdoor use, EMI shielding and low contact resistances.
