RPC-SL
Product code VDKLHA

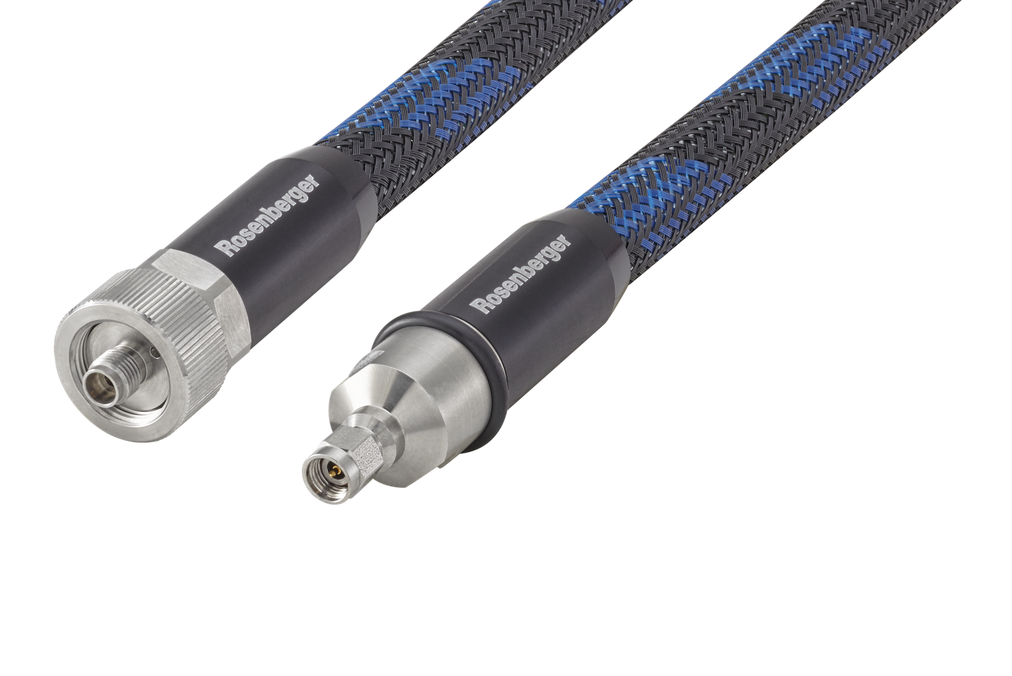

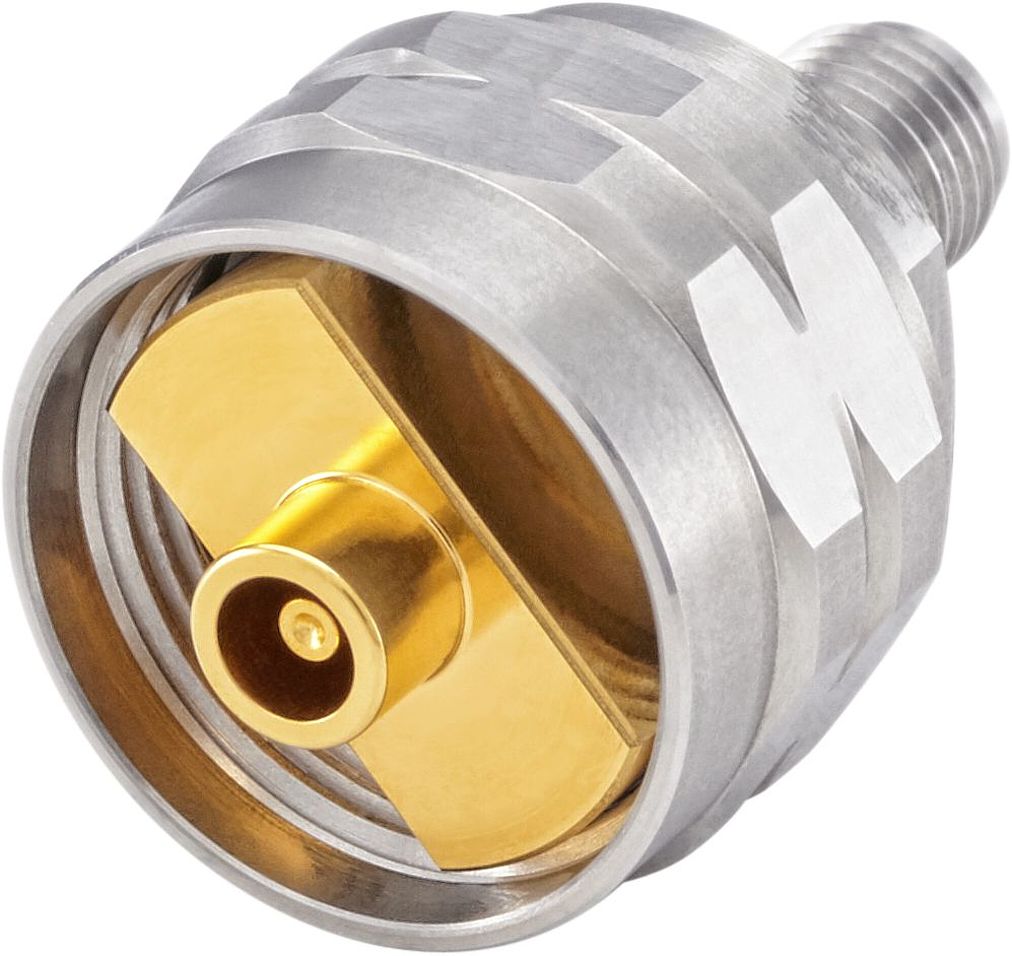

The Rosenberger RPC-SL series are interchangeable port connector systems for use with test equipment where test ports are frequently mated and re-mated. Under such heavy usage, Rosenberger RPC-SL interchangeable port connectors allow the equipment/device interface to be fully protected from potential damage, avoiding the risk of costly repairs. The RPC-SL port connector includes a panel mounting half and a sexless interface which features two spring-loaded butt contacts. This ensures no wear occurs during mating and eliminates the possibility of accidental damage from mismatching of connector halves. Furthermore, the interface between the panel mount and the adaptor is slotted, preventing the mating faces from rotating and possible damage. The RPC-SL portfolio offers both 26.5 GHz and 40 GHz versions. While adaptors can be interchanged and are available in different connector series, the connector heads in these two ranges are not compatible and can only be used with their own system.
- Impedance 50 Ω
- Interface according to Rosenberger Interchangeable port connector system
- Mating cycles ≥ 3000
Specification Sheet
Rosenberger provides a variety of snap-in D-Sub coaxial and power inserts for fast, reliable mixed card edge chassis. Their small dimensions allow high packing densities as well as easy connection. A combination including power connectors is also available on request. D-Sub Coax Inserts and cable connectors 50 Ω are designed for use in mixed card edge connections in accordance to D-Sub. The maximum frequency is approximately 2 GHz. Available on request. Power Inserts meet the requirements of DIN 41626-T1 and are designed for use in mixed card edge connections in accordance to DIN 41612 or D-Sub. Contact current 10 A, 20 A, 30 A, 40 A. Available on request.
Item Successfully Added to Cart
Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.
Item Successfully Added to Cart
Rosenberger SMP Infinity is the innovative and highly compact PCB connector series with a one-step locking mechanism for delivering maximum performance for a wide range of applications up to 40 GHz. The series is available as cable, PCB and bulkhead connectors, as well as test adaptors and cable assemblies.
Item Successfully Added to Cart
The Rosenberger Spring Loaded Coax System is designed to make quick, reliable and low abrasion PCB connections – up to 18 GHz (SMA interface) or up to 40 GHz (RPC-2.92 interface) – to single-layer or multi-layer printed circuit boards with the microwave layer on top.
