Zinc/Zn
Optical Test Equipment

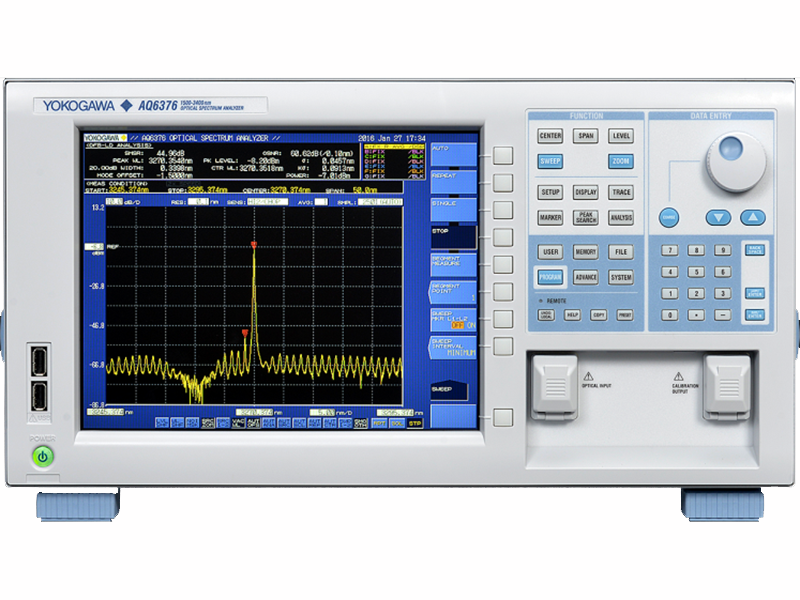

AQ6376 Three Micron Optical Spectrum Analyzer 1500 - 3400 nm
Product code 1OG5OQ
The AQ6376 is the latest version of our bench-top optical spectrum analyzer extending the wavelength coverage well beyond the NIR range of our previous models into the MWIR region from 1500 to 3400 nm. Popular applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx), and hydrocarbon gas (CxHy) for environmental studies. Similar to the long wavelength model, it offers the added benefits of gas purging input ports / output ports, a built-in cut filter for high order diffracted light, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.
- Long wavelength range: 1500 to 3400 nm

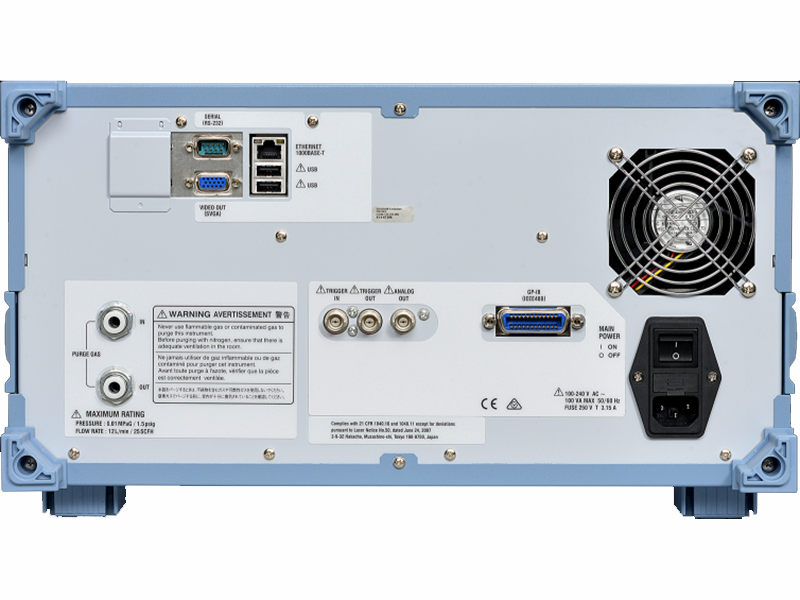

- Gas purging ports to reduce water vapor effects
- Built-In cut filter for high order diffracted light
- Double Speed Mode to further enhance fast measurement speed
- High sensitivity down to -65 dBm
- High resolution to 0.10 nm
- Wide close-in dynamic range (55dB)
- Fast auto-calibration
- Free space optical input for maximum flexibility, low maintenance, and high reliability
- Applicable to single-mode and multimode fibers
- Excellent performance for environmental gas sensing Laser Spectroscopy
- Indispensable tool for R&D and manufacturing of optical devices in the wavelength range from telecom band to 3.4μm
Specification Sheet
The AQ6373B is one of the latest additions to the AQ6370 Series of Optical Spectrum Analyzers. With the ability to provide high speed, accurate analysis of the short wavelength range between 350nm and 1200nm, this OSA is well suited for a broad range of applications. The AQ6373B can accelerate the development and manufacturing of short wavelength lasers, passive devices and LEDs as well as equipment that uses these devices for the biomedical, material processing, consumer product and telecommunications markets. With built in color analysis capabilities and remote command compatibility with the AQ6315, the AQ6373B provides an upgrade of capabilities, speed and performance for current AQ6315 users.
Item Successfully Added to Cart
The AQ2200-131 and AQ2200-132 are single and dual channel tunable light source modules. The output wavelength can be conveniently set to the predefined DWDM grid channels.
Item Successfully Added to Cart
Light Sources and Optical Power meter in one unit. Designed for field operations with a 5.7" screen, yet weighing under 3.3lbs / 1.5kg, the AQ1100 provides a USB port for data storage and optional PING test function and Visible Fault Light. It can be configured for standard power measurements, high power measurements or FTTH with 1490/1550nm parallel measurements.
Item Successfully Added to Cart
The AQ6370E is the new model in Yokogawa's most popular telecom class OSA. With a versatile wavelength range of 600 nm to 1700 nm, it is ideal for both telecom and general purpose applications. The unique free-space input design allows him to test both DWDM-class single-mode and VCSEL-sourced multimode fibers in one single model. The new high-speed measurement mode, high close-in dynamic range mode, touch panel, and APP function greatly improve measurement efficiency. Wavelength range：600 to 1700 nm Wavelength accuracy：±0.008 nm typ. Wavelength resolution：0.02 nm Close-in Dynamic range：78 dB typ. Level range：+20 to -90 dBm Up to 2x faster measurement: SMSR mode Sharper spectrum measurement: HCDR mode Large touchscreen LCD
