Mini-SMP
Product code XZO5JS

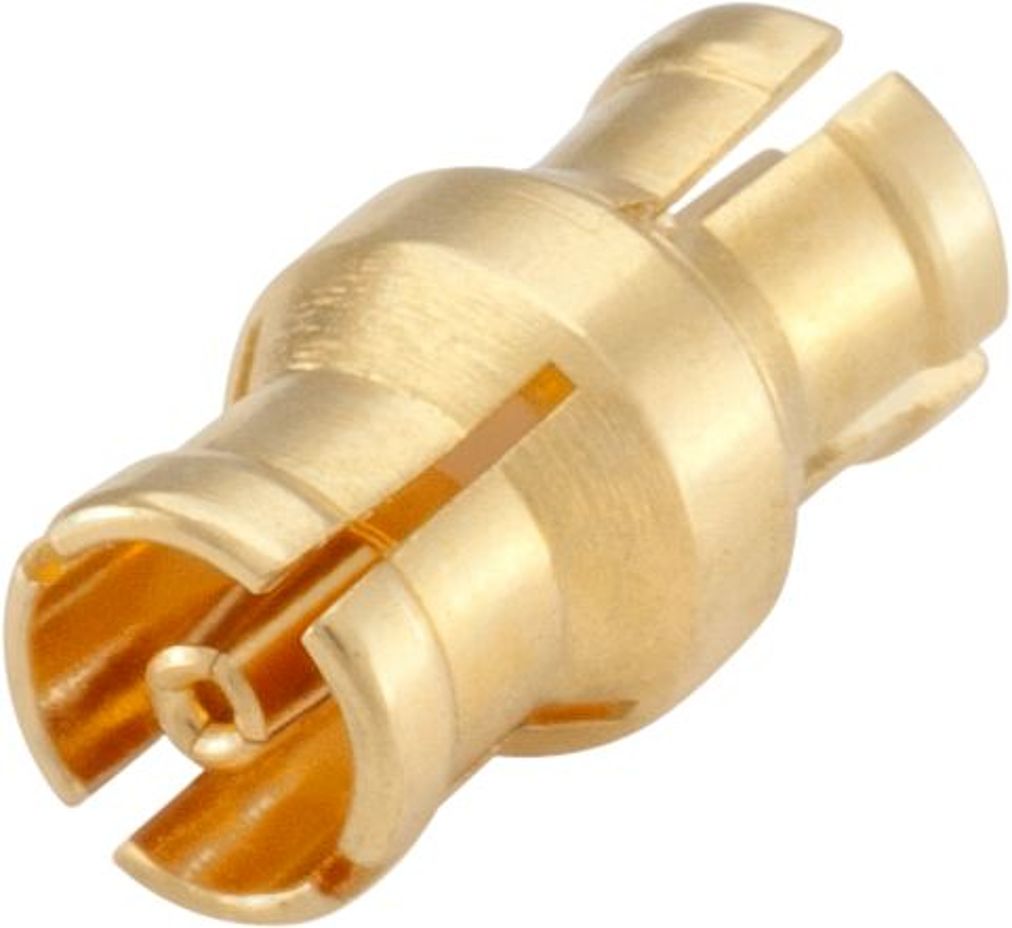

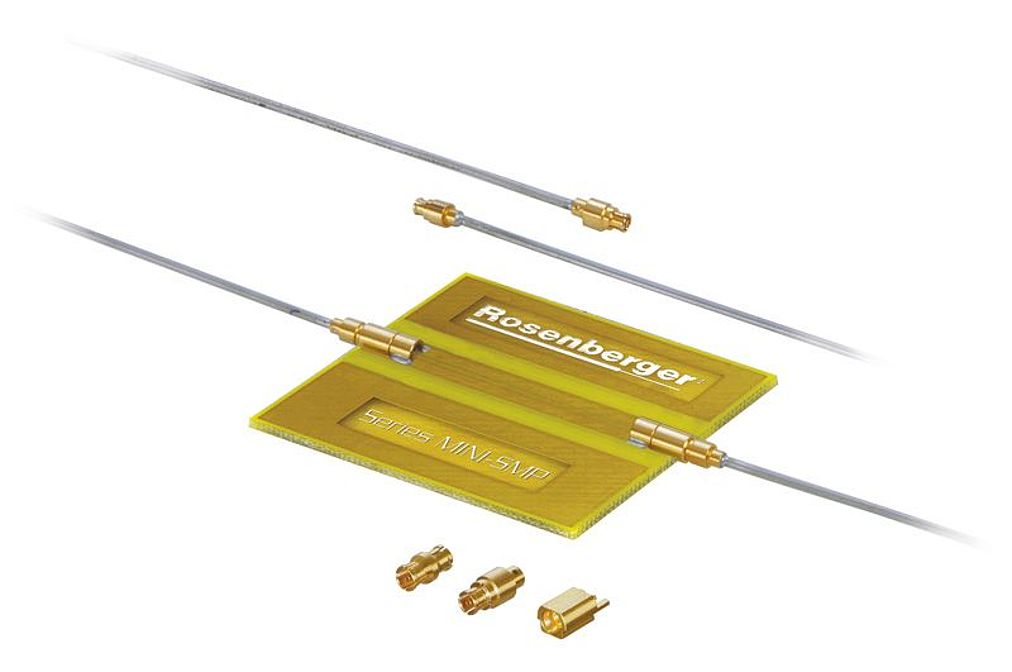

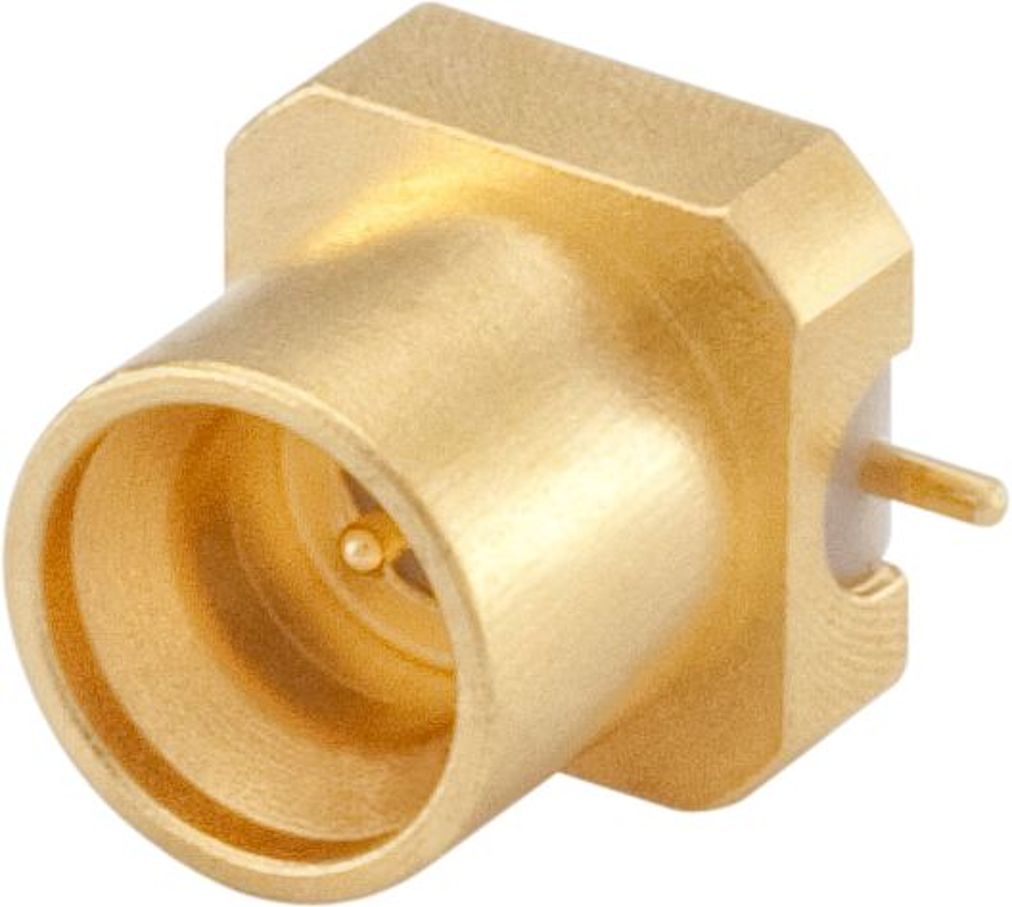

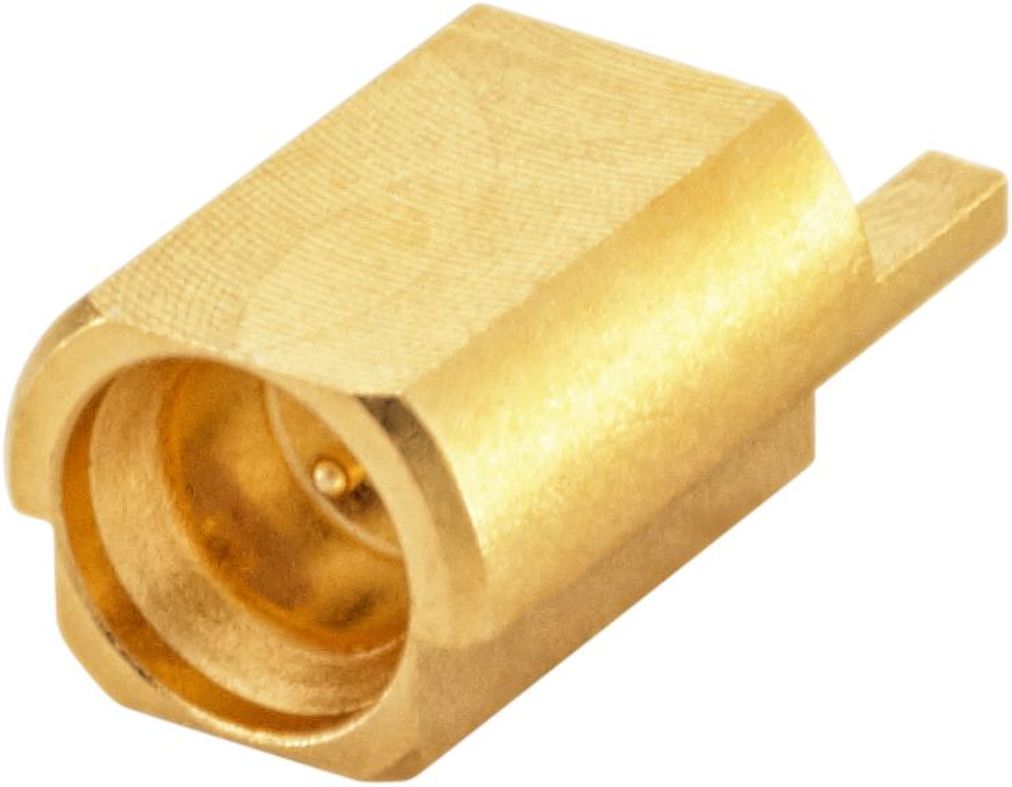

Rosenberger Mini-SMP connectors are extremely small coaxial connectors, approximately 70% of standard SMP size. They are designed for applications up to 65 GHz and mainly for high-speed signal transmission (typically 10 or 40 Gbps). Plugs are available as smooth bore-versions – for plug-in technology and backplane applications – and as vibration resistant full detent types, for the highest mechanical loads such as those found in aerospace engineering. Mini-SMP subminiature connectors are well-proven, offering a high level of flexibility in alignment tolerances and for simplifying the whole production process. Rosenberger Mini-SMP coaxial connectors are mateable with common Mini-SMP connectors as specified by MIL-STD-348A, Fig. 328, as well as GPPO™ (Gilbert Engineering Co., Inc.) and SSMP™ (Carlisle Interconnect Technologies) series. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and also in blisters.
- Interface according to MIL-STD 348A, fig. 328
- Frequency range DC up to 65 GHz
- Return loss: ≥ 26 dB @ DC to 26.5 GHz; ≥ 17 dB @ 26.5 GHz to 50 GHz; ≥ 14 dB @ 50 GHz to 65 GHz
- Impedance 50 Ω
- Mating cycles full detent ≥ 100 smooth bore ≥ 500
- Minimum board-to-board distance 7.94 mm
- Axial misalignment ± 0.1 mm
- Radial misalignment 4°
- Snap-on locking mechanism
The 4.3-10 series is a low PIM (Passive Intermodulation) system for frequencies up to 12 GHz for use in mobile communication applications. It is designed to meet the growing performance needs of mobile network equipment, when connecting, for example, RRUs to antennas. Features include compact connector sizes, best electrical performance, low PIM and coupling torque as well as easy installation. Offering three different coupling mechanisms – screw, quick-lock/push-pull and hand-screw – the universal jack design is mateable with all plug types.
