RosenbergerHPD®
Product code 0FQATT

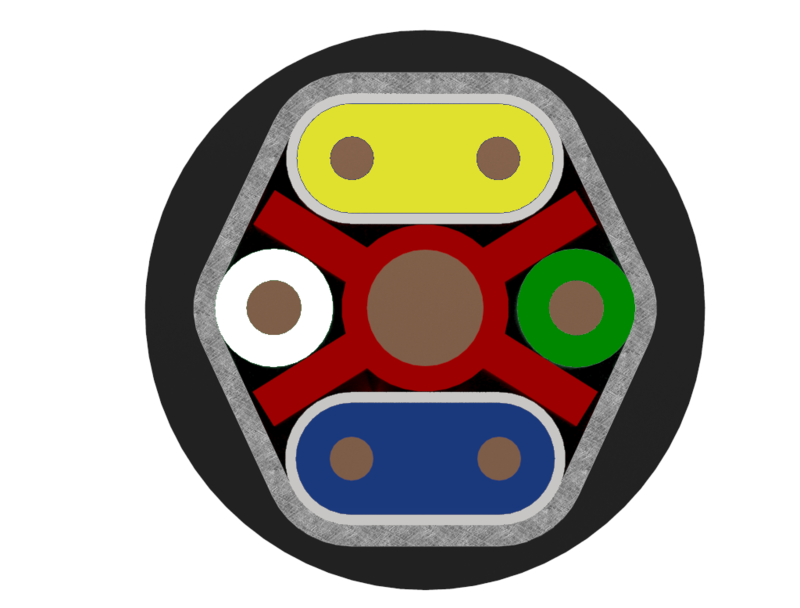

The RosenbergerHPD® universal multicore datalink connection system is optimized for data transmission up to 10 Gbps. In addition to high data performance, the centrally positioned power lane offers a power reserve of up to 100 W / 5 A – in combination with the cable shield as the ground lane. Providing data and power to complex systems through a single interface delivers several benefits including reduced costs and installation footprint. This robust, fully shielded connector is ideally suited to harsh environmental conditions, such as automotive applications, where frequent high data transmission and ampacity is required. Combined with Rosenberger’s specially designed multicore cable, featuring an optimized layout for low attenuation, virtually interference- and crosstalk-free performance is assured.
- Impedance 90 (+-10) Ohm
- Frequency range DC up to 10 GHz
- High data rates up to 10 Gbps
- Current capacity 5 Ampere
- Voltage 20 V
- Performance 100 Watt
- Mating cycles ≥ 25
- Optimized interface layout for low crosstalk
- Fully shielded interface
- Mechanically robust design
- Shock and vibration proof
- For highest automotive requirements – LV 214 Applications
Specification Sheet
Rosenberger WSMP®PCB connectors, bullets and cable assemblies are extremely compact and capable of handling frequencies up to 100 GHz. WSMP® connectors are about 45 % smaller than standard SMP connectors for allowing high packing density. Featuring a push-on coupling mechanism and enabling a minimum board-to-board distance of 3.05 mm, they are optimized for customer-specific footprints and layout recommendations.
Item Successfully Added to Cart
Rosenberger HVR®50 connectors are available in straight and angled variants. The additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental disconnection. Despite their small size these connectors achieve a current capacity of approximately 60 A at 85 °C. HVR®50 connectors are mainly used in ancillary units such as electrical heating systems, air-conditioning units, DC/DC converters, and for charging batteries.
Item Successfully Added to Cart
The Multi-Power connector for field installation from Rosenberger is unique in terms of user-friendliness. The new assembly concept combines secure and reliable connections with a fast and simple cable assembly. Within shortest time the connector can be assembled on cables with various cross-sections (2x 2.5 mm² to 2x 16 mm²) and jacket diameters (Ø 7 – 21.5 mm). This way, the connector can be flexible used for both low-power and high-power applications (up to 55 A/60 V DC). Regardless the simple assembly process, the connector ensures highest quality for outdoor use, EMI shielding and low contact resistances.
Item Successfully Added to Cart
The cable construction is similar for all cable sizes: Inner conductor, foam dielectric, outer conductor and outer jacket. The cables are available as standard with either a PE jacket for outdoor installations or in a flame retardant and halogen-free version to comply with indoor requirements for health and safety, IEC 60332 and CPR-EN 50575.
