Zinc/Zn
Rf Products & Telecom Towers

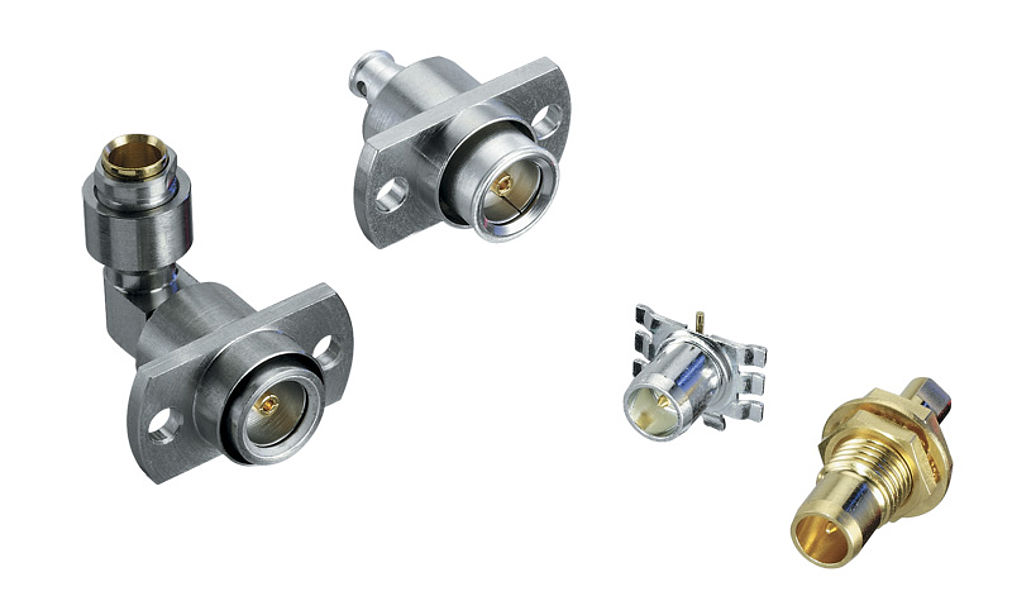

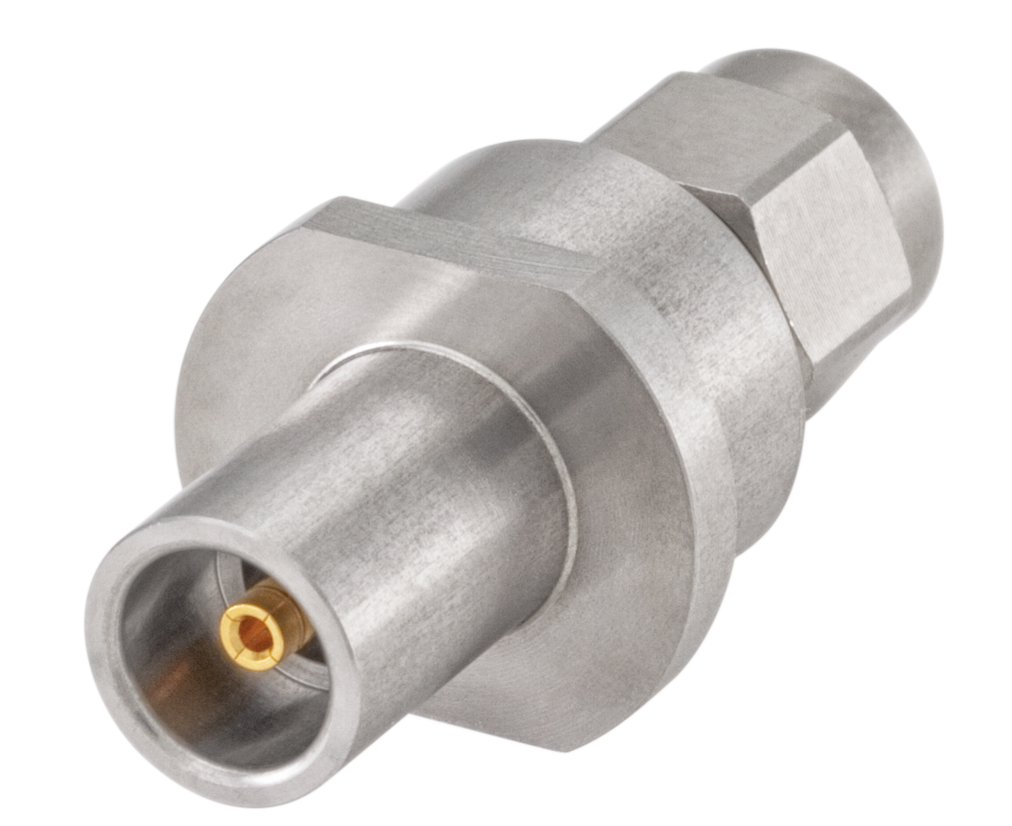

RPC-SP
Product code MIGWPG
Rosenberger RPC-SP 50 Ω precision connectors are designed for applications up to 22 GHz where quick and reliable interconnects are essential. Intermateable with OSP and BMA connectors, the floating construction allows compensation for axial and radial misalignment while the innovative blind mate self-finding mechanism ensures fast, easy connection and disconnection, bringing significant time and cost reductions. Furthermore, tightening the connection requires no additional tooling. RPC-SP connectors are therefore ideal for use where space is at a premium such as in many rack and plug-in applications. The product range comprises cable, panel and PCB connectors, adaptors to other coaxial connector series, airlines as well as test & measurement accessories such as RPC-SP calibration kits, test cables or measurement equipment (open – short – load).
- Impedance 50 Ω
- Interface according to IEC 60169-33
- Frequency range DC up to 22 GHz
- Return loss > 26 dB @ DC – 22 GHz
- Mating cycles > 1000
- Air dielectric with PTFE bead
Specification Sheet
Rosenberger MCX 50 Ω coaxial connectors feature a snap-on locking mechanism. They are mainly applied in RF cable connections up to 6 GHz such as those found in fixed and wireless communication systems. MCX connectors offer high reliability, long service life, as well as easy and fast mounting. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and in blisters. MCX connectors with 75 Ω characteristic impedance are available on request.
Item Successfully Added to Cart
Rosenberger RPC-2.40 connectors – high reliability and outstanding repeatability – are designed for precision test & measurement applications up to 50 GHz. With 50 Ω impedance and 2.40 mm outer conductor, they are intermateable with many other 2.40 mm series connectors such as APC-2.40, OS-50, HP-2.40 or RPC-1.85 and V connectors. A wide range of RPC-2.40 cable and PCB connectors, adaptors and interchangeable port connectors is available as well as test & measurement accessories. These include RPC-2.40 calibration kits, test cables and measurement equipment.
Item Successfully Added to Cart
Rosenberger offers a wide range of low-PIM transmission line devices to support high quality RF transmission line designs and deployments, and high performance TMAs to ensure high data through-put and thereby less dropped calls and improved network quality.
