SnapN
Product code LMU51B

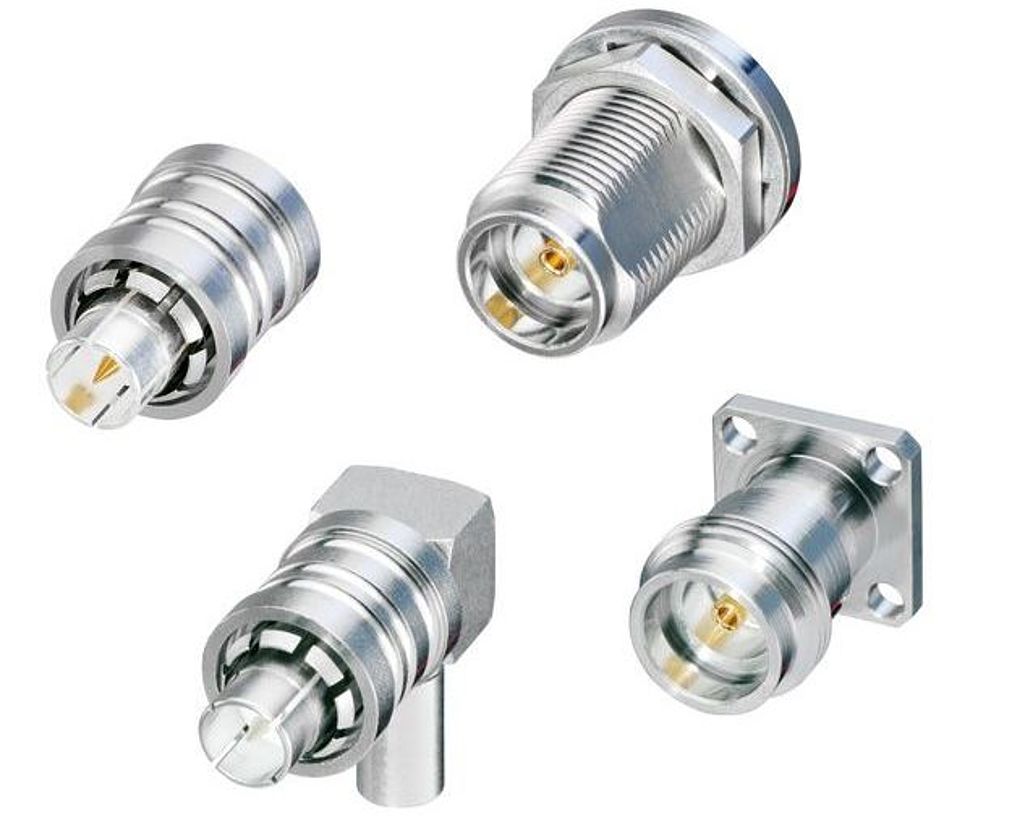

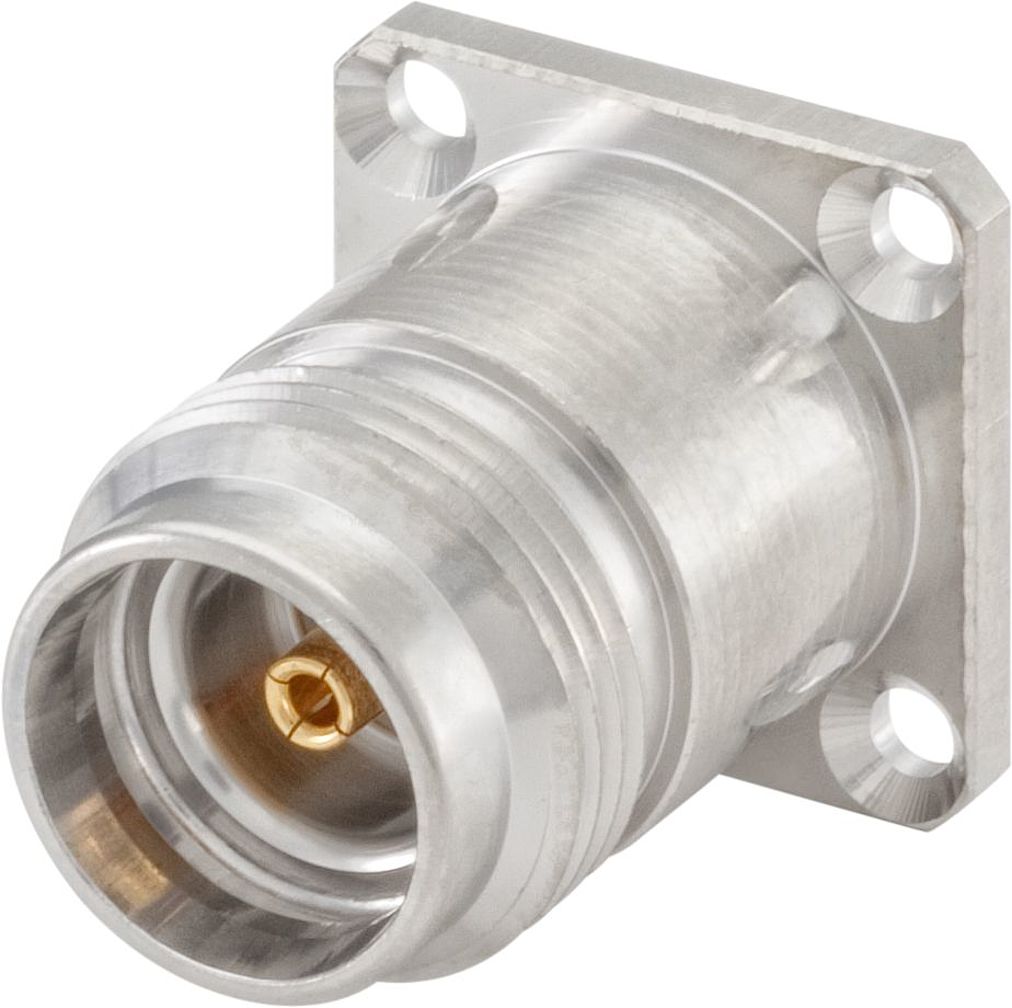

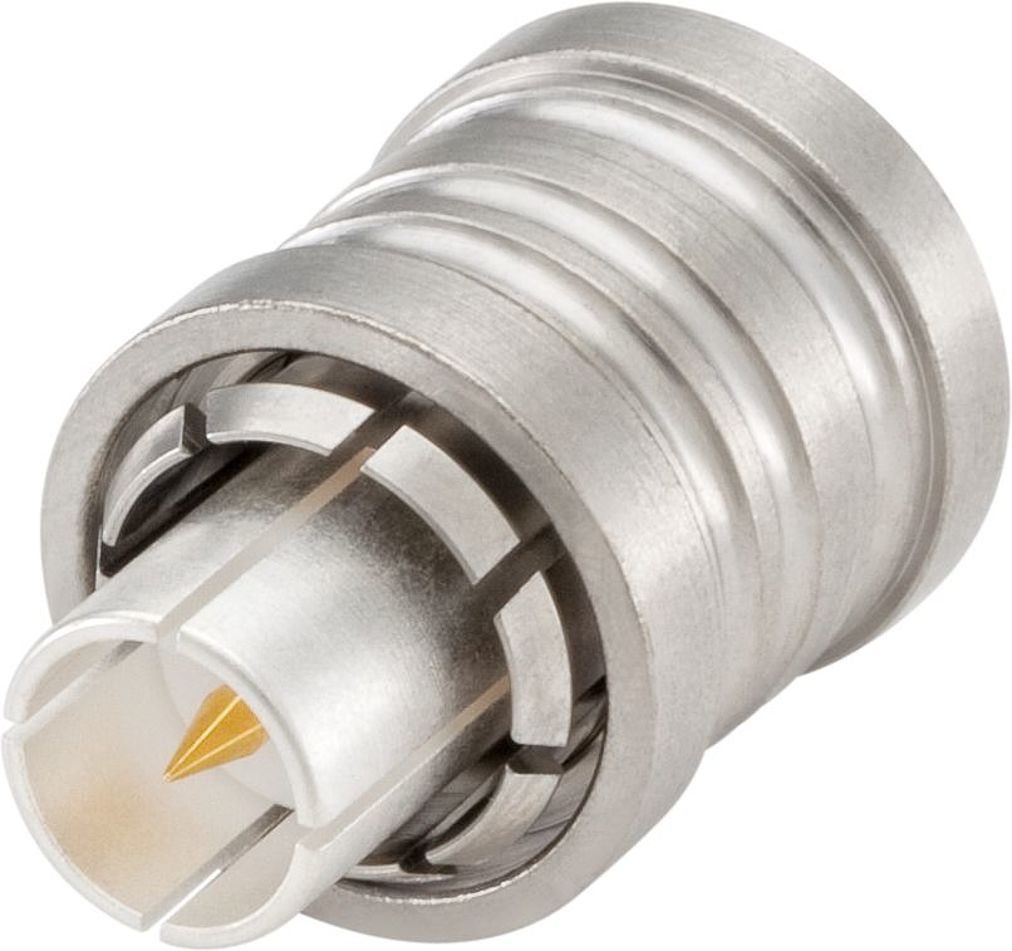

Rosenberger SnapN coaxial connectors are ideal for space-constrained mobile base station applications up to 11 GHz. The outer diameter of 16 mm – smaller than the standard N interface – allows higher packing densities while the special quick-lock mechanism enables reliable and easy connections – 10 times faster than Standard N. SnapN jacks (female) and Standard N plugs (male) are intermateable. Assembly tools are not necessary.
Features
- Impedance 50 Ω
- Interface according to Rosenberger SnapN, Female according to IEC 61169-16, CECC 22210, MIL-PRF-39012
- Frequency range DC to 11 GHz
- Return loss (cable connector straight)
- ≥ 32 dB @ DC to 3 GHz, ≥ 25 dB @ 3 GHz to 6 GHz, ≥ 20 dB @ 6 GHz to 11 GHz
- Minimum pitch 16 mm
- Flexibility 360° turnable
- Mating cycles ≥ 200
- SnapN female mateable with N male
- Quick-lock mechanism
1.6-5.6 connectors perform at 75 Ohm up to 4/12 GHz and are characterized by high mechanical and electrical stability. They are mainly used for reliable transmission of high bit-rates. IInd and IIIrd generation 1.6-5.6 connectors are intermateable and feature different coupling mechanisms for allowing male types to be connected to all female types. The screw-on coupling version provides positive, familiar mating, while the quick-lock/push-pull coupling version enables quick installation. This series complies with CECC 22240 standards.
Item Successfully Added to Cart
UHF* coaxial connectors with geared screw locking frontal interlocking teeth and without defined impedance are intended for very low frequency applications up to 300 MHz. They are intermateable with “banana” connectors. *UHF = Ultra High Frequency, when developed in the 1930s, in fact today even wrong.
