Çok Bağlantı Noktalı Mini Koaksiyel
Ürün Kodu UPXXWH

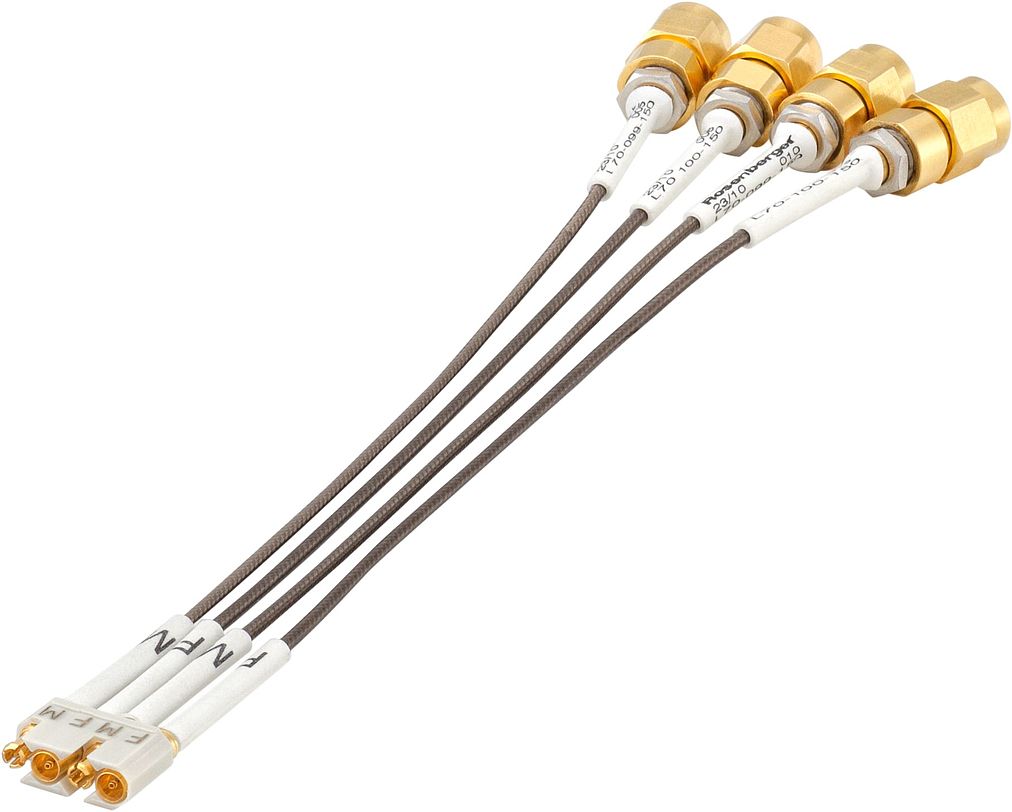

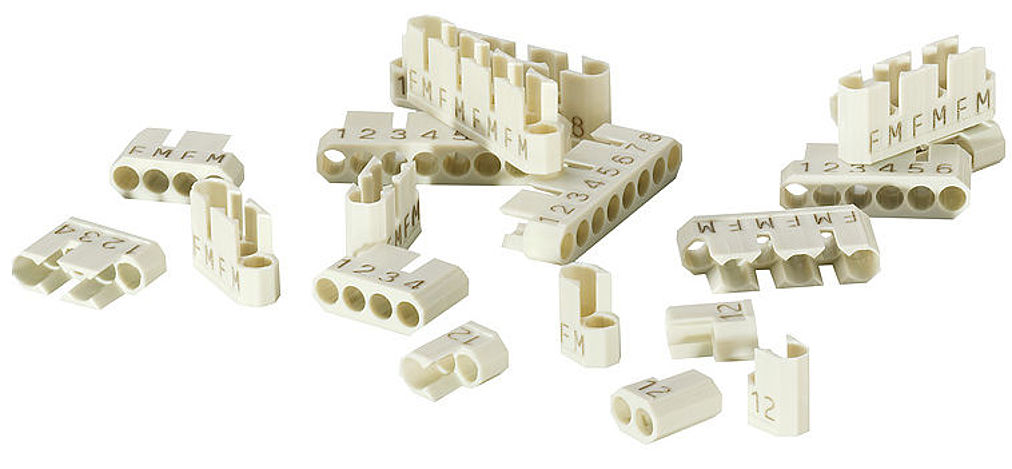

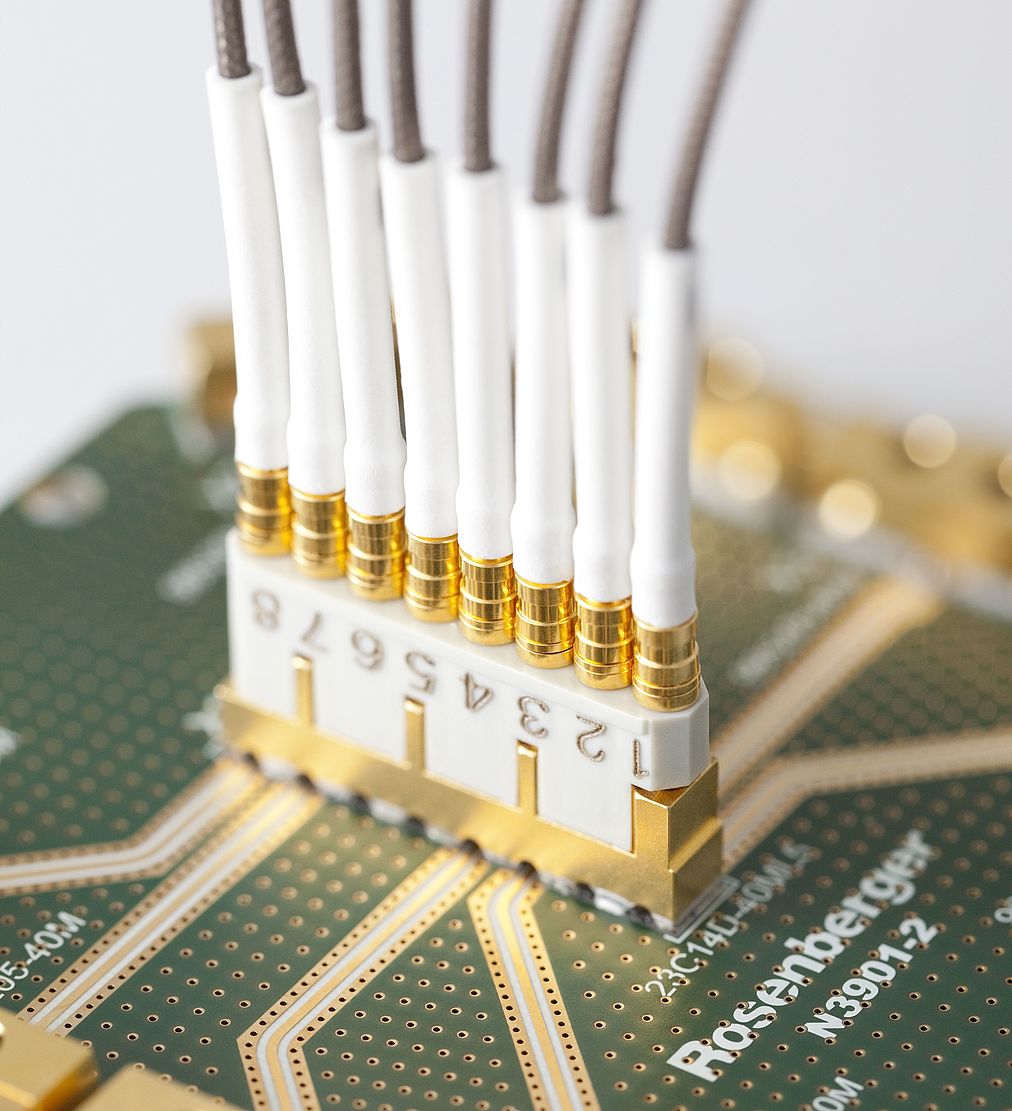

Rosenberger provides a wide range of Multiport Mini-Coax connectors and cable assemblies for addressing the challenging technological demands of the semiconductor test equipment industry. For both 20 and 40 GHz applications, the extensive standard range comprises PCB connectors, purpose-designed plastic-housings and pre-assembled cable assembly sets. This ensures cable assembly configurations that precisely meet customer-specific test requirements. Board-to-board connections can be applied in very limited spaces with the advantages of coaxial shielding while a handy extraction tool ensures mating and demating can be done quickly and easily onsite. The cost-effective injection moulded housings for connection to one side of the PCB are available with 2, 4, 6 or 8 channels and allow the mixing of straight and right angle Mini-Coax cable pairs. Interface dimensions are based on Rosenberger standard Mini-Coax connectors.
- Impedance 50 Ω
- Interface according to Rosenberger Mini-Coax
- Frequency range DC to 20 GHz and DC to 40 GHz
- Return loss > 16 dB @ DC - 20 GHz
- Mating cycles > 500
- 2, 4, 6 and 8 channel
1.6-5.6 connectors perform at 75 Ohm up to 4/12 GHz and are characterized by high mechanical and electrical stability. They are mainly used for reliable transmission of high bit-rates. IInd and IIIrd generation 1.6-5.6 connectors are intermateable and feature different coupling mechanisms for allowing male types to be connected to all female types. The screw-on coupling version provides positive, familiar mating, while the quick-lock/push-pull coupling version enables quick installation. This series complies with CECC 22240 standards.
Ürün Başarıyla Sepete Eklendi
For ensuring fast and easy connection Rosenberger RoDI® connectors comprise five contacts and a magnetic self-mating locking mechanism. They are ideally suited to diagnostic and data transfer in building services, industrial control and bus systems, even for use in harsh environments.
Ürün Başarıyla Sepete Eklendi
Rosenberger offers non-magnetic versions of standard connector interfaces including Multiport-Mini-Coax, QMA and SMP. All materials and platings are non-magnetic which is mandatory in certain environments. They are widely used, for example, by the medical industries in MRI (Magnetic Resonance Imaging) equipment as well as in aerospace and other specialized industrial applications. The non-magnetic product range includes standard coaxial connector and cable assemblies. Customized solutions are available upon request.
Ürün Başarıyla Sepete Eklendi
Rosenberger provides a variety of snap-in D-Sub coaxial and power inserts for fast, reliable mixed card edge chassis. Their small dimensions allow high packing densities as well as easy connection. A combination including power connectors is also available on request. D-Sub Coax Inserts and cable connectors 50 Ω are designed for use in mixed card edge connections in accordance to D-Sub. The maximum frequency is approximately 2 GHz. Available on request. Power Inserts meet the requirements of DIN 41626-T1 and are designed for use in mixed card edge connections in accordance to DIN 41612 or D-Sub. Contact current 10 A, 20 A, 30 A, 40 A. Available on request.
