Manyetik Olmayan Konektörler

The Rosenberger MTD® Connection System is an industry standard* Ethernet transmission system for optimized jacketed Twisted-Pair cables. Its excellent transmission and electrical performance, reduced weight, size and cost benefits have set new standards for 100 Mbps and 1 Gbps single connection Ethernet implementation in vehicles. Compared to other solutions currently available a key advantage of Rosenberger’s new connection system is the impedance-controlled transition area from cable to connector interface. Its small size in combination with several coding features allows multiple wire pairs to be placed in close proximity ensuring installation space is kept to a minimum. Furthermore, the honeycomb structure provides low crosstalk, good symmetry and can be extended modularly.

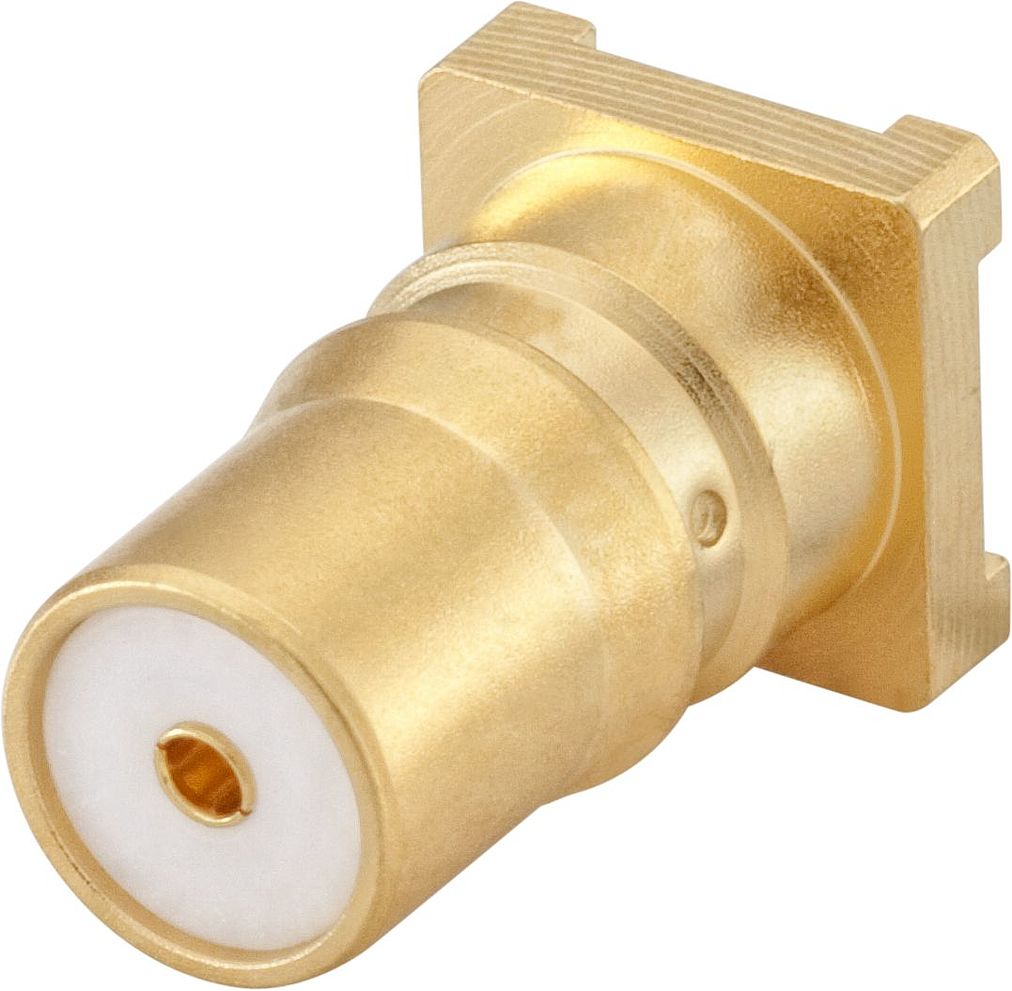

Rosenberger RPC-SP 50 Ω precision connectors are designed for applications up to 22 GHz where quick and reliable interconnects are essential. Intermateable with OSP and BMA connectors, the floating construction allows compensation for axial and radial misalignment while the innovative blind mate self-finding mechanism ensures fast, easy connection and disconnection, bringing significant time and cost reductions. Furthermore, tightening the connection requires no additional tooling. RPC-SP connectors are therefore ideal for use where space is at a premium such as in many rack and plug-in applications. The product range comprises cable, panel and PCB connectors, adaptors to other coaxial connector series, airlines as well as test & measurement accessories such as RPC-SP calibration kits, test cables or measurement equipment (open – short – load).

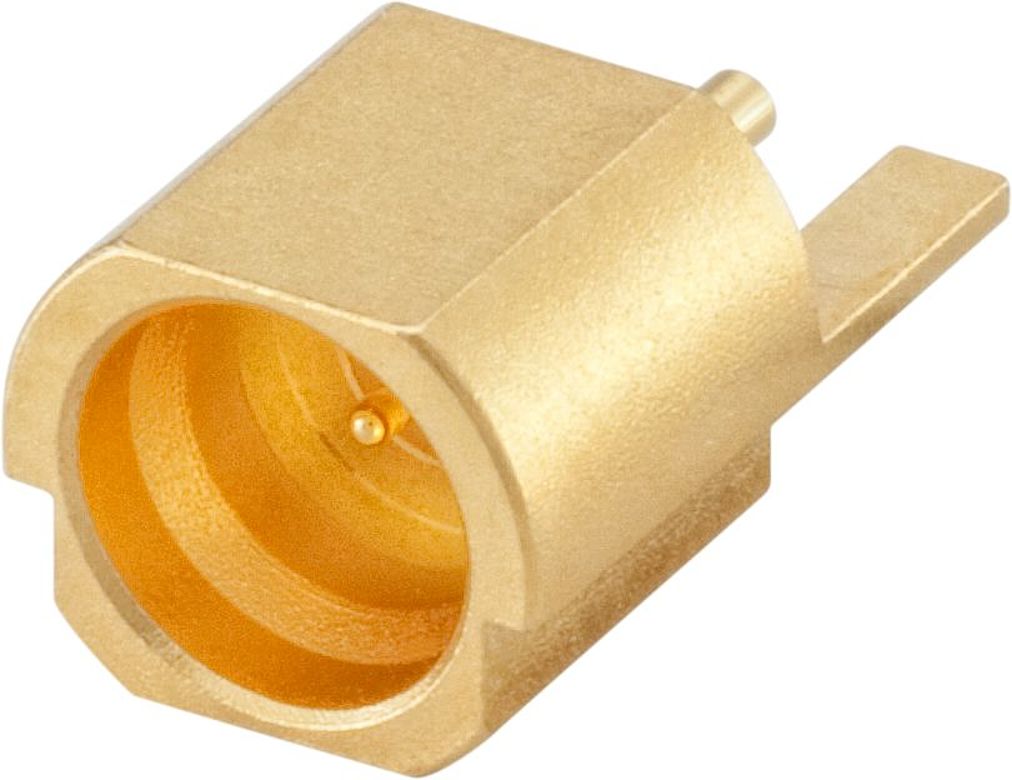

Rosenberger WSMP®PCB connectors, bullets and cable assemblies are extremely compact and capable of handling frequencies up to 100 GHz. WSMP® connectors are about 45 % smaller than standard SMP connectors for allowing high packing density. Featuring a push-on coupling mechanism and enabling a minimum board-to-board distance of 3.05 mm, they are optimized for customer-specific footprints and layout recommendations.

The Multi-Power connector for field installation from Rosenberger is unique in terms of user-friendliness. The new assembly concept combines secure and reliable connections with a fast and simple cable assembly. Within shortest time the connector can be assembled on cables with various cross-sections (2x 2.5 mm² to 2x 16 mm²) and jacket diameters (Ø 7 – 21.5 mm). This way, the connector can be flexible used for both low-power and high-power applications (up to 55 A/60 V DC). Regardless the simple assembly process, the connector ensures highest quality for outdoor use, EMI shielding and low contact resistances.
