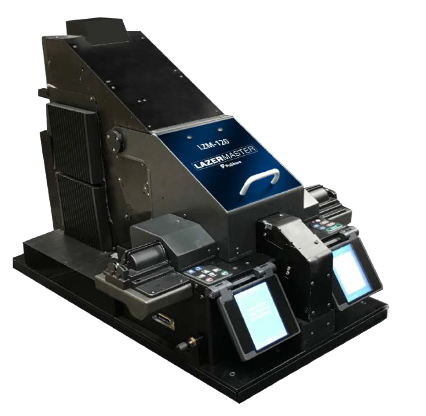

LAZERMaster™ Laser Splicing System LZM-100
Ürün Kodu 31BLX8
AFL’s LZM-100 LAZERMaster is a glass processing and splicing system that uses a CO2 laser heat source rather than electrodes, ensuring repeatable performance and low maintenance, and eliminating electrode or filament maintenance and instability. Splicing or adiabatic tapering (to create mode field adapters or pump combiners) can be performed with glass diameters of 2.3 mm or less. The high resolution optical analysis system works in conjunction with on-board firmware for fully automatic splicing, tapering and other glass shaping processes.
- CO2 laser eliminates electrode or filament maintenance, provides extremely stable operation and greatly reduces the need for periodic calibration
- Automated laser beam diameter control to fine tune the size of the heating area
- Redundant automated laser safety features
- 2.3 mm maximum fiber diameter (larger fibers may be spliced manually)
Specification Sheet
The APM-101 perform all the steps required to prepare optical fibers before splicing – automatically and with high consistency. This includes stripping the fiber without degrading fiber quality, cleaning fiber with alcohol to remove coating residue, and cleaving consistently at a right angle to the fiber axis. The entire process is complete in as little as 23 seconds.
Ürün Başarıyla Sepete Eklendi
The FSM-100M offer a host of innovative technologies to address the rapidly expanding splicing needs of factory, manufacturing, laboratory and R&D applications. These capabilities of these model's will revolutionize the way users will splice various types of specialty fibers: LDF, low contrast PM, PCF structured, etc.
Ürün Başarıyla Sepete Eklendi
The ReCoater 2 is used to restore the protective coating on acrylate coated optical fibers in high strength applications. Molds are available in different sizes to cover a range of coating diameters and can easily be exchanged by the operator with no realignment required. Custom molds are available upon request.
Ürün Başarıyla Sepete Eklendi
The CleaveMeterTM interferometer system is designed for inspecting the surface quality, flatness and perpendicularity of cleaved and polished optical fibers. Complementing the NYFORS AutoCleaverTM line of automatic fiber cleavers with process documentation and optimization functionality, it allows every cleave to be individually inspected and evaluated even in high volume production environments.
