Zinc/Zn
Connectors & Adaptors

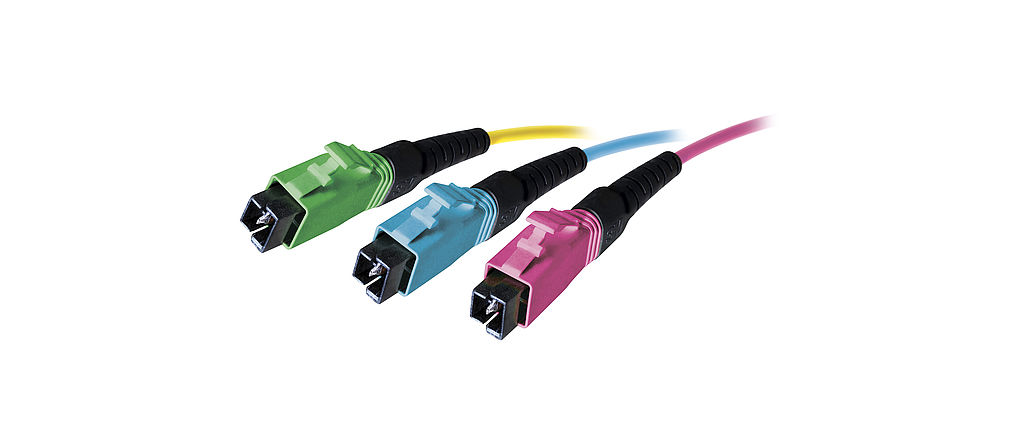

3M™ EBO Latch Connector
Product code 1SFPDİ
3M™ Expanded Beam Optical (EBO) Latch Connector for PreCONNECT® solutions The best of both worlds: Singlemode and expanded beam connectors Reliable connectors that can be repeatedly plugged in and unplugged while still maintaining constant performance over all fibers – that is what 3M™ EBO has to offer. The innovative yet extremely simple structure of this expanded beam plug connector permits repeated plugging and unplugging with no loss of performance and no need to clean the end faces. What is more, it is all but insensitive to vibrations and dust. Because the end faces of the fibers do not physically touch one another, the risk of chipping, scratches and damage is eliminated, while simultaneously guaranteeing outstanding IL and RL performance. In contrast to earlier expanded beam methods, the 3M™ EBO Expanded Beam Latch connector uses a new mirror reflex collimation lens in order to expand the light path and overcome the effect of surface particles on the IL and RL performance. Tiny deviations in the fiber alignment in plug connections (lateral offset) are all but eliminated. This new technology, which has been patented by 3M™, not only permits multimode applications but also makes it possible to use the expanded beam for singlemode applications – something that was not possible in the past, in particular in the case of multiple fibers.
Features
- The connector developed by 3M™ is less sensitive to dirt, so that multiple matings are possible with minimal cleaning effort
- 3M™ EBO offers outstanding attenuation values for singlemode applications - insert loss: <0.70 dB and return loss: >55 dB
- The 3M™ EBO is equipped with a ferrule supporting 12 singlemode or multimode fibers
Specification Sheet
Rosenberger provides a wide range of Multiport Mini-Coax connectors and cable assemblies for addressing the challenging technological demands of the semiconductor test equipment industry. For both 20 and 40 GHz applications, the extensive standard range comprises PCB connectors, purpose-designed plastic-housings and pre-assembled cable assembly sets. This ensures cable assembly configurations that precisely meet customer-specific test requirements. Board-to-board connections can be applied in very limited spaces with the advantages of coaxial shielding while a handy extraction tool ensures mating and demating can be done quickly and easily onsite. The cost-effective injection moulded housings for connection to one side of the PCB are available with 2, 4, 6 or 8 channels and allow the mixing of straight and right angle Mini-Coax cable pairs. Interface dimensions are based on Rosenberger standard Mini-Coax connectors.
Item Successfully Added to Cart
Rosenberger RPC-1.85 precision connectors – with 50 Ω impedance and 1.85 mm outer conductor diameter – are designed for test & measurement applications up to 70 GHz. Delivering outstanding reliability and repeatability performance they are intermateable with common 1.85 mm series and V connectors as well as with RPC-2.40 connectors. This comprehensive product range is suitable for semi-rigid cables and microwave components and includes cable, panel and PCB connectors, adaptors and test & measurement accessories – including RPC-1.85 calibration kits, cables assemblies, measurement equipment, attenuators, sliding loads and airlines.
Item Successfully Added to Cart
Rosenberger WSMP®PCB connectors, bullets and cable assemblies are extremely compact and capable of handling frequencies up to 100 GHz. WSMP® connectors are about 45 % smaller than standard SMP connectors for allowing high packing density. Featuring a push-on coupling mechanism and enabling a minimum board-to-board distance of 3.05 mm, they are optimized for customer-specific footprints and layout recommendations.
