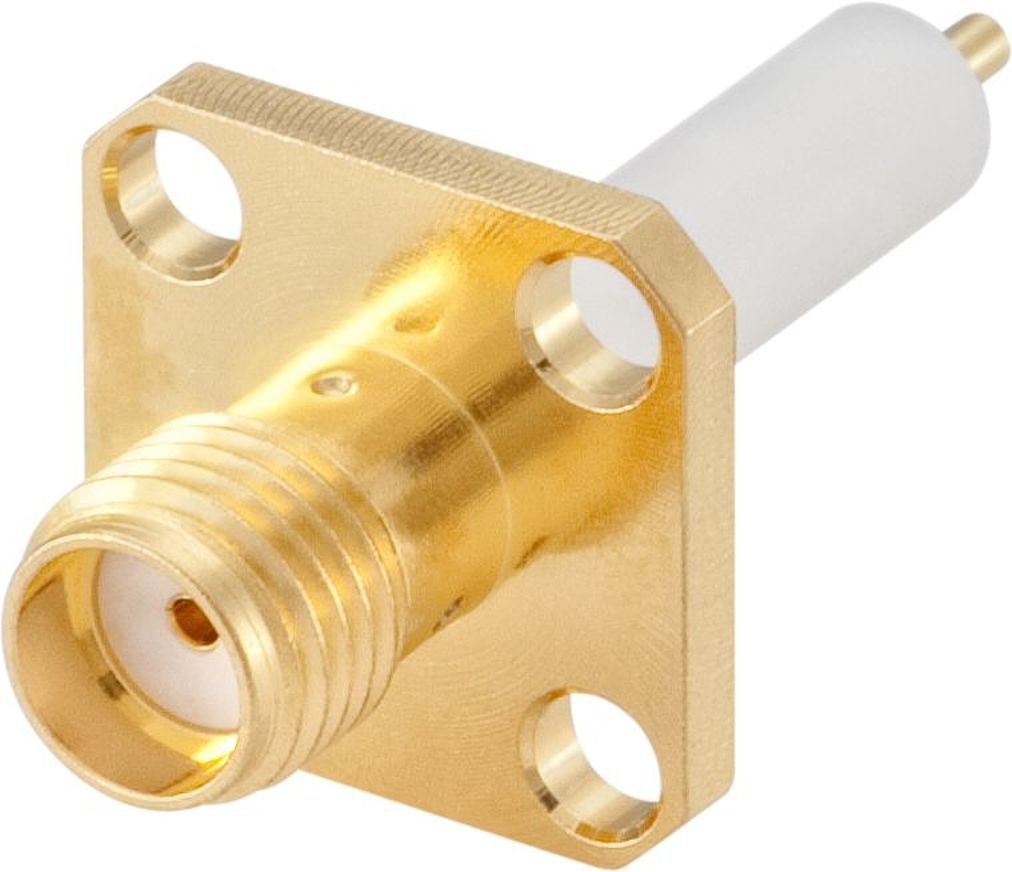

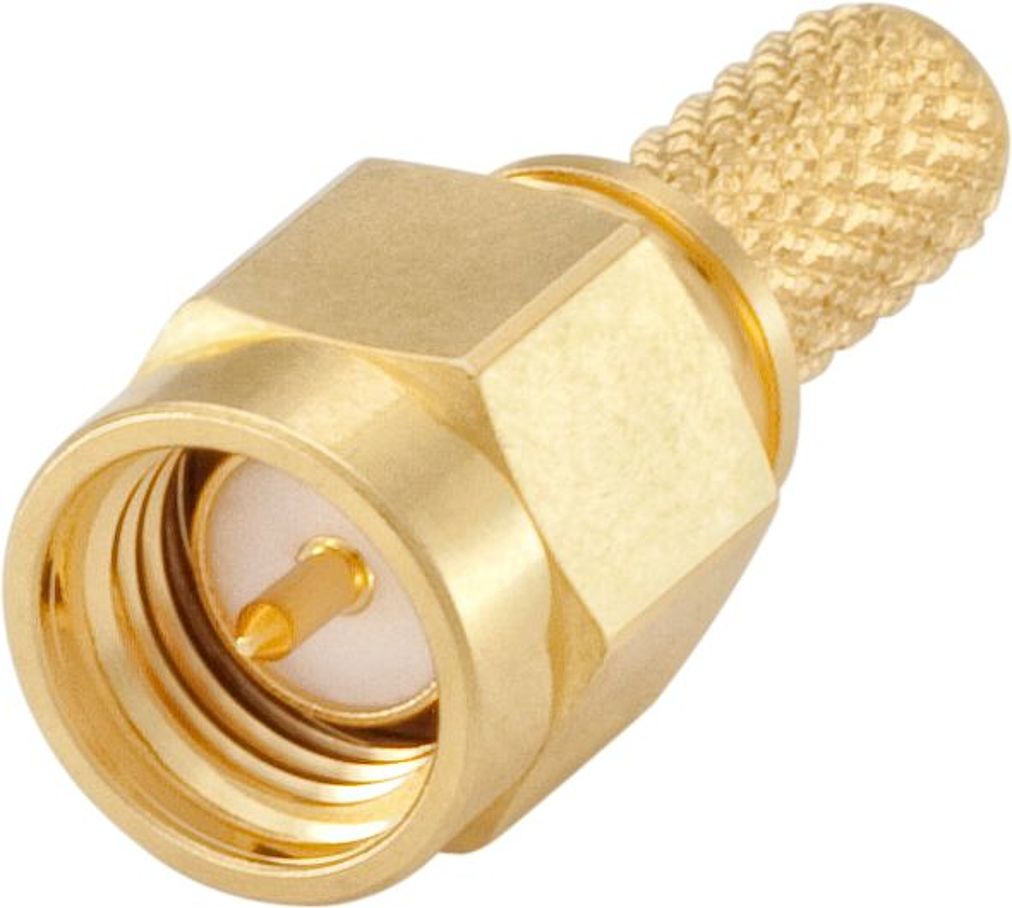

SMA

Rosenberger’s new EBC® (Efficient Board Connector) series is the ideal 5G board-to-board and board-to-module RF interconnect solution for active MIMO (Multiple Input Multiple Output) antennas and radios. Outstanding performance, low cost design and high mechanical stability make EBC® the perfect future-proof product for 5G radio interconnections. For applications up to 8 GHz, EBC® connectors fulfill the challenging requirements caused by the exponential data volumes increases in future 5G networks. Essential characteristics include extremely small dimensions, radial and axial misalignments, different holding forces, minimum board-to-board distances, and fast and cost-effective assembly design. A key mechanical design feature is the locating side which is integrated in the bullet. One side has a smooth bore, while the other has a limited-detent design. The single PCB coupler provides a consistent footprint with preloaded outer contacts for ensuring contact optimization, the push/snap-on locking mechanism allows fast and easy disconnection.

Rosenberger snap-in Mini-Coax inserts for Metral-chassis card edge connections offer modular high packing densities due to their extremely small size. As well as Multiport Mini-Coax are available in multiple 2, 4, 6 and 8 channel variants. Further benefits include fast, reliable connection, high data transmission rates, and superior electrical and mechanical stability.

The Rosenberger MagneticUSB is an innovative connection series. All standard USB connectors can be very easily connected to computer or mobile devices thanks to intelligent magnet technology. It can also be disconnected very quickly for optimally protecting USB connections.

UHF* coaxial connectors with geared screw locking frontal interlocking teeth and without defined impedance are intended for very low frequency applications up to 300 MHz. They are intermateable with “banana” connectors. *UHF = Ultra High Frequency, when developed in the 1930s, in fact today even wrong.
