Zinc/Zn
Rf Products & Telecom Towers
EBC®
Product code NQJMGI

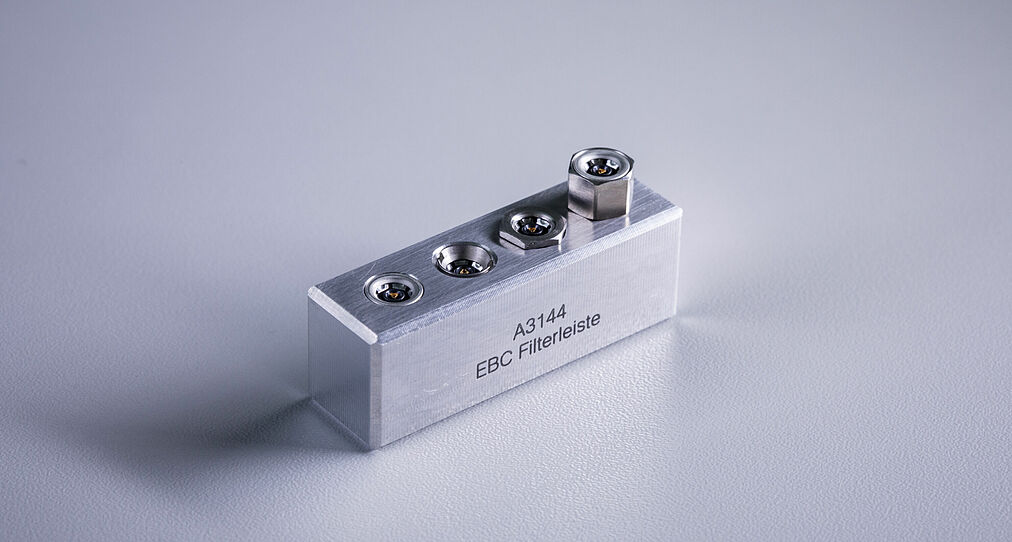

Rosenberger’s new EBC® (Efficient Board Connector) series is the ideal 5G board-to-board and board-to-module RF interconnect solution for active MIMO (Multiple Input Multiple Output) antennas and radios. Outstanding performance, low cost design and high mechanical stability make EBC® the perfect future-proof product for 5G radio interconnections. For applications up to 8 GHz, EBC® connectors fulfill the challenging requirements caused by the exponential data volumes increases in future 5G networks. Essential characteristics include extremely small dimensions, radial and axial misalignments, different holding forces, minimum board-to-board distances, and fast and cost-effective assembly design. A key mechanical design feature is the locating side which is integrated in the bullet. One side has a smooth bore, while the other has a limited-detent design. The single PCB coupler provides a consistent footprint with preloaded outer contacts for ensuring contact optimization, the push/snap-on locking mechanism allows fast and easy disconnection.
- Impedance 50 Ω
- Interface according to Rosenberger EBC®
- Frequency range DC up to 8 GHz
- Return loss ≥ 26 dB @ DC to 6 GHz
- Minimum board-to-board distance 12 mm
- Pitch > 6.8 mm
- Axial misalignment ± 0.8 mm
- Radial misalignment 4°
- Mating cycles ≥ 100
- Push/Snap-on locking mechanism
- Different detent types at bullet: smooth bore and limited detent
1.6-5.6 connectors perform at 75 Ohm up to 4/12 GHz and are characterized by high mechanical and electrical stability. They are mainly used for reliable transmission of high bit-rates. IInd and IIIrd generation 1.6-5.6 connectors are intermateable and feature different coupling mechanisms for allowing male types to be connected to all female types. The screw-on coupling version provides positive, familiar mating, while the quick-lock/push-pull coupling version enables quick installation. This series complies with CECC 22240 standards.
Item Successfully Added to Cart

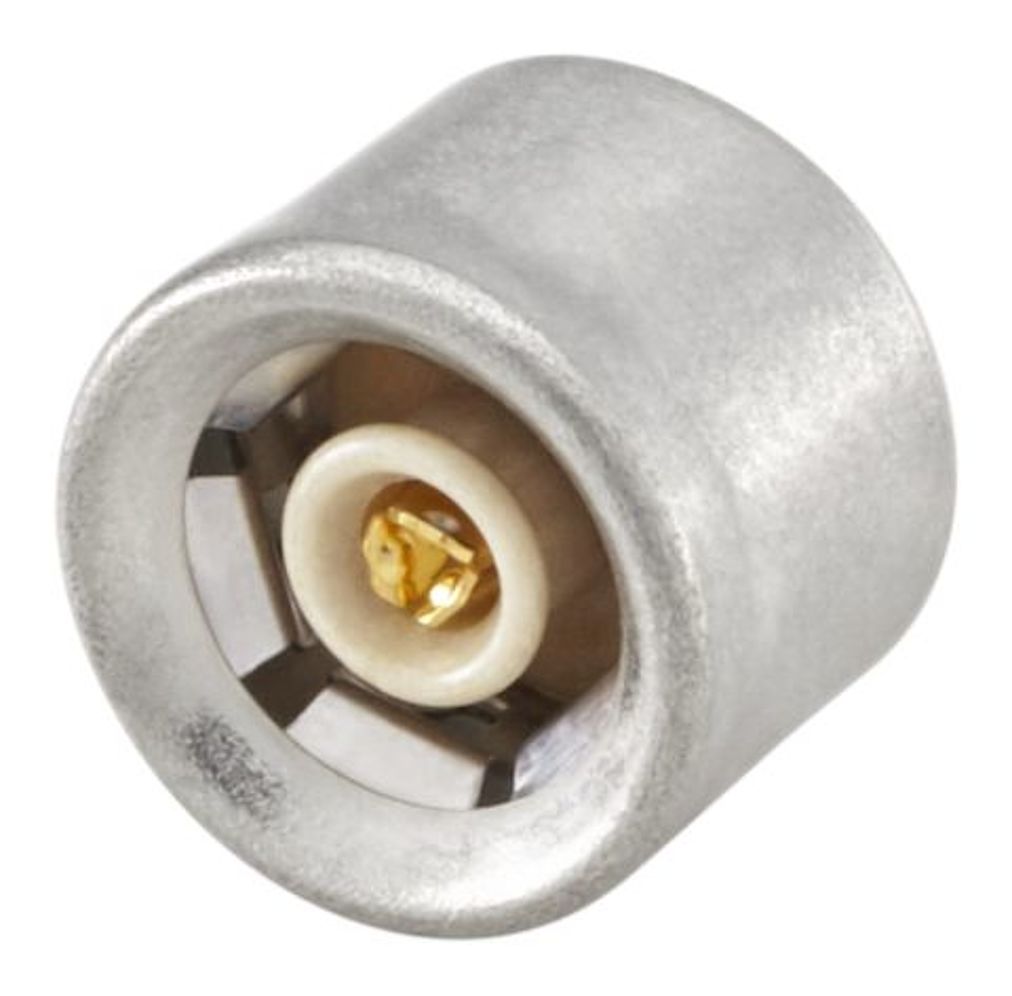

Rosenberger Mini-SMP connectors are extremely small coaxial connectors, approximately 70% of standard SMP size. They are designed for applications up to 65 GHz and mainly for high-speed signal transmission (typically 10 or 40 Gbps). Plugs are available as smooth bore-versions – for plug-in technology and backplane applications – and as vibration resistant full detent types, for the highest mechanical loads such as those found in aerospace engineering. Mini-SMP subminiature connectors are well-proven, offering a high level of flexibility in alignment tolerances and for simplifying the whole production process. Rosenberger Mini-SMP coaxial connectors are mateable with common Mini-SMP connectors as specified by MIL-STD-348A, Fig. 328, as well as GPPO™ (Gilbert Engineering Co., Inc.) and SSMP™ (Carlisle Interconnect Technologies) series. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and also in blisters.
Item Successfully Added to Cart

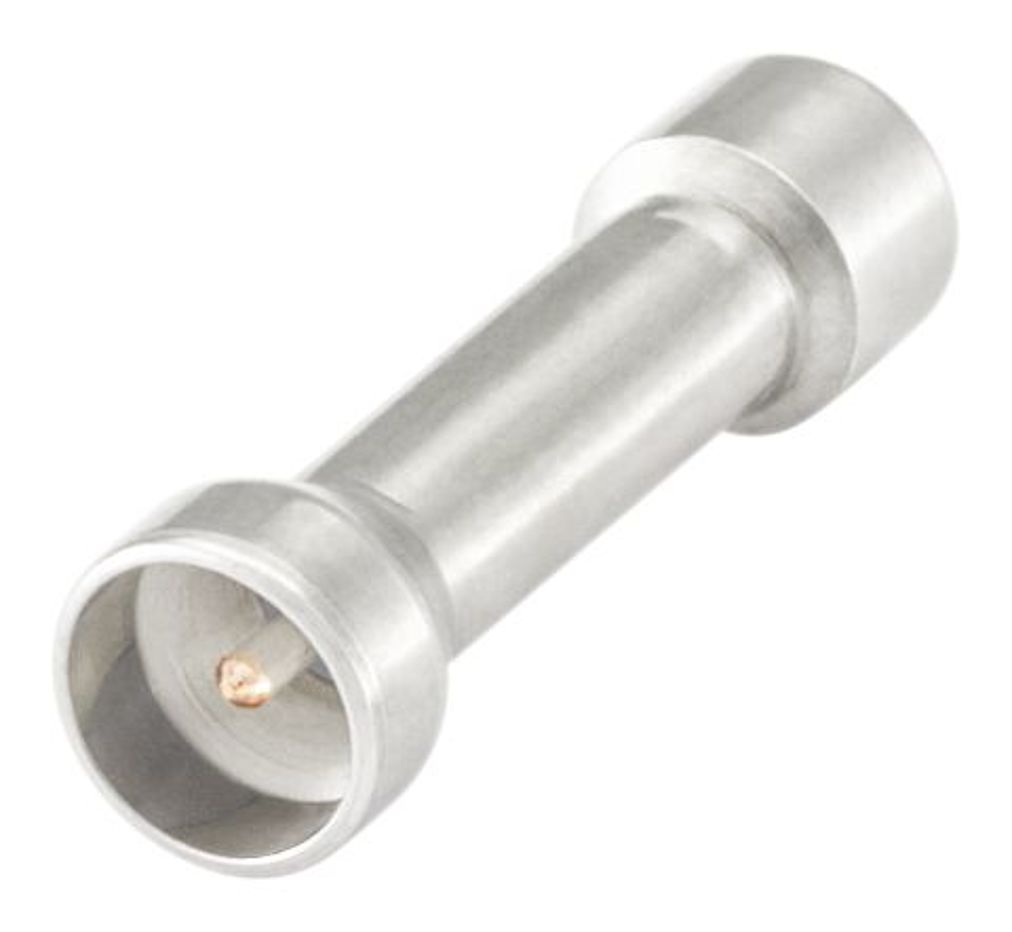

Rosenberger’s comprehensive portfolio of cost-effective, high-quality and precision products enables a broad spectrum of industrial test & measurement applications for active or passive devices. While several types of network analyzers (NAs) have become increasingly important in the development of microwave circuits and systems in industrial measurement applications, vector network analyzers (VNAs) are particularly useful. This is due to their calibration capability and the ability to measure more parameters. Rosenberger develops and offers a wide range of metrology kits for a variety of standard and precision interfaces when performing calibration, verification and traceability, as well as gauges and gauge kits for vector network analyzers (VNAs).
