Zinc/Zn
Optical Fibers
FutureGuide®-SR15E-200 NEW ITU-T G.657.A1 (+ 200µm Coating Diameter)
Product code RATM4G
Optical fiber networks in urban areas demand more effective utilization of available space by installing high density and more fiber-count cables underground. Especially, such demand is increasing in access network. Employing our innovative fiber coating technology in FutureGuide®-SR15E we launch a new ITU-T G.657.A1 fiber with 200μm coating diameter named FutureGuide®-SR15E-200. The fiber has drastically reduced coating diameter, while keeping microbend characteristics equivalent to conventional fibers. The 200μm coating diameter with tolerable microbend performance allows around 40% reduction of cable cross-section area. This new fiber strongly contributes to not only more effective utilization of available space but also saves costs of manufacture, transportation and installation of cables.
- Reduced coating diameter down to 200μm with tolerable microbend performance

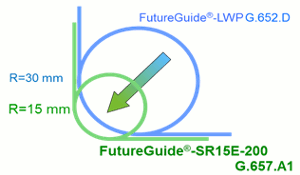

- Improved macrobend performance complying with ITU-T G.657.A1
- 12 fiber mass fusion splicing
- Zero(low)-water peak attenuation complying with ITU-T G.652.D
Specifications
Multi Mode Fiber with 50µm of Core Diameter (OM-3) For 10 Gigabit Ethernet Optical Transmission for LAN in Offices and PremisesFuture: Full complying with 10Gbase-SR,SW for IEEE 802.3ae. Link length for 10Gigabit Ethernet is 300m.
Item Successfully Added to Cart
Fujikura PANDA fibers have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector.
Item Successfully Added to Cart
Fujikura PANDA fibers have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector.
Item Successfully Added to Cart
Fujikura's image fiber is silica based coherent image fiber. Numbers of silica cores are together with melted silica cladding, which composes a multi-core optical fiber. Those fibers are used for the image transmission of fiber scopes applications. The products described in the catalog are for VIS region applications. Please contact us for customized products for UV or NIR region applications.
