Optical Spectrum Analyzers

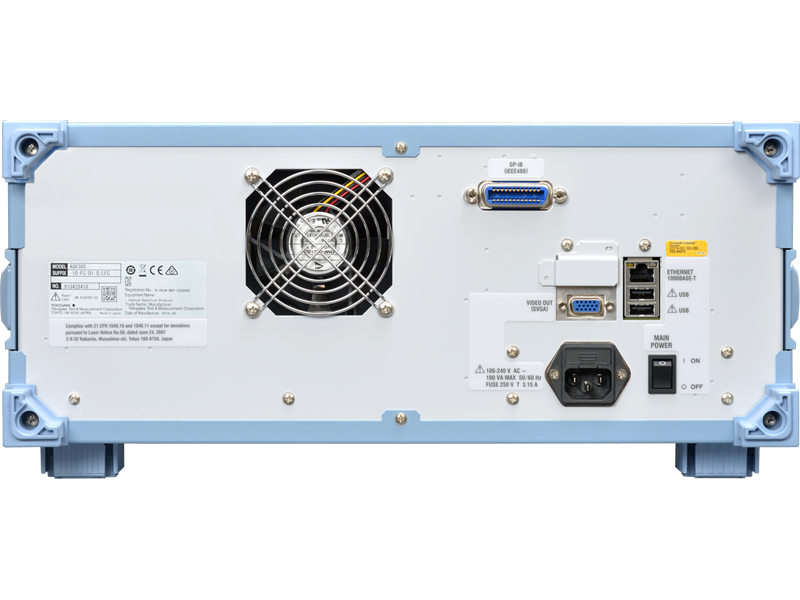

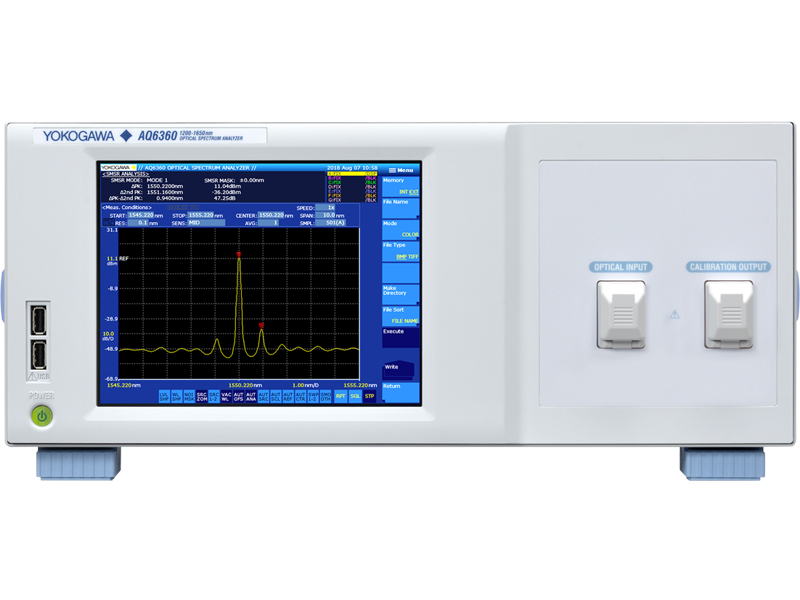

AQ6360 Telecom Production Optical Spectrum Analyzer 1200 - 1650 nm
Product code D8ZZİD
The AQ6360 is the fastest optical spectrum analyzer for optical device manufacturing offered by Yokogawa. It is a cost-effective optical spectrum analyzer ideal for industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers. The AQ6360 features a wavelength range of 1200 to 1650 nm for ideal manufacturing test performance. Its free space optical input structure design allows for guaranteed high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analysis functions and Ethernet and GPIB remote interfaces.
Ideal performance for manufacturing tests
The AQ6360 satisfies the typical measurement needs of industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers.
Wavelength range: 1200 to 1650 nm
Wavelength resolution: 0.1 to 2 nm
High wavelength accuracy: ±0.02 nm
High dynamic range: 55 dB
Wide measurement range: +20 to −80 dBm
he AQ6370 Viewer is a package of PC application software for PC-based analysis and measurement with the AQ6370 series Optical Spectrum Analyzer. Applicable for AQ6360, AQ6370, AQ6370B/C/D, AQ6373, AQ6373B, AQ6374, AQ6375, AQ6375B, AQ6376 and AQ6377.
Item Successfully Added to Cart
High Performance LONG WAVELENGTH The AQ6375E covers not only telecommunication wavelengths, but also the SWIR region which is often used for environmental sensing and medical applications. ・Lineup of 3 models [Standard, Extended and Limited] ・Covers wavelengths 1200 to 2400 nm [Standard, and Limited] 1000 to 2500 nm [Extended ]
Item Successfully Added to Cart
MWIR WAVELENGTH with internal gas purge and cut filter The AQ6376E is the latest version of our bench-top optical spectrum analyzer extending the wavelength coverage well beyond the NIR range of our previous models into the MWIR region from 1500 to 3400 nm. Popular applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx), and hydrocarbon gas (CxHy) for environmental studies. Similar to the long wavelength model, it offers the added benefits of gas purging input ports / output ports, a built-in cut filter for high order diffracted light, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.
Item Successfully Added to Cart
The AQ6370E is the new model in Yokogawa's most popular telecom class OSA. With a versatile wavelength range of 600 nm to 1700 nm, it is ideal for both telecom and general purpose applications. The unique free-space input design allows him to test both DWDM-class single-mode and VCSEL-sourced multimode fibers in one single model. The new high-speed measurement mode, high close-in dynamic range mode, touch panel, and APP function greatly improve measurement efficiency. Wavelength range：600 to 1700 nm Wavelength accuracy：±0.008 nm typ. Wavelength resolution：0.02 nm Close-in Dynamic range：78 dB typ. Level range：+20 to -90 dBm Up to 2x faster measurement: SMSR mode Sharper spectrum measurement: HCDR mode Large touchscreen LCD
