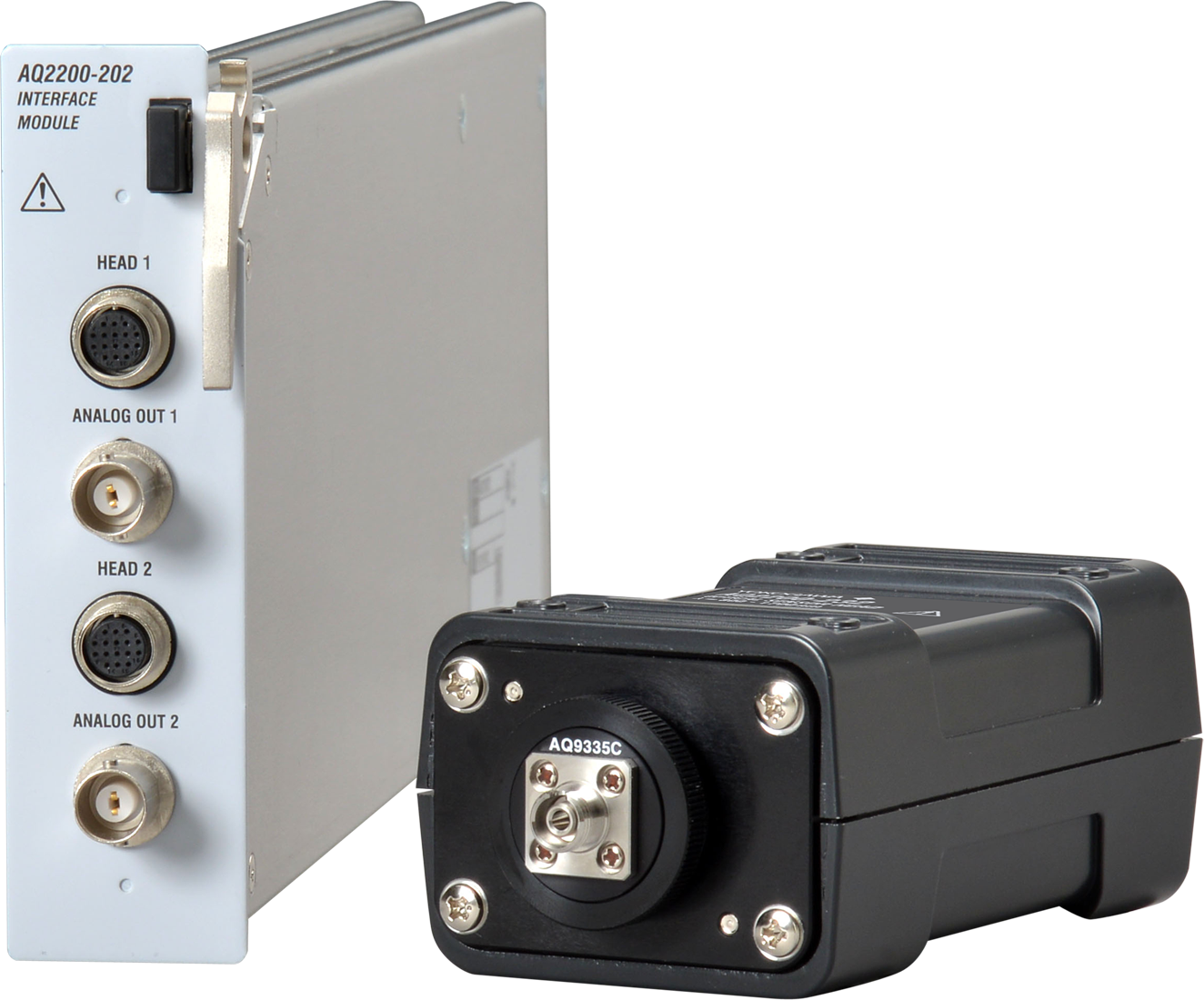

AQ2200-232 Optical Sensor Head (Large diameter detector, 800 to 1700 nm), AQ2200-242 Optical Sensor Head (Large diameter detector, 400 to 1100 nm), AQ2200-202 Interface Module (2-channels)

The AQ6370D is the latest iteration of the most popular Telecom class OSA from Yokogawa. It offers a versatile wavelength range of 600 nm to 1700 nm ideally suited for both Telecommunications and general purpose applications. The unique free space input design allows testing of both DWDM class singlemode and VCSEL sourced multi-mode fibers in one single model. Newly added functions include data logging, gate sampling,resolution calibration, an advanced marker function and an enhanced auto-sweep mode.

AQ7933 is application software to display and analyze the waveform data measured on a YOKOGAWA OTDR and create and output reports of analysis results on a PC. It displays up to 20 waveforms at the same time and creates a work report in 3 steps. The software integrates applications that the previous software doesn’t have, such as the OTDR remote controller, and assists field engineers in their waveform confirmation work.

The AQ2200-312 is a variable optical attenuation for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.

Light Sources and Optical Power meter in one unit. Designed for field operations with a 5.7" screen, yet weighing under 3.3lbs / 1.5kg, the AQ1100 provides a USB port for data storage and optional PING test function and Visible Fault Light. It can be configured for standard power measurements, high power measurements or FTTH with 1490/1550nm parallel measurements.
