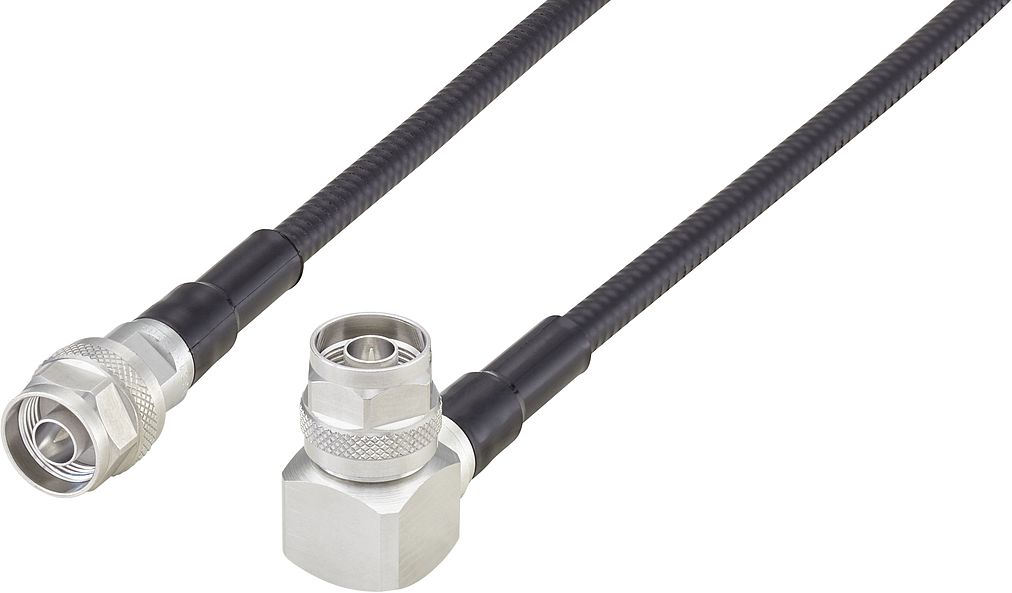

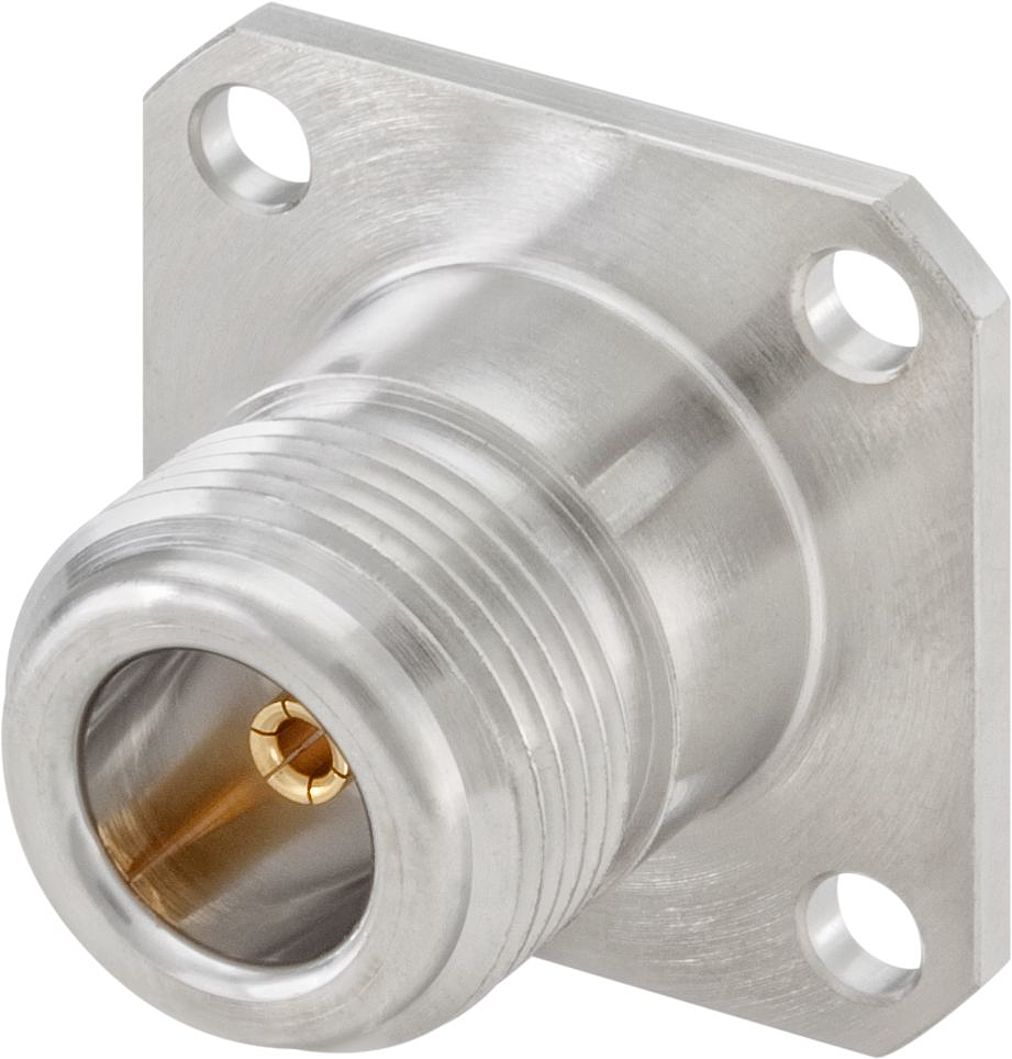

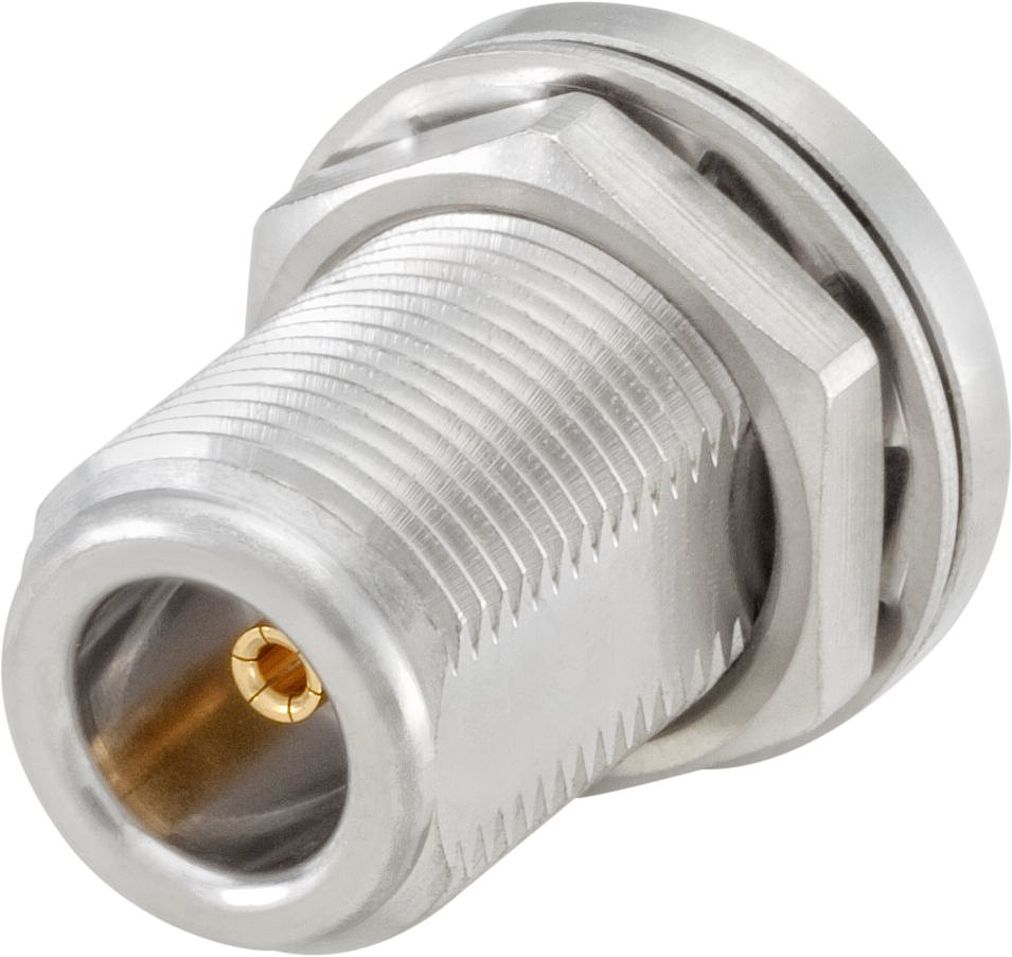

N 50 ? / 75 ?

Rosenberger provides a variety of DIN 41626 coaxial and power inserts. Their small dimensions allow high packing densities with easy mixed card edge connection via the snap-in method.

RosenbergerHSD® is a homogeneous impedance-controlled interconnect system which directly addresses the high-speed data, low-voltage requirements of real-time automotive industry applications. Extremely compact and durable this 100 Ohm fully shielded interconnect system utilizes shielded twisted quad cables and features mechanical keying and latching for high connection retention, as well as coding to avoid misuse. Furthermore, these precision manufactured RosenbergerHSD®SF variants are ideally suited for process-safe and fully automated assembly by harness makers, facilitating a significant reduction in costs. Its high data throughput performance while also preventing interference from crosstalk and external sources makes the RosenbergerHSD® cable and PCB connector system the perfect choice for LVDS cameras, USB connections and IEEE 1394 applications. In addition, it is well-suited to many other applications including those found in digital infotainment electronics and digital symmetrical networks – even radio base stations.

Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.

The Multi-Power connector for field installation from Rosenberger is unique in terms of user-friendliness. The new assembly concept combines secure and reliable connections with a fast and simple cable assembly. Within shortest time the connector can be assembled on cables with various cross-sections (2x 2.5 mm² to 2x 16 mm²) and jacket diameters (Ø 7 – 21.5 mm). This way, the connector can be flexible used for both low-power and high-power applications (up to 55 A/60 V DC). Regardless the simple assembly process, the connector ensures highest quality for outdoor use, EMI shielding and low contact resistances.
