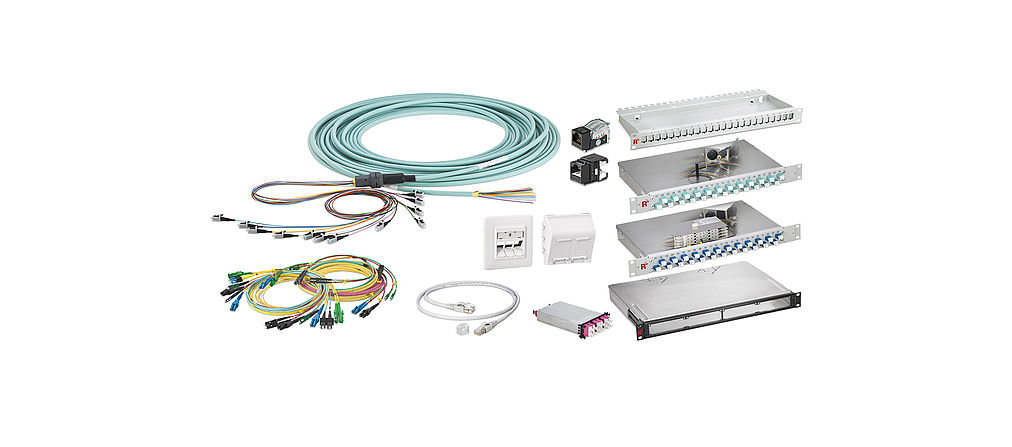

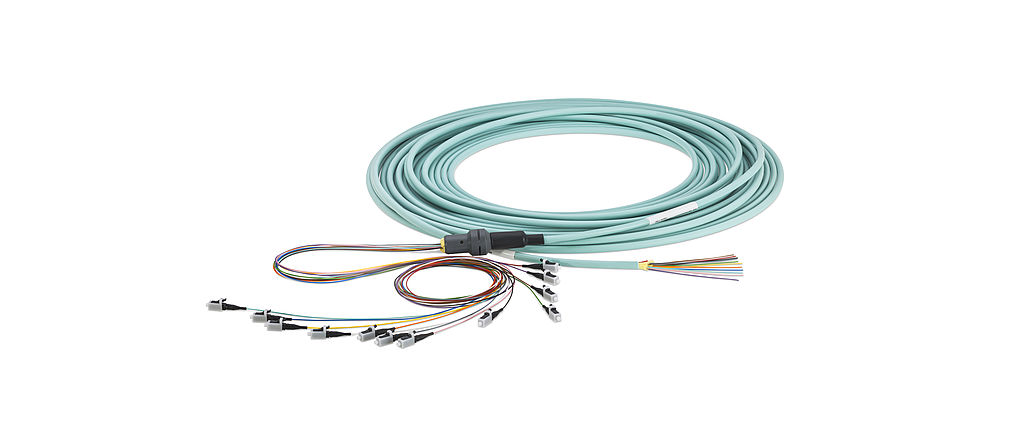

Single-sided pre-assembled LAN cabling system

1.0-2.3 (DIN 47297) connectors perform at 50 Ohm up to 10 GHz and are characterized by high mechanical and electrical stability. They are 40 % smaller than the 1.6-5.6 series. The connectors offer various coupling mechanisms where male types can be connected with any female type. The quick-lock/push-pull locking/coupling version allows quick installation. This series complies with CECC 22230 and DIN 47297.

Rosenberger Mini-SMP connectors are extremely small coaxial connectors, approximately 70% of standard SMP size. They are designed for applications up to 65 GHz and mainly for high-speed signal transmission (typically 10 or 40 Gbps). Plugs are available as smooth bore-versions – for plug-in technology and backplane applications – and as vibration resistant full detent types, for the highest mechanical loads such as those found in aerospace engineering. Mini-SMP subminiature connectors are well-proven, offering a high level of flexibility in alignment tolerances and for simplifying the whole production process. Rosenberger Mini-SMP coaxial connectors are mateable with common Mini-SMP connectors as specified by MIL-STD-348A, Fig. 328, as well as GPPO™ (Gilbert Engineering Co., Inc.) and SSMP™ (Carlisle Interconnect Technologies) series. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and also in blisters.

Rosenberger’s new RPC-1.35* precision connector series meets the growing demand for precision, high-performance RF-connections up to 90 GHz. The range addresses the expanding market for 5G, industrial sensors in the E-Band, millimeter wave sensors for self-driving vehicles, WLAN IEEE 802.11ax and 802.11ay. RPC-1.35 connectors offer a highly robust mechanical design, minimum 3000 mating cycles, high connector repeatability, and maximum return loss values – ideal for ensuring RF measurements in the E-Band without delays. The product portfolio covers semi-rigid and flexible cable assemblies, PCB connectors, test PCBs, cable connectors, in-series and inter-series adaptors, test ports, floating and waveguide-to-coaxial adaptors as well as gauge and calibration kits. *A working group, comprising PTB (Physikalisch Technische Bundesanstalt), Rosenberger, Rohde & Schwarz and Spinner, designed the new 1.35 mm connector to close the gap between 1.85 mm and 1.00 mm connectors. The interface standardization is in progress.

Rosenberger’s comprehensive portfolio of cost-effective, high-quality and precision products enables a broad spectrum of industrial test & measurement applications for active or passive devices. While several types of network analyzers (NAs) have become increasingly important in the development of microwave circuits and systems in industrial measurement applications, vector network analyzers (VNAs) are particularly useful. This is due to their calibration capability and the ability to measure more parameters. Rosenberger develops and offers a wide range of metrology kits for a variety of standard and precision interfaces when performing calibration, verification and traceability, as well as gauges and gauge kits for vector network analyzers (VNAs).
