Test Port Cables & Adaptors

Rosenberger H-MTD® is a 360° fully shielded differential connector system for Ethernet applications. The newly developed system has successfully combined high-performance data transmission, of up to 15 GHz or 20 Gbps, in a compact yet robust automotive grade housing. Apart from ensuring high-bitrate data transmission, savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols. Among others, this makes the Rosenberger H-MTD® highly suited for use by those designing solutions for the automotive industries.

The Rosenberger MagneticUSB is an innovative connection series. All standard USB connectors can be very easily connected to computer or mobile devices thanks to intelligent magnet technology. It can also be disconnected very quickly for optimally protecting USB connections.

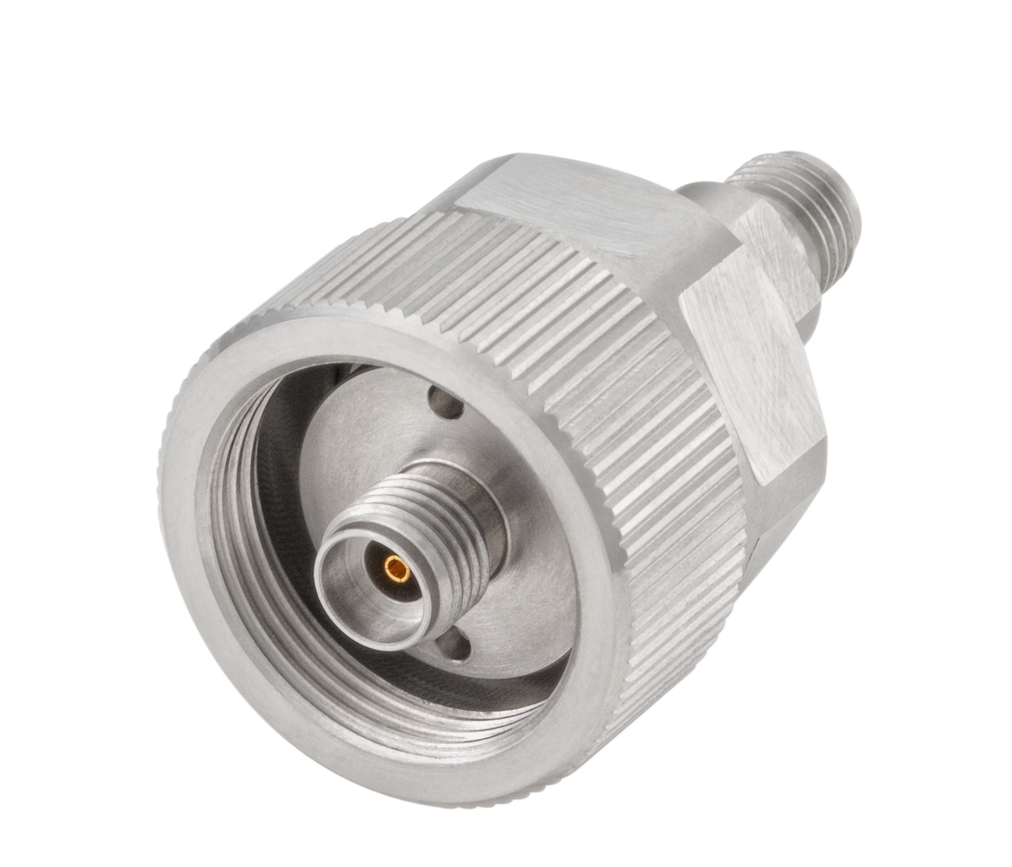

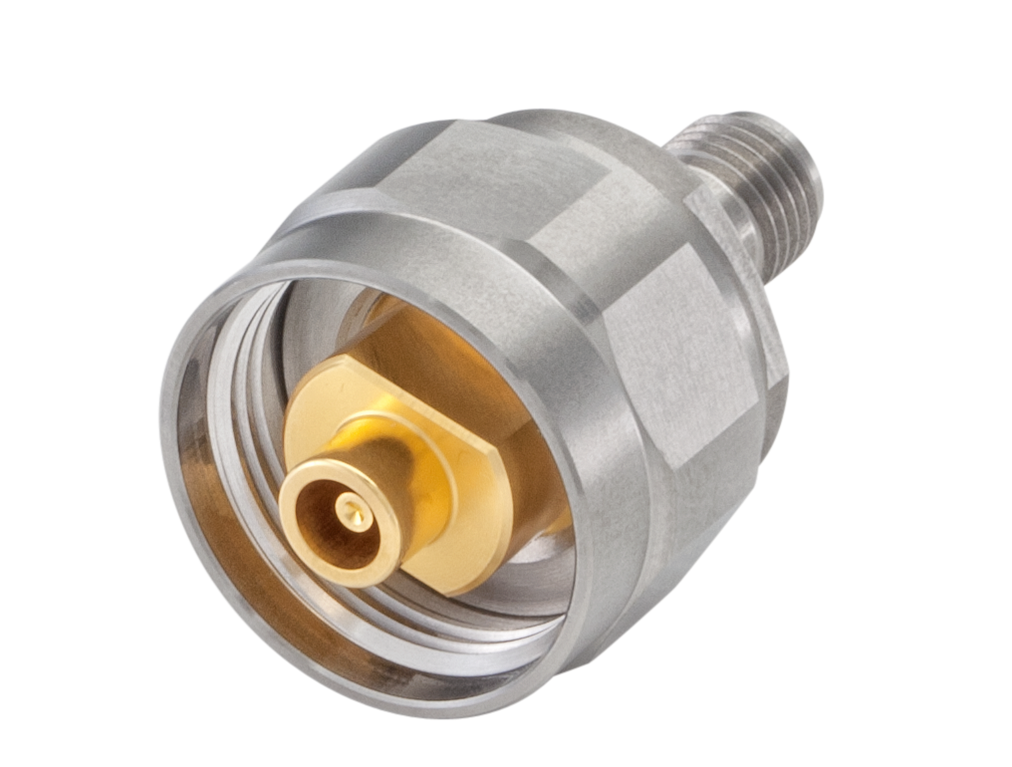

The Rosenberger RPC-SL series are interchangeable port connector systems for use with test equipment where test ports are frequently mated and re-mated. Under such heavy usage, Rosenberger RPC-SL interchangeable port connectors allow the equipment/device interface to be fully protected from potential damage, avoiding the risk of costly repairs. The RPC-SL port connector includes a panel mounting half and a sexless interface which features two spring-loaded butt contacts. This ensures no wear occurs during mating and eliminates the possibility of accidental damage from mismatching of connector halves. Furthermore, the interface between the panel mount and the adaptor is slotted, preventing the mating faces from rotating and possible damage. The RPC-SL portfolio offers both 26.5 GHz and 40 GHz versions. While adaptors can be interchanged and are available in different connector series, the connector heads in these two ranges are not compatible and can only be used with their own system.

Rosenberger’s High-Voltage Test & Measurement Solutions deliver deep insights into the EMC behaviors of high-voltage Automotive Traction Networks. Using our powerful HV measurement coupler, dedicated calibration software and calibration kits, EMC experts can perform RF voltage and current reliability calculations with absolute precision. HPK Measurement Coupler The newly developed HV Measurement Coupler for HPK series from Rosenberger enables a minimally invasive testing method for measuring the reliability of RF voltages and currents. In conjunction with a dedicated calibration process, patented algorithms accurately calculate the RF currents and voltages in the calibration reference plane. Furthermore, due to the minimal invasion techniques deployed by the coupler there is no risk of impairment to harness performance when under test. The watertight and robust design also means testing can be carried out under any environmental conditions. HPK Calibration Kit Although the HPK measurement coupler includes calibration data, an optional HPK calibration kit is also available. Combined with the RCTD software it enables customers to manage their own calibration requirements themselves. A set of all necessary calibration standards is provided and a description for the acquisition of calibration files is included in the RCTD user manual. Rosenberger recommends 12-monthly calibration intervals and offers a recalibration service to HPK coupler customers if required. RCTD Software Rosenberger Calibrated Time Domain Software (RCTD) was developed to enhance EMC-related, automotive high-voltage measurement capabilities. Within the RCTD Software, the time domain data captured by an oscilloscope using the high-voltage coupler is post-processed to calculate high frequency currents and voltages at the given calibration plane within the high-voltage power train. Therefore, calibration data is created and taken into account before measurement occurs. Delivered on a USB-stick in a sturdy wooden box, the RCTD Software includes the functions to create calibration data and post process the measurement data on a PC or directly on LeCroy HDO oscilloscopes for real-time evaluation. The software can be also used for any other directional coupler.
